Product Code: 10-075

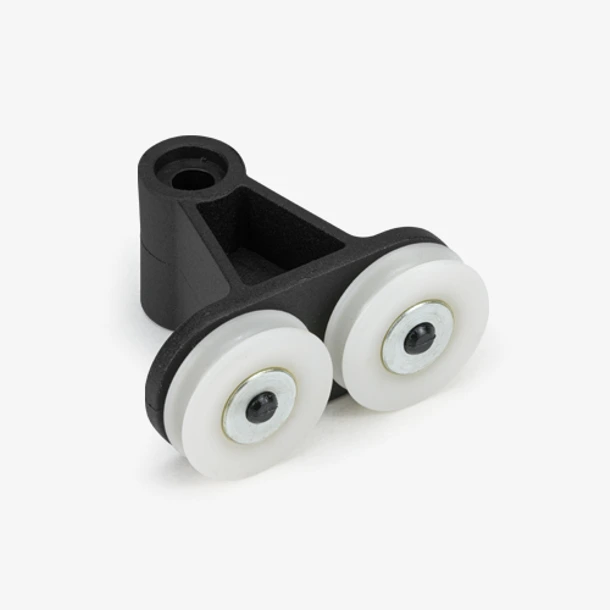

Shower Door Roller Assembly, Lateral Angle Door

$17.59

Shower Door Roller Assembly, Lateral Angle Door Image

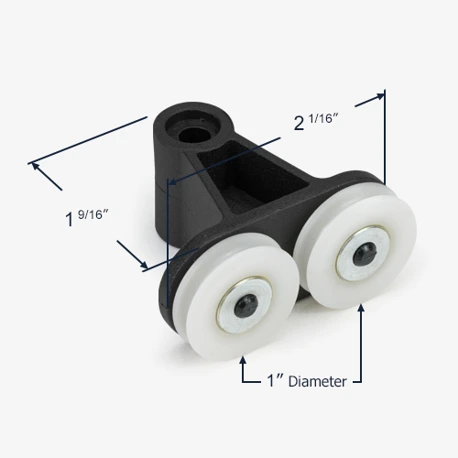

Dimensions for 10-075

Product Description

Replacement lateral roller assembly for an angled corner shower door with framing. The ball bearing, concave wheels measures 1" in diameter. Sold individually.

Helpful Tip!

This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.

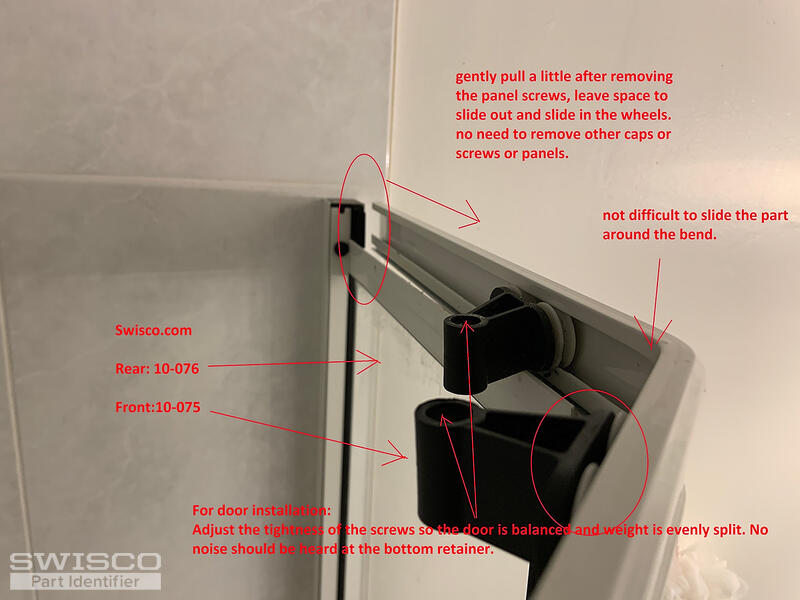

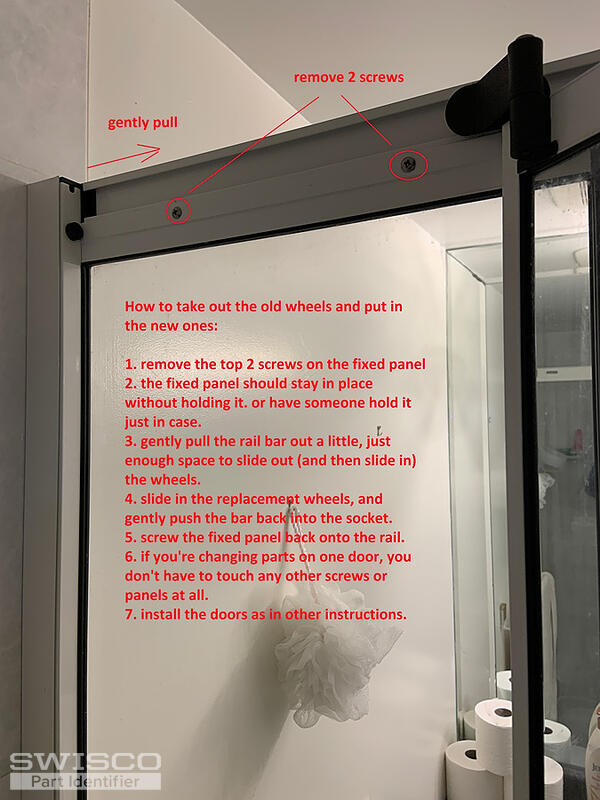

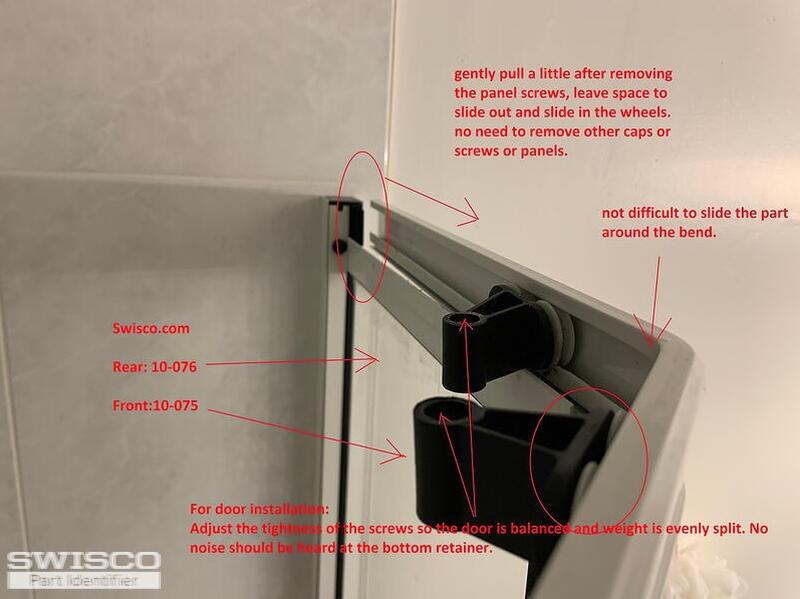

Manhattan shower door roller install - instructions on taking out the rail bar

Purchased and replaced 10-075 roller assembly, read the helpful instructions and discussions here. Did it in 15 minutes. Took some photos on how to take out the rail bar and slide out/in the wheels. Hope it helps others. After removing the sliding door (as in other discussion), remove the 2 panel s ... (cont.)

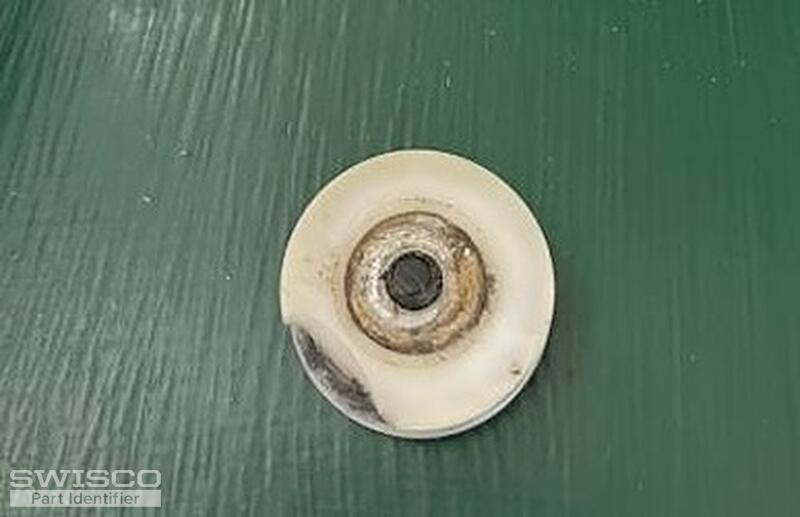

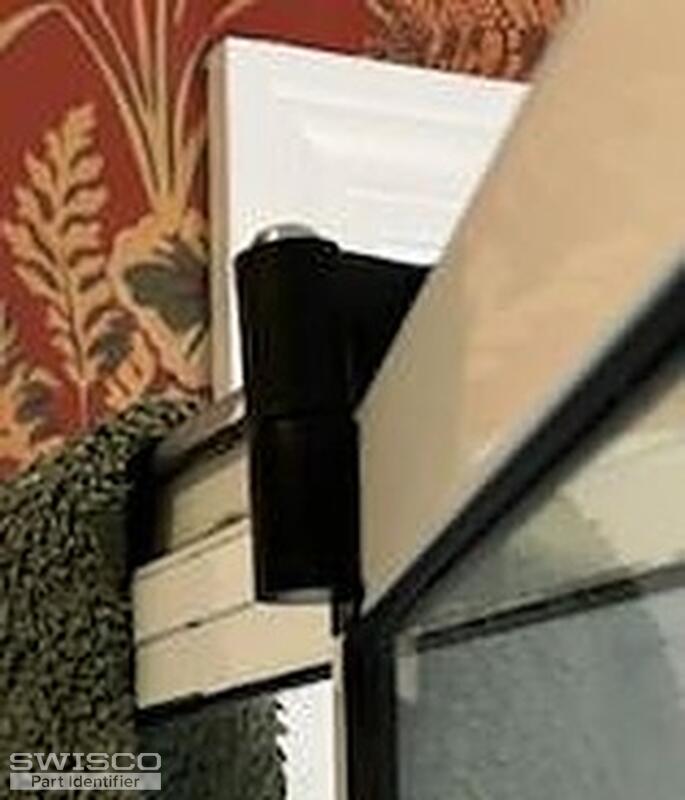

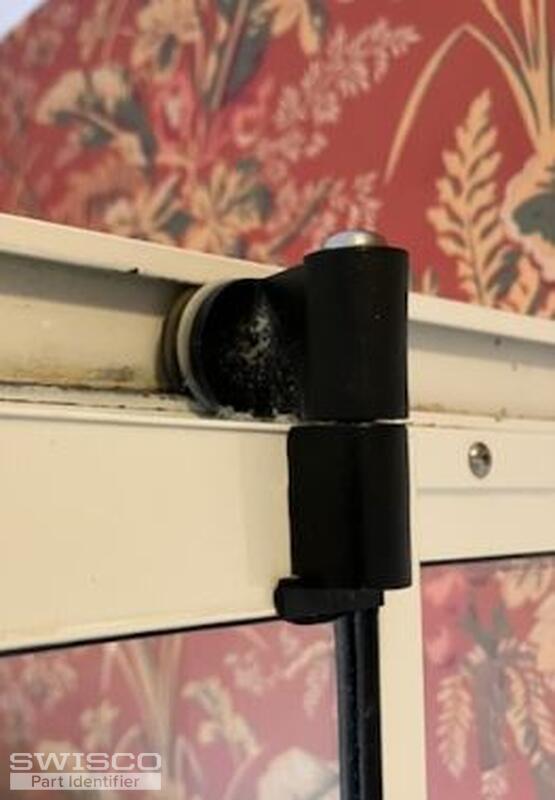

Please find enclosed images that need to be replaced. I’m thinking the 10-071 or the 10-076. Can you guide me. Thank you.

+5

+4

How to install the 19-075

Attached is a picture of the Manhattan shower door roller replacement (two 10-075 units) I am attempting. I have successfully removed the track from the shower enclosure, however, I am not able to slide the 10-075 double rollers around the bend without breaking them. The wheels on the existing rol ... (cont.)

Warnock hersey shower replacement parts

Hello,I jave a warnock hersey shower with sliding doors (model Manhattan, L 10294). The little black plastic pieces that attach the top of the door to the main shower body and allow the door to roll open and closed have snapped off leaving the two small wheels floating inside the track. In addition ... (cont.)

Clip to hold the glass door

Hi, I am looking for the clip which hold the glass door and connects with rollers on the door frame

+1
