Pivot Bar, Simonton

Does the pivot shoe 15-192 work fit with the pivot bar 26-336 ?

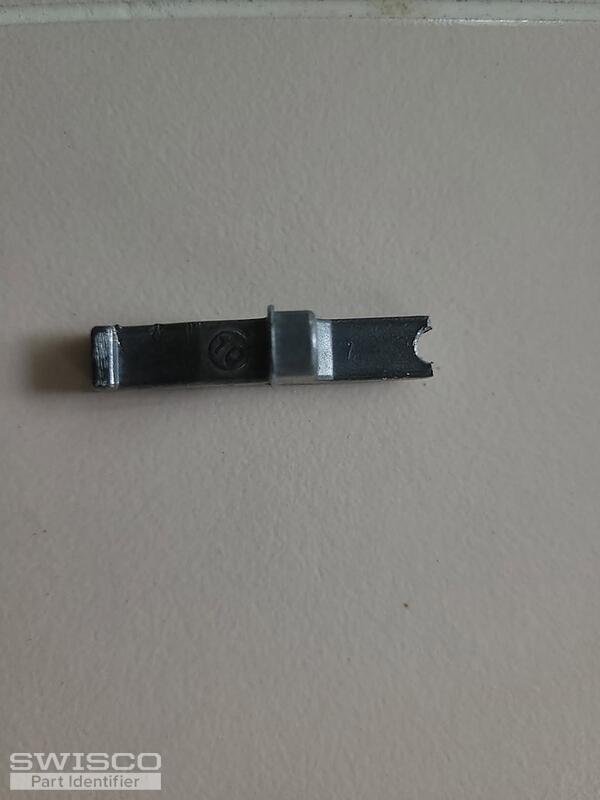

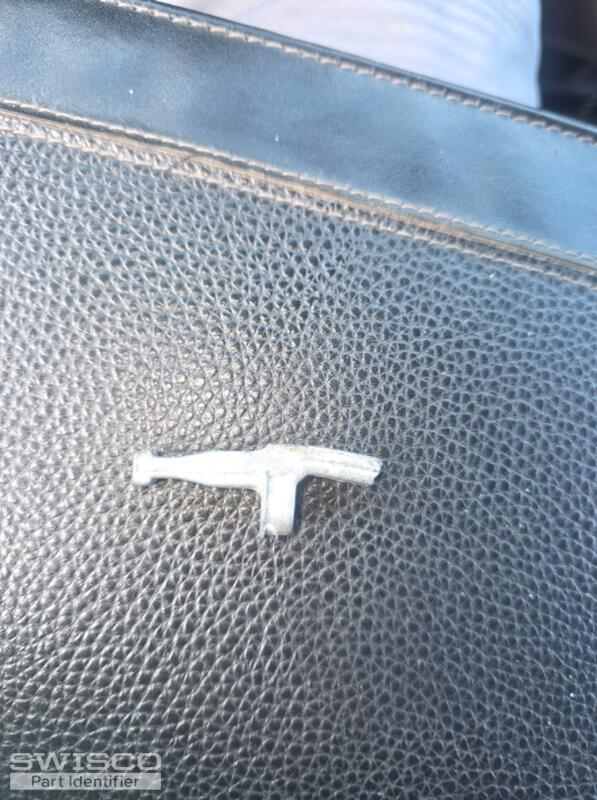

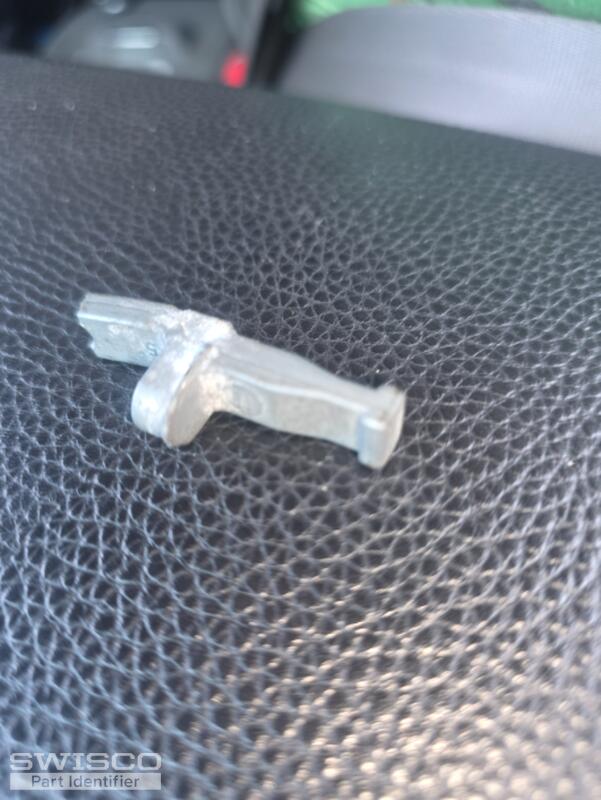

My sash pivot bar broke while I was removing the window. The back half of his bar is stuck inside the vinyl window and does not want to come out. the photos only show the part of bar that broke off. Can you help ID the replacement for me? If you need more info that what I provided - email me ... (cont.)

These pictures are of the current pivot bars on my windows. I ordered parts Product Code: 26-336, but they don't fit in the balances. The ridge on the end makes it too big. I need to find this part, but so far I have been able to find them. The window I'm trying to replace the bar on is in the 4 ... (cont.)

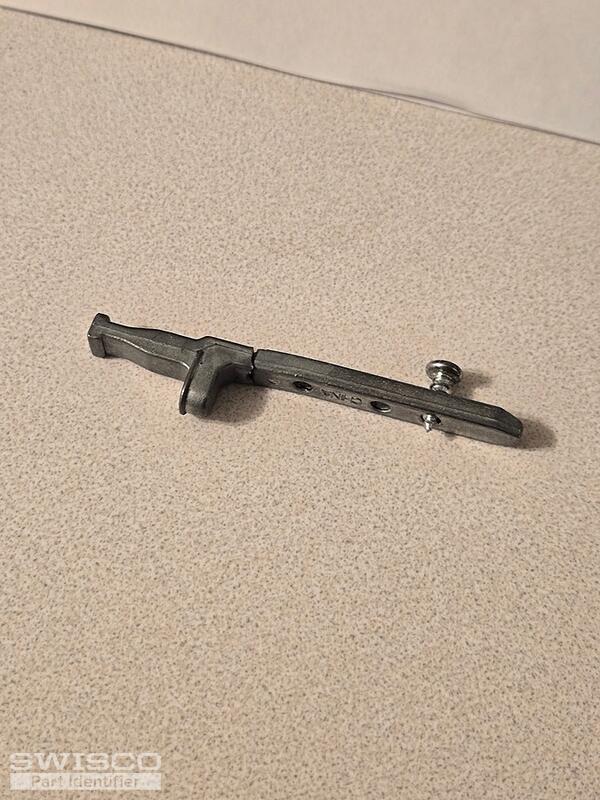

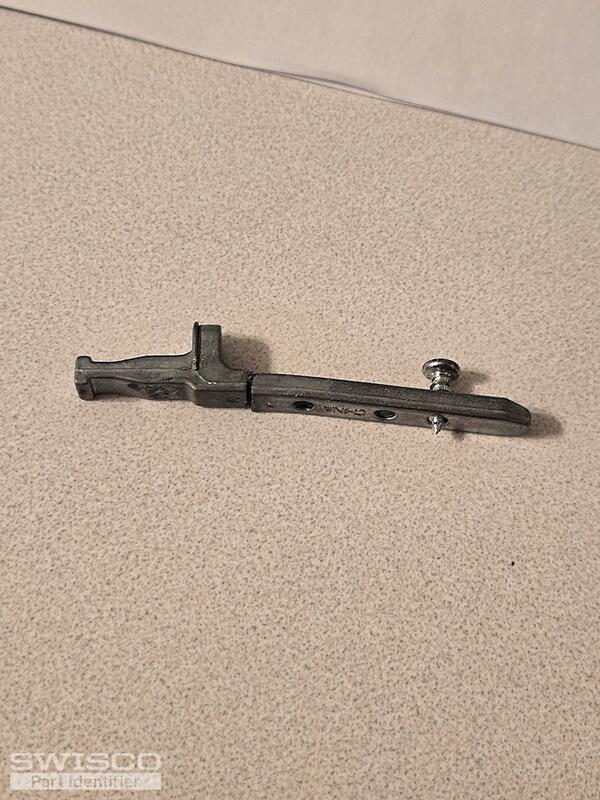

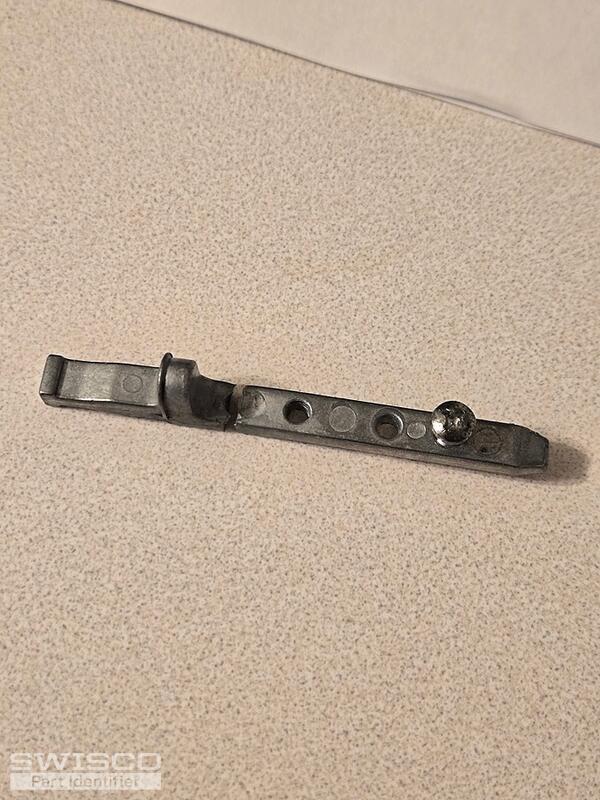

Here's some pictures of the sash pin it has 2 screw holes.. is about 3inches long aprox

The only identifier, after removing the hardware, is #5.5 37 inchs PAT 5232208 on the coil. I need all the proper hardware to replace all coil balances on both sides of the window, the pivot shoes, and coil supports. not sure if this setup is considered single coil, double coil, or more. Note that ... (cont.)
