Pivot shoe coil spring

Question

Which pivot shoe do I need

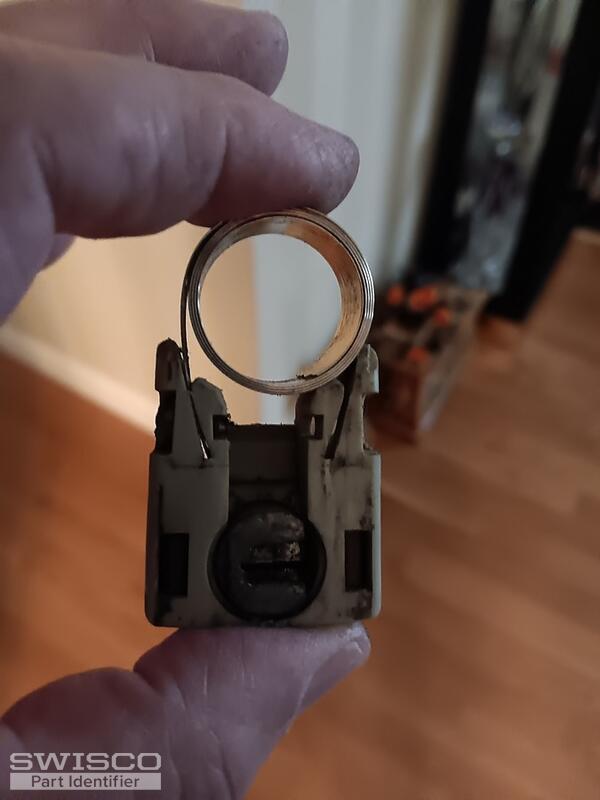

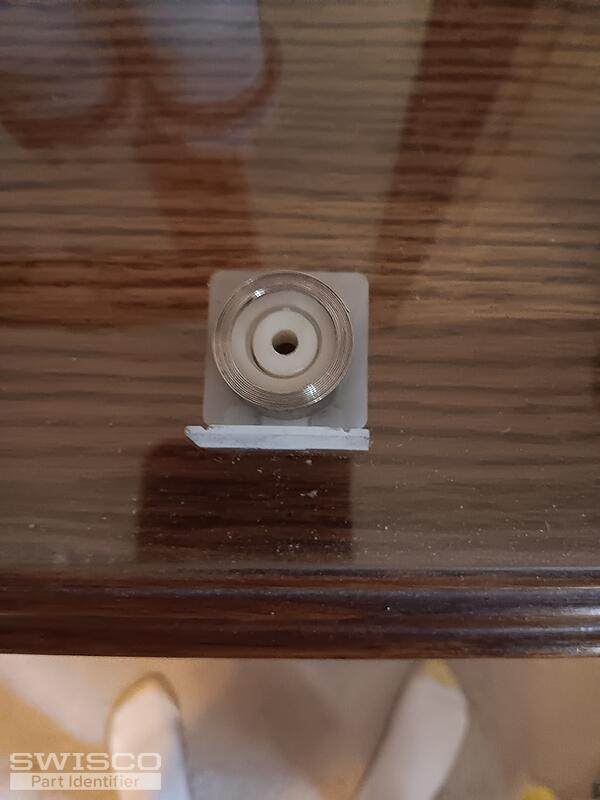

Coil spring has number 5 on it
Need part numbers for both

Jasmine · Accepted Answer

Hello,

Thanks for your post! This window balance assembly is made using the 15-177 Coil Balance Shoe and the Series 152 Coil Balance. The coil is attached to the shoe using the 33-072 screw.

Since the coil is marked with a 5, you'll need the S152-5. If you are able to reuse the covers/supports, that would be advised. If you can't, you'll need the 15-143 Balance Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel. All three are used to make the support.
