Product Code: 15-177

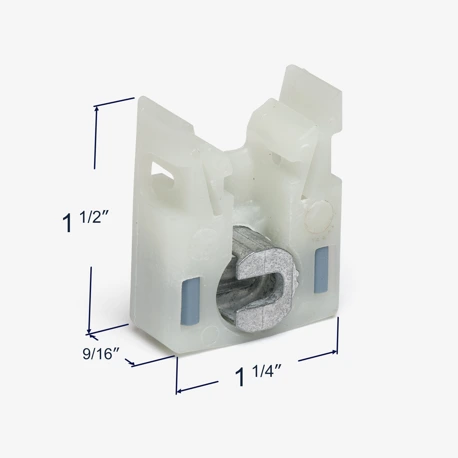

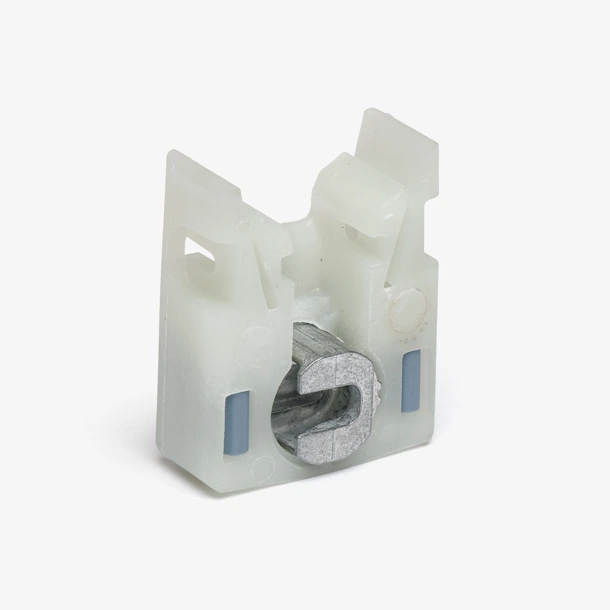

Coil Balance Shoe, Slate Blue

Name: Coil Balance Shoe, Slate Blue
SKU: 15-177
Price: 3.47 USD
Availability: InStock

$3.47

Quantity	Price
1-24	$3.47/ea
25-49	$2.87/ea
50-99	$2.62/ea
100-249	$2.38/ea
250-499	$2.17/ea
500+	$1.97/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This pivot lock shoe with is used with Series 152 window sash support constant force balance spring. Interlocks window sash to frame, break engages when sash tilts in. The brake pad is the color slate blue. This shoe features a high-impact polymer reinforced construction for dependable performance. The metal cam is die cast zinc with a superior corrosion resistant coating.

How does the coil spring attach to the 15-177 pivot shoe?

Hello! I just bought your 15-177 to replace my old shoe, which I believe was your discontinued 15-175. It seems like it would fit in my track, but when I screw the springs to the side of the shoe it ends up being too big to fit. What am I doing wrong?

What number Series 152 coil do I use?

I need to replace parts of my replacement window, and i matched my window with the following parts: Pivot true bar 26-030 Pivot Lock shoe 15-177 Balance Drum 15-157 Drum Holder 15-185 My question is; What number coil do i use? Is it the 3LB or 4LB of the 152 series? One is stamped CL ... (cont.)

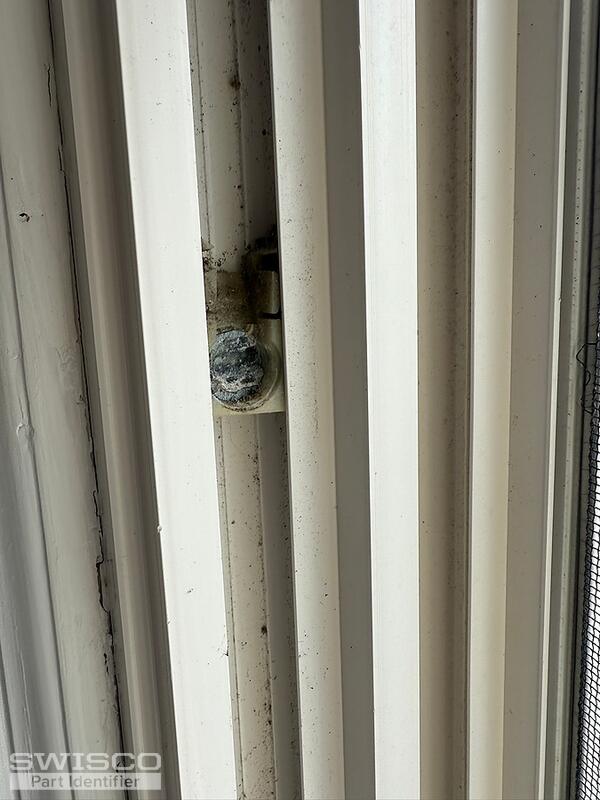

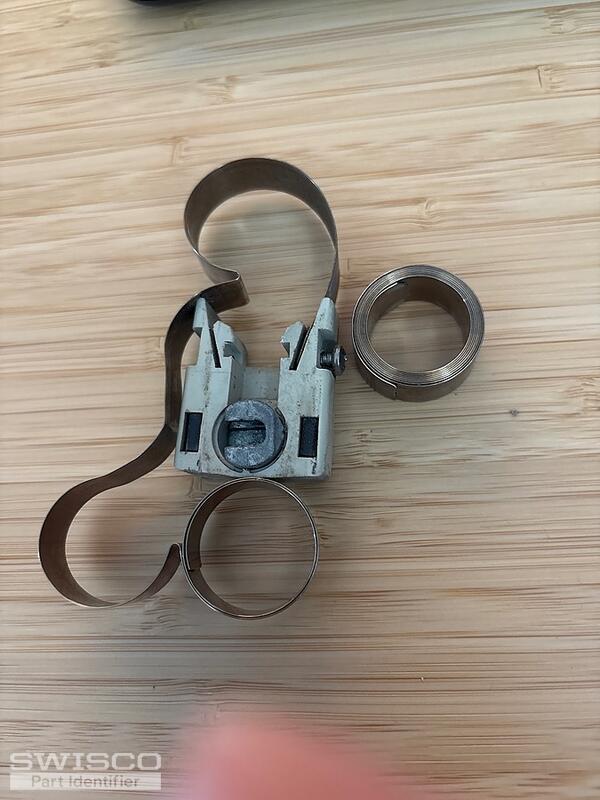

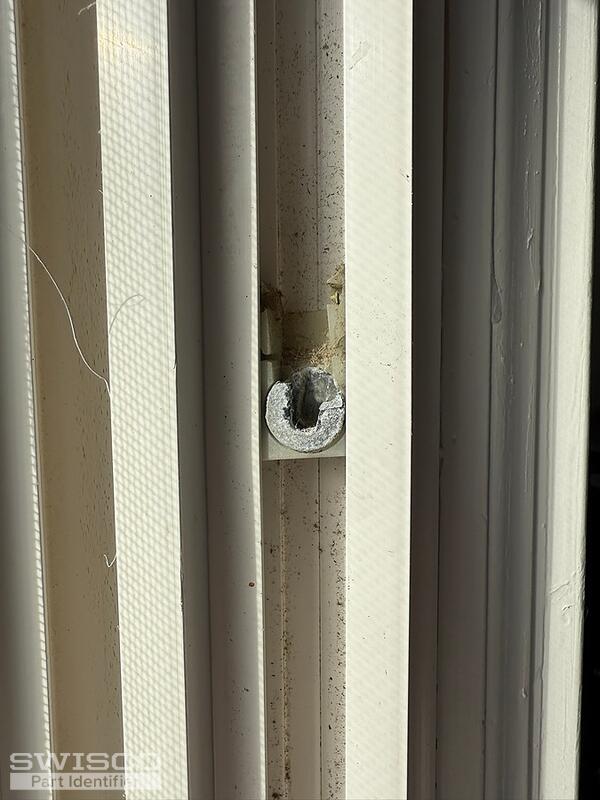

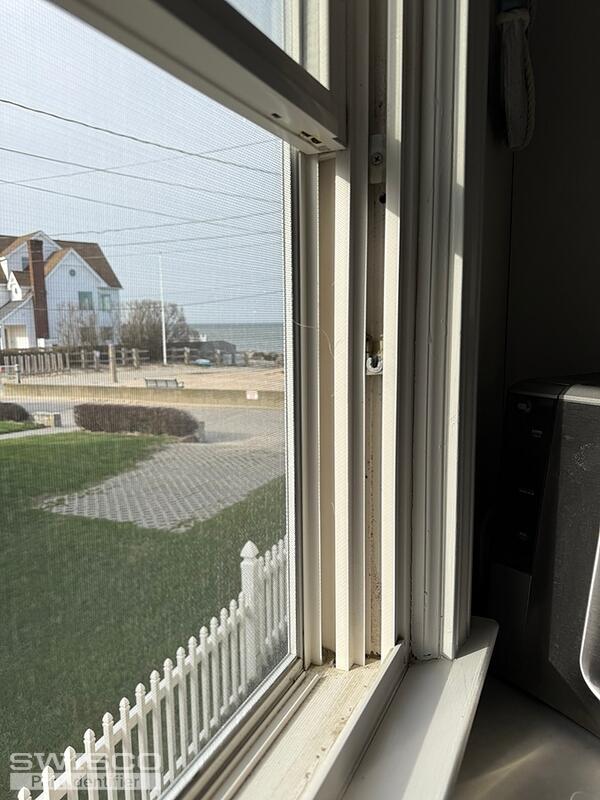

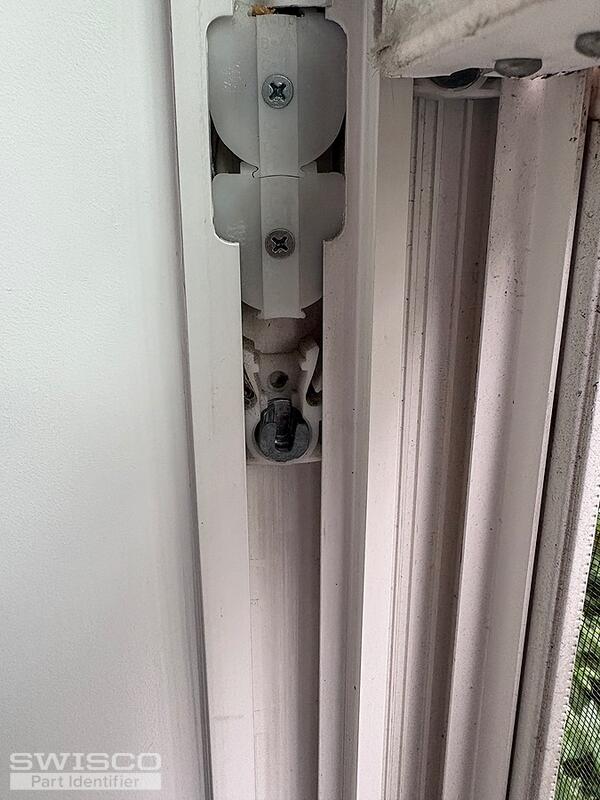

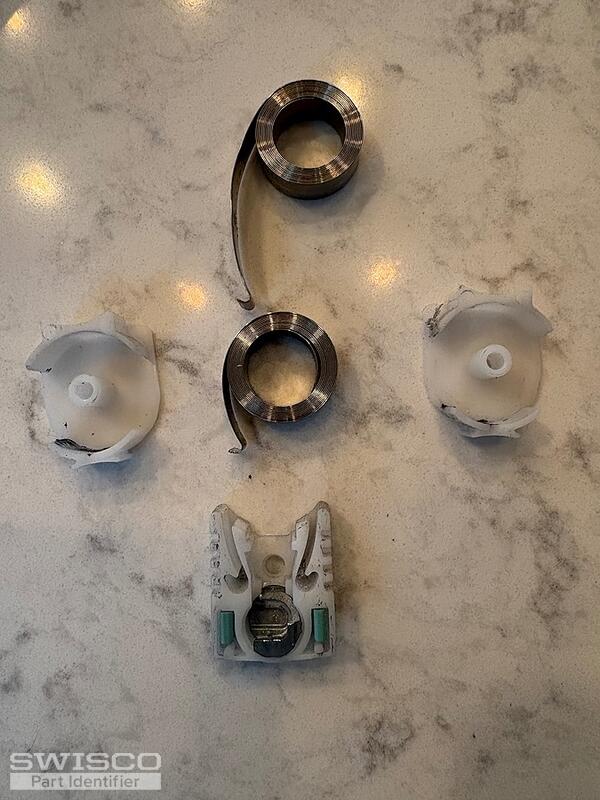

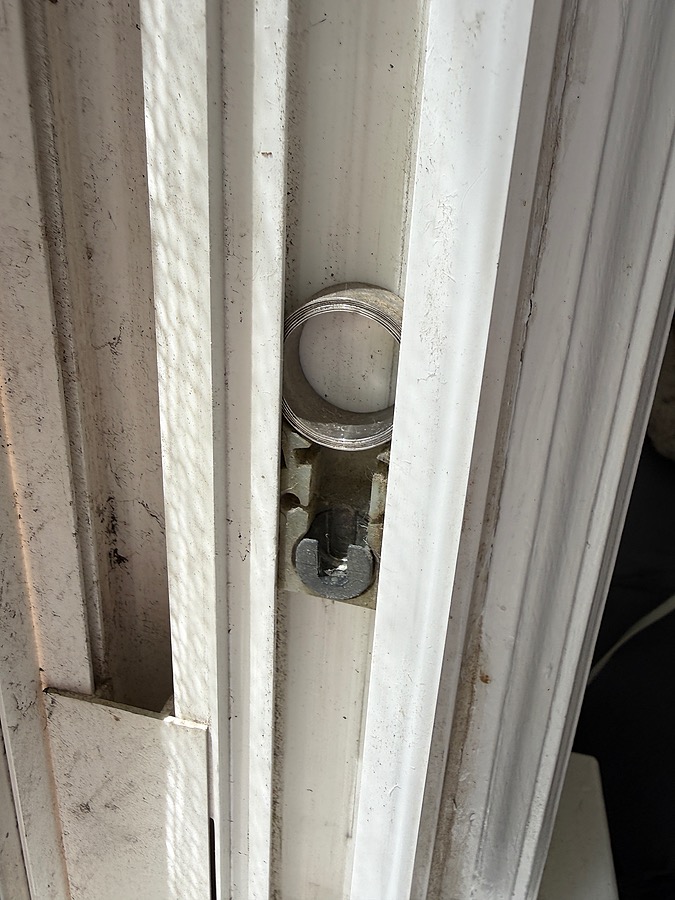

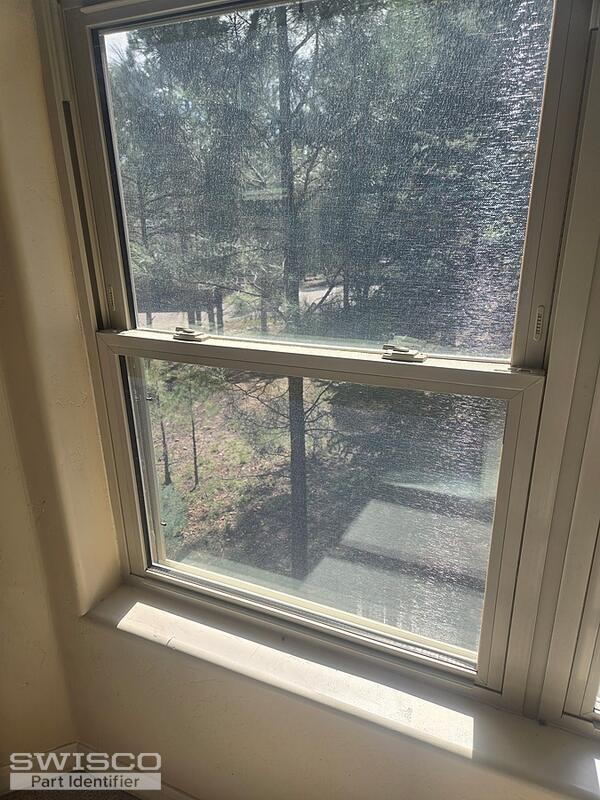

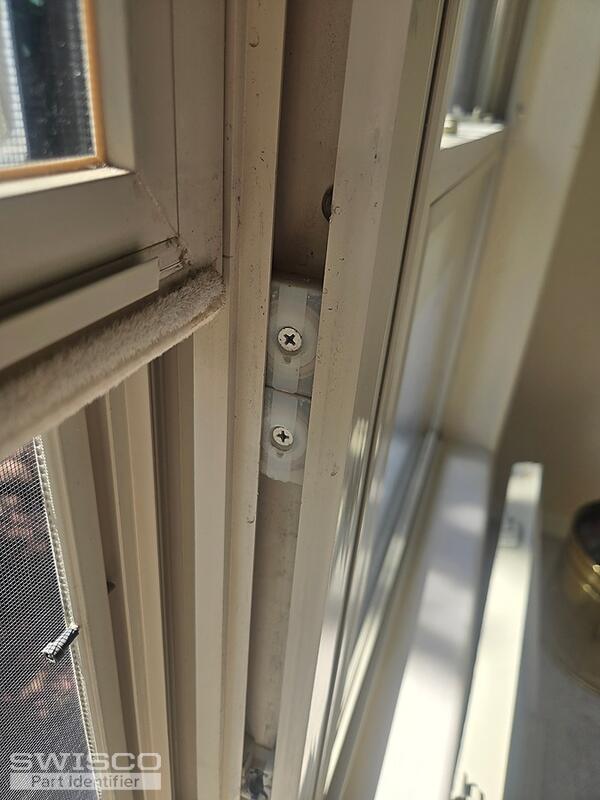

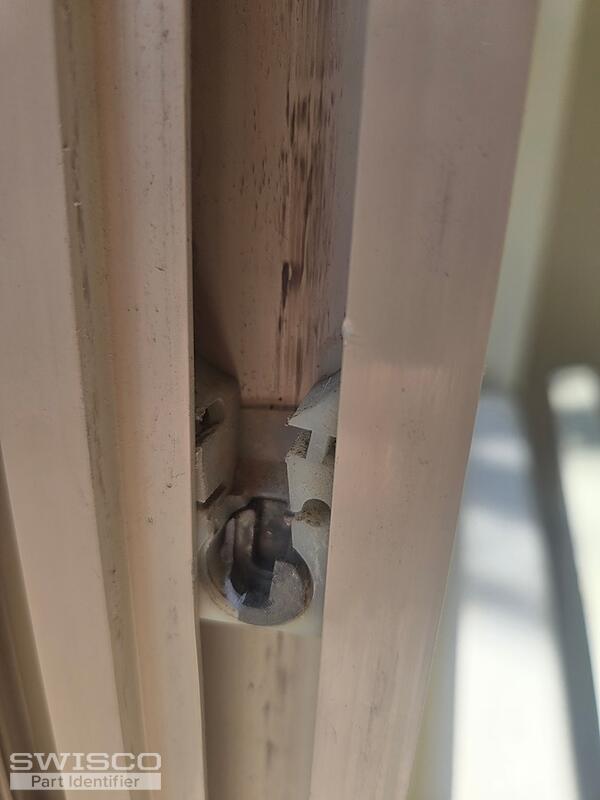

Broken coil and pivot connector

I have a window from approximately 2000 where both the metal part of the pivot and the coil are broken. There does not appear to be a natural cut out to slide these out to get pictures.

No markings

Looking to find replacements to fix the window

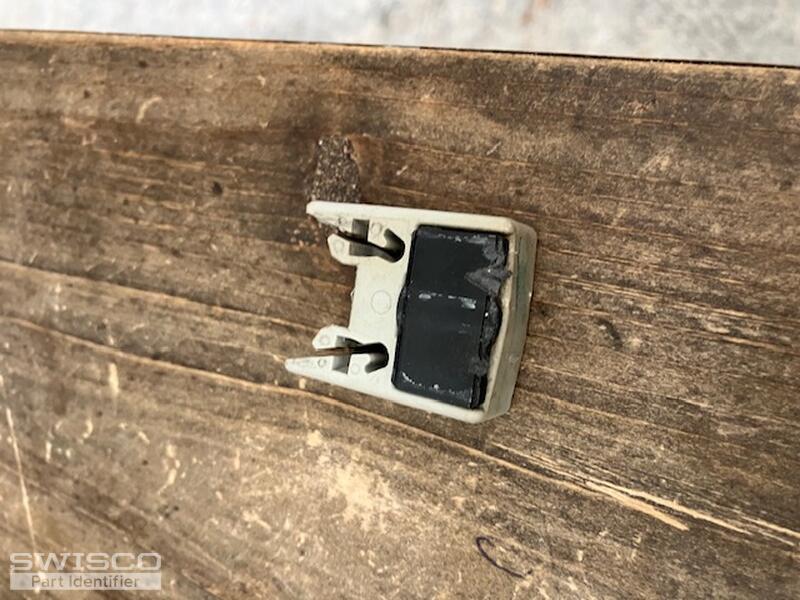

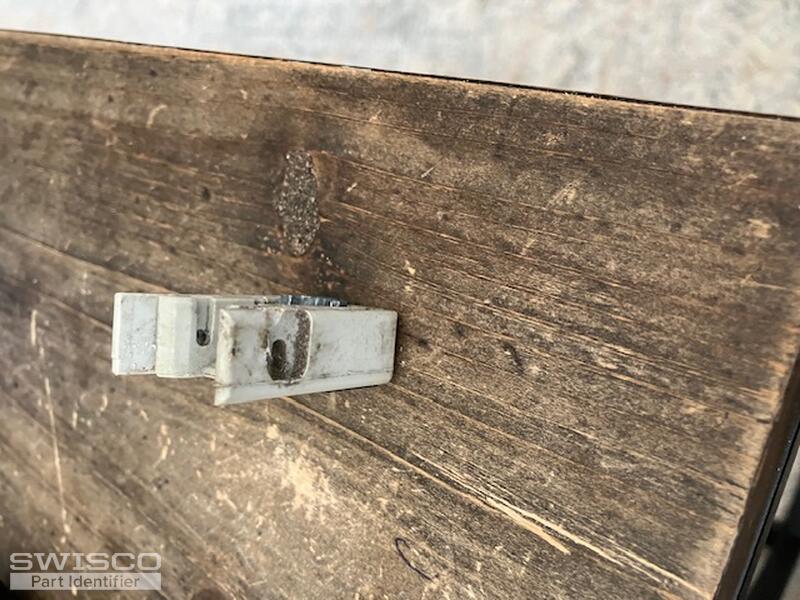

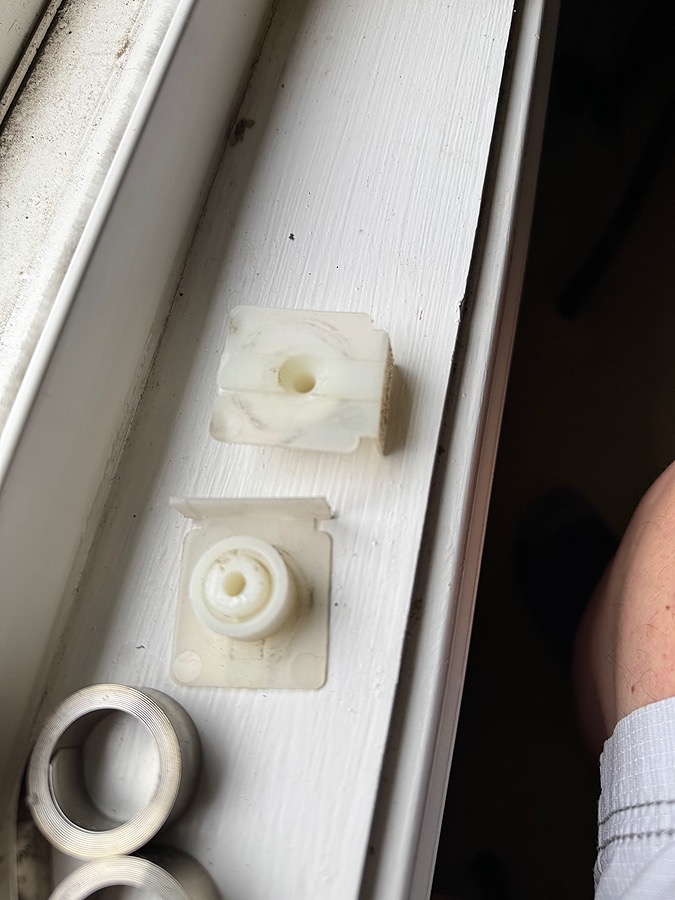

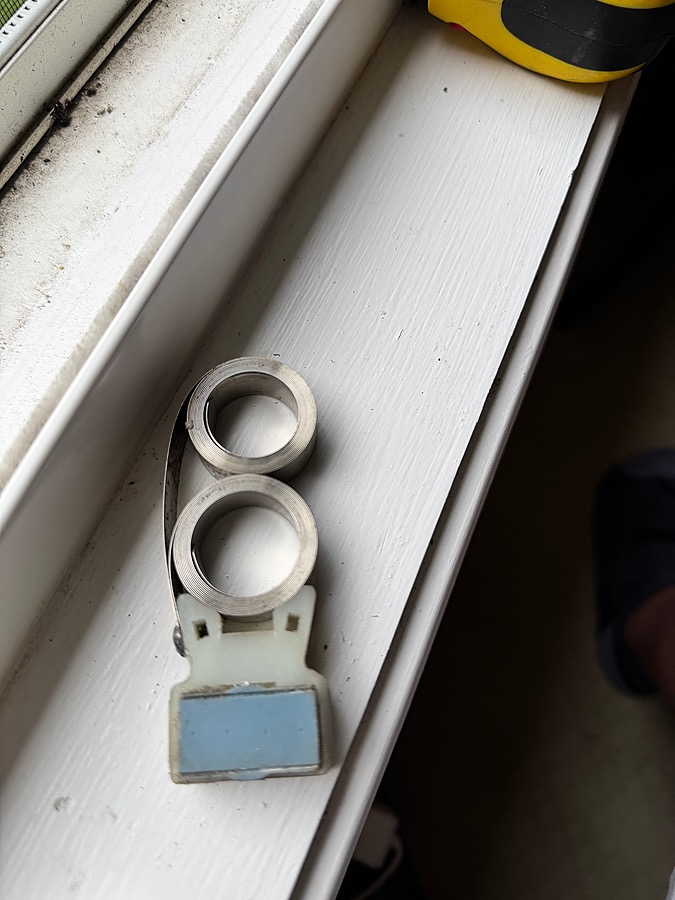

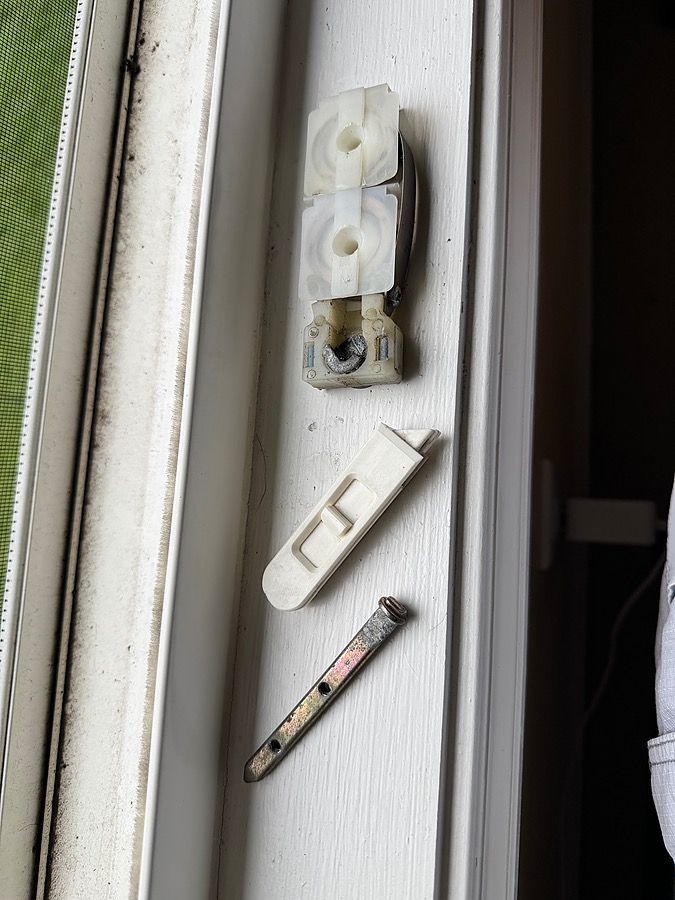

Request for replacement parts

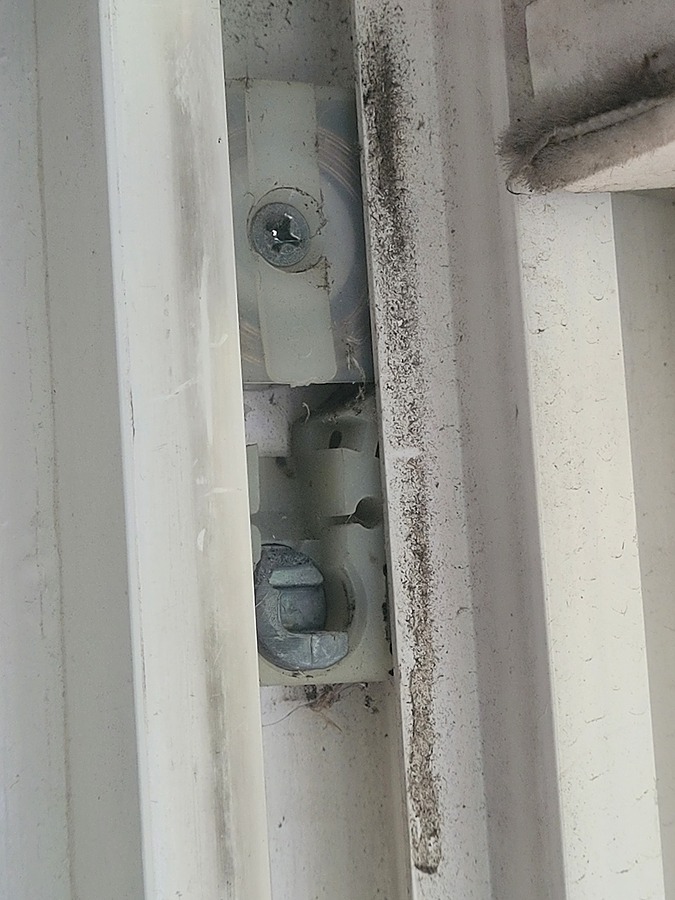

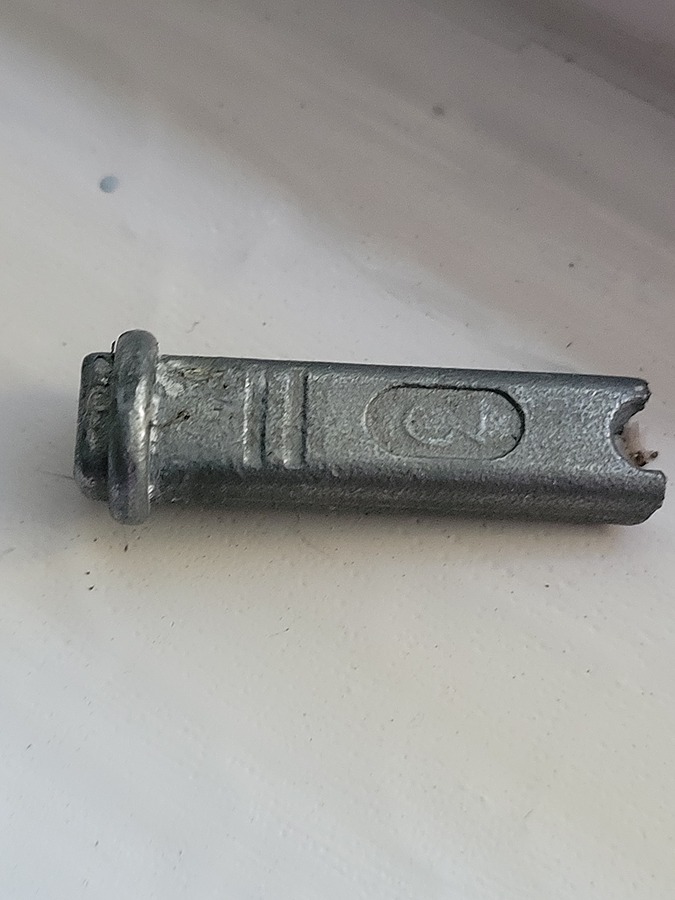

Good afternoon, I have Arcor double hung windows that have some broken parts and I noticed that on your website someone else was asking you about Arcor replacement parts. I called your Customer Service number and was told to email you some pictures of the parts The first picture is a close up of ... (cont.)

Start a new Discussion

Notice:

Your inquiry will be addressed by one of our specialists promptly. If your inquiry is time-sensitive, please feel free to reach us at (888) 991-1929 or at help@swisco.com.

Expect a reply within 4–5 business days.

Note: We are currently experiencing a higher volume of inquiries than usual.

Need immediate assistance? We’re here to help! Give us a call at (888) 991-1929 or email us at help@swisco.com.
