Viewing all customer Discussions for:

15-177 Coil Balance Shoe, Slate Blue

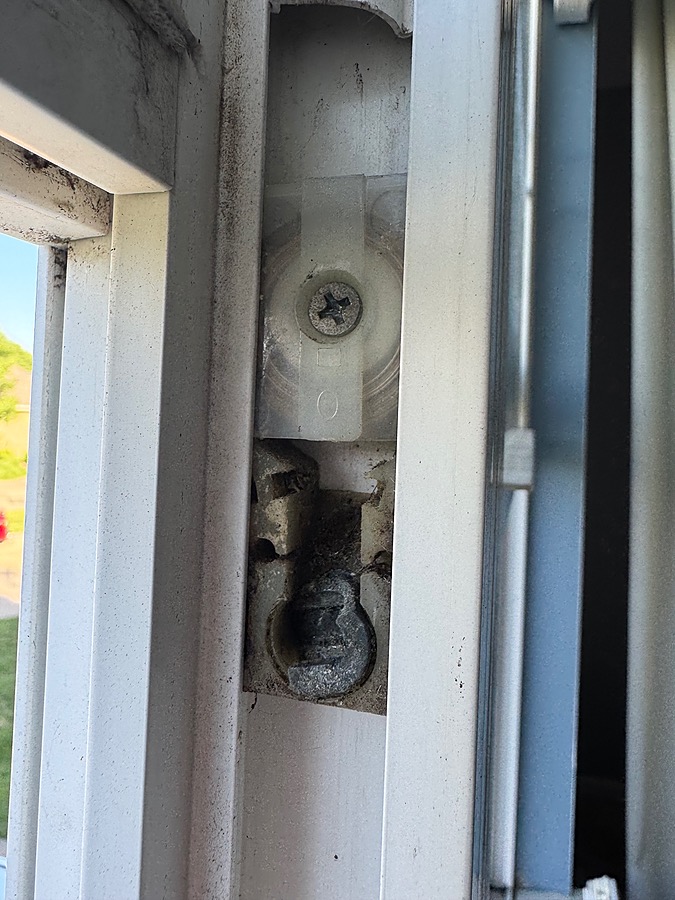

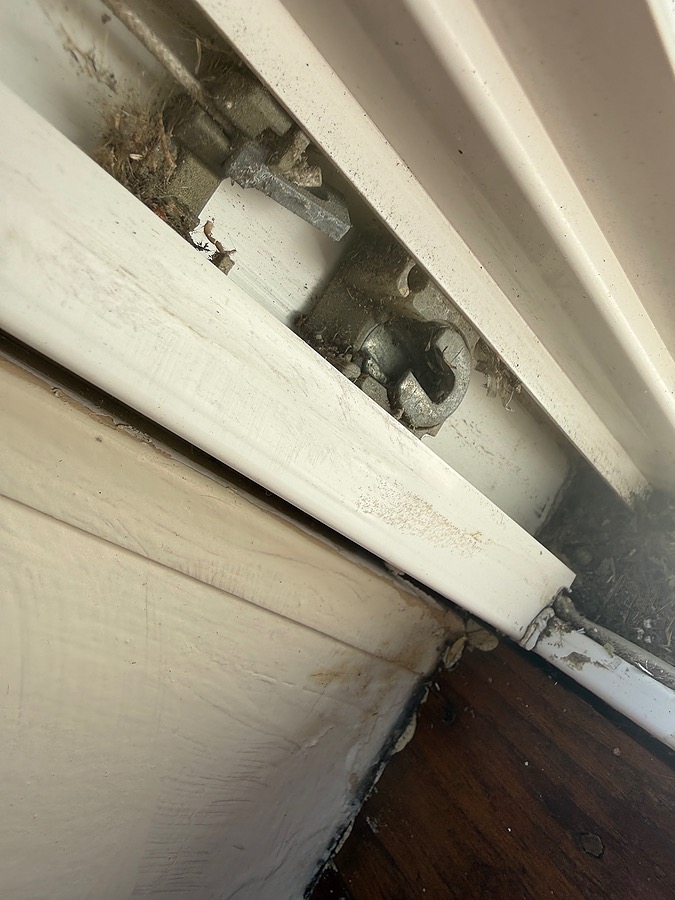

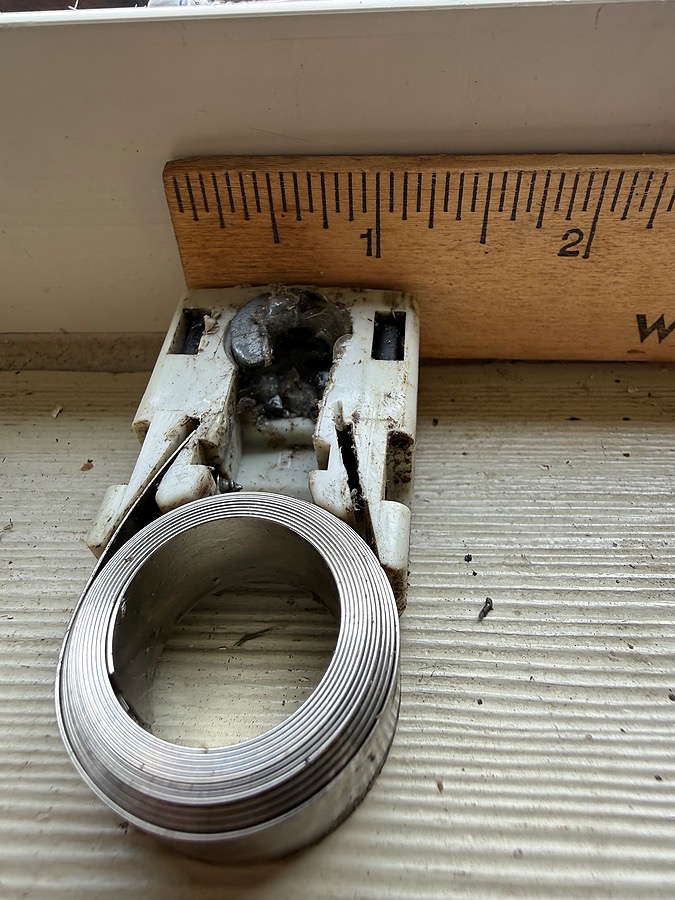

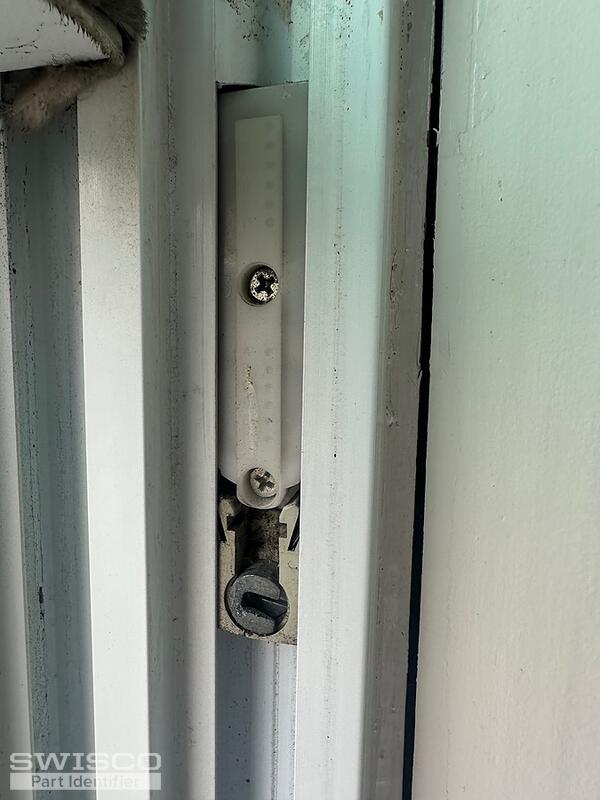

I have a window from approximately 2000 where both the metal part of the pivot and the coil are broken. There does not appear to be a natural cut out to slide these out to get pictures.

Could you help me to identify what's the right type of coil balance spring and shoes I need to order to replace my current broken spring? it's a double hung amerimax window wv4900DH type, do you need me to get a weight of window? Thanks dehua

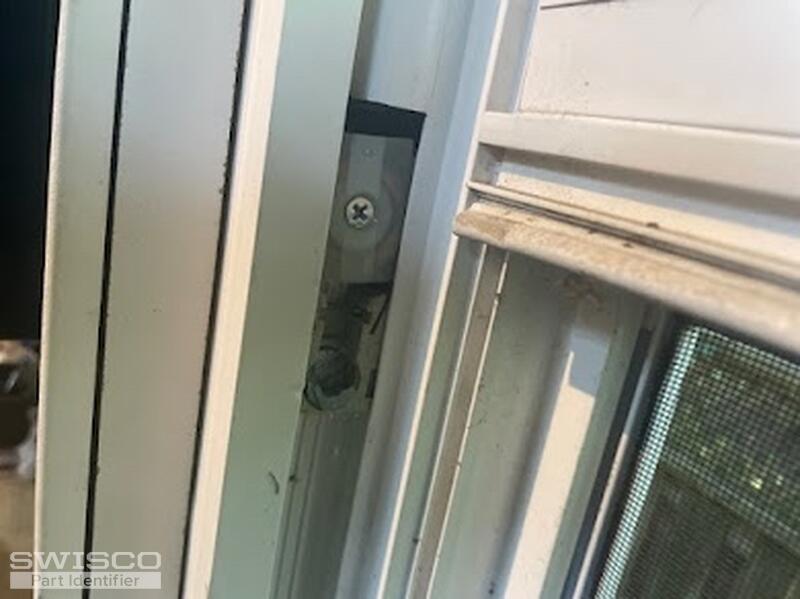

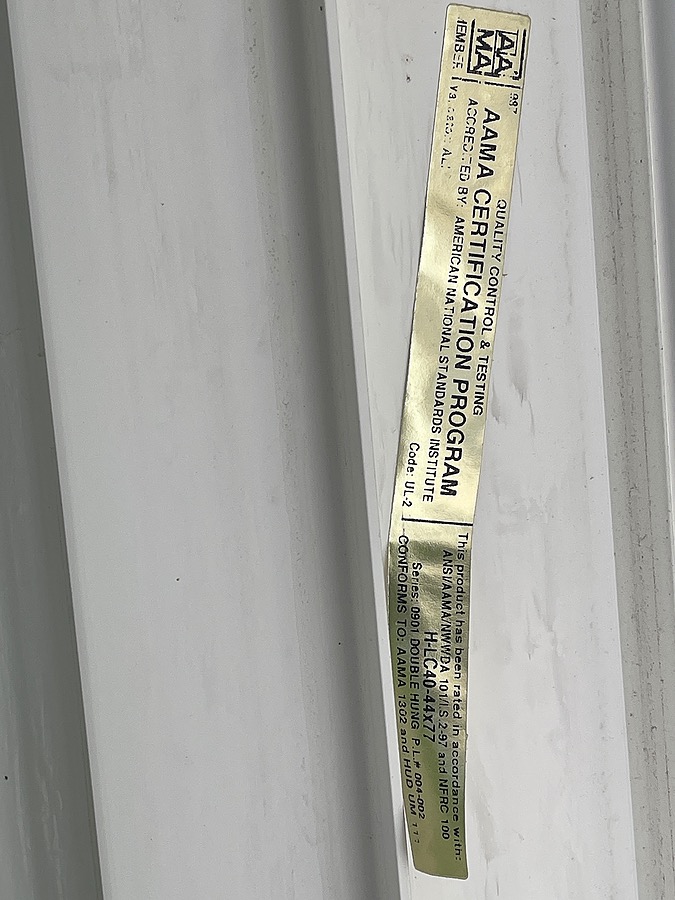

Thanks all- looking for a replacement for this broken piece which I believe is a pivot shoe lock. the make/model info I could find on the window: SERIES: 0350 ES / 03A0 ES SH, AMI-05 thank you and much appreciated!

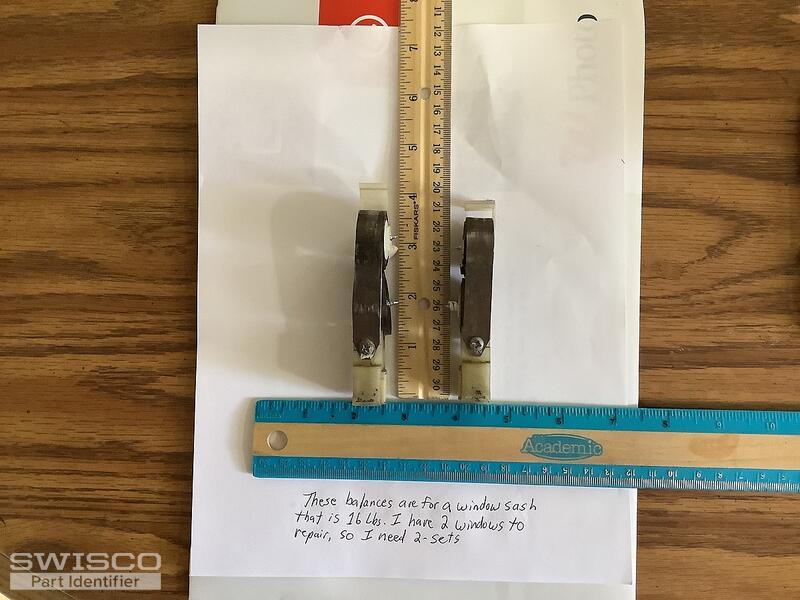

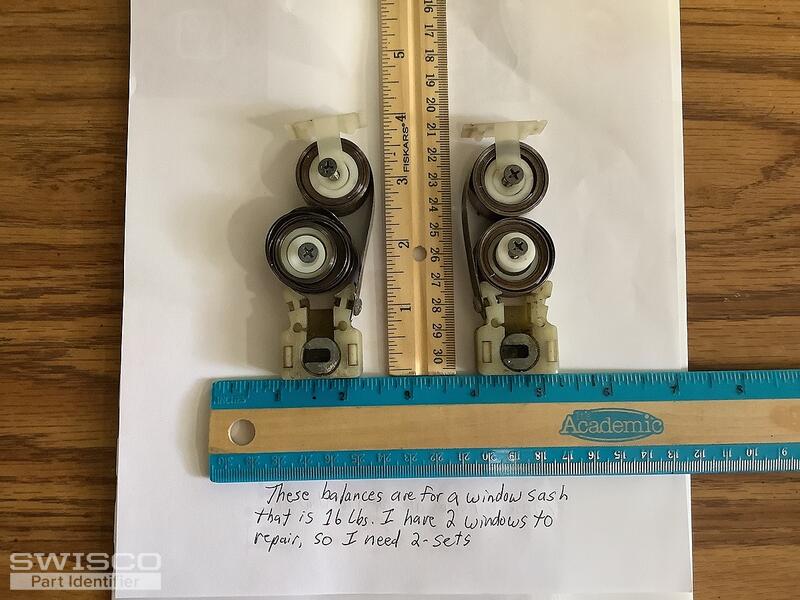

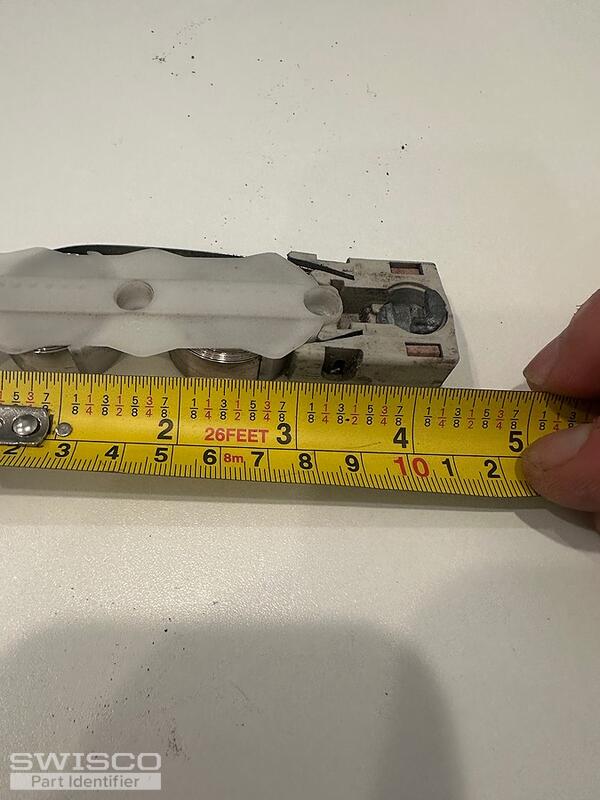

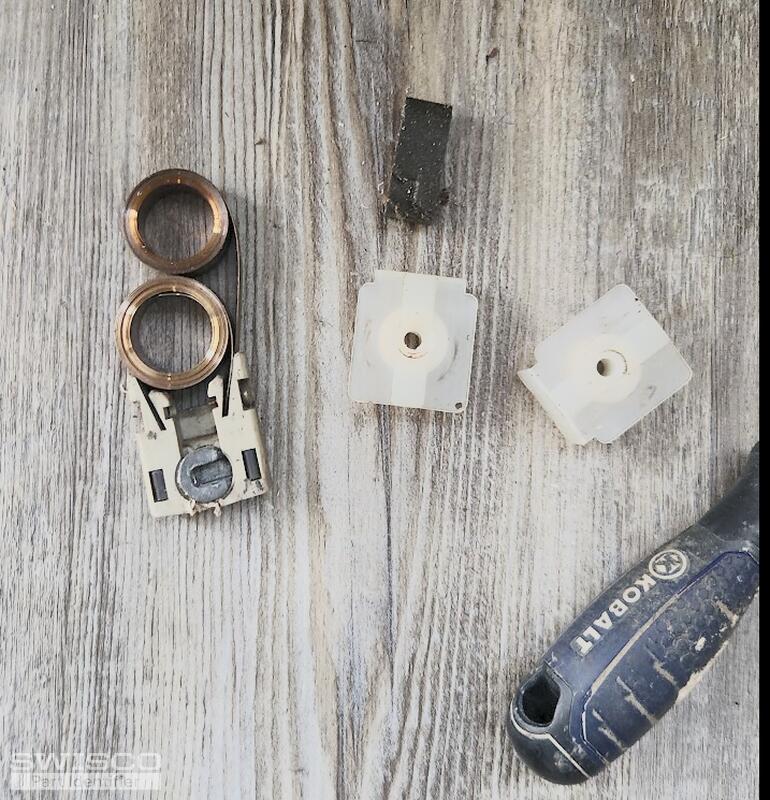

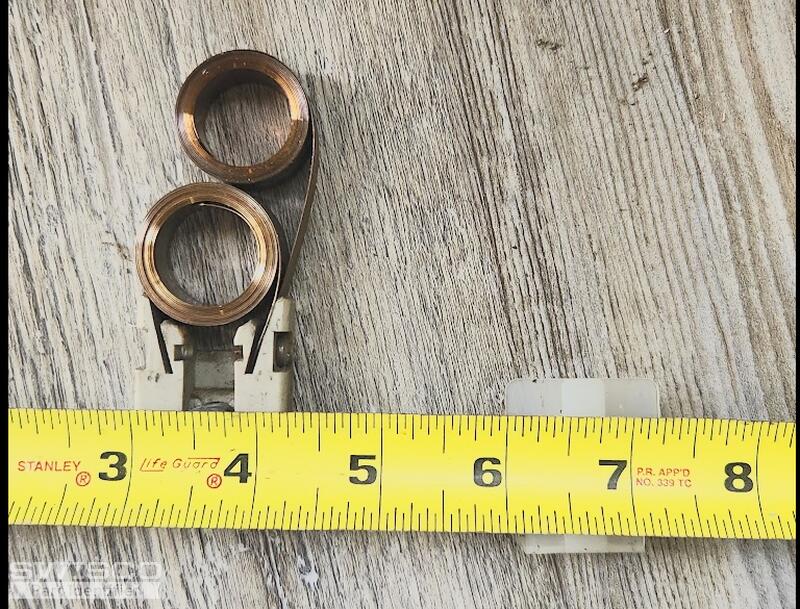

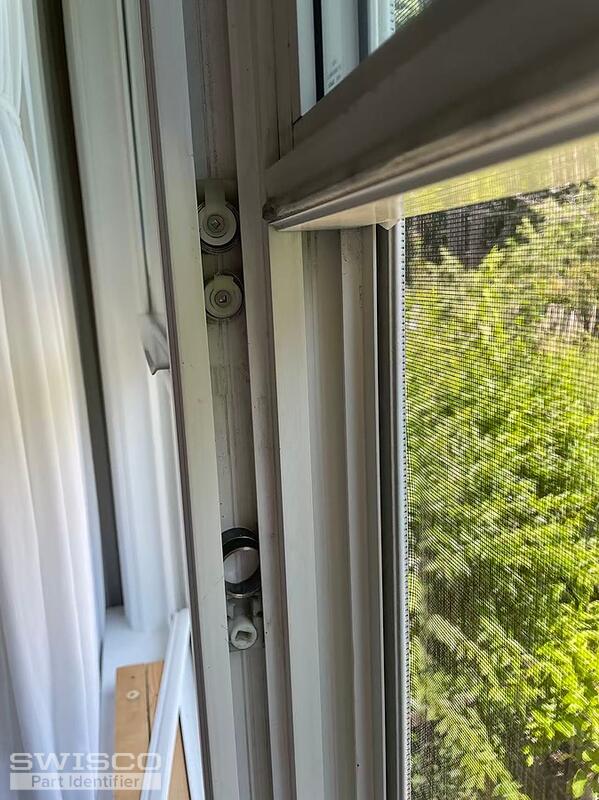

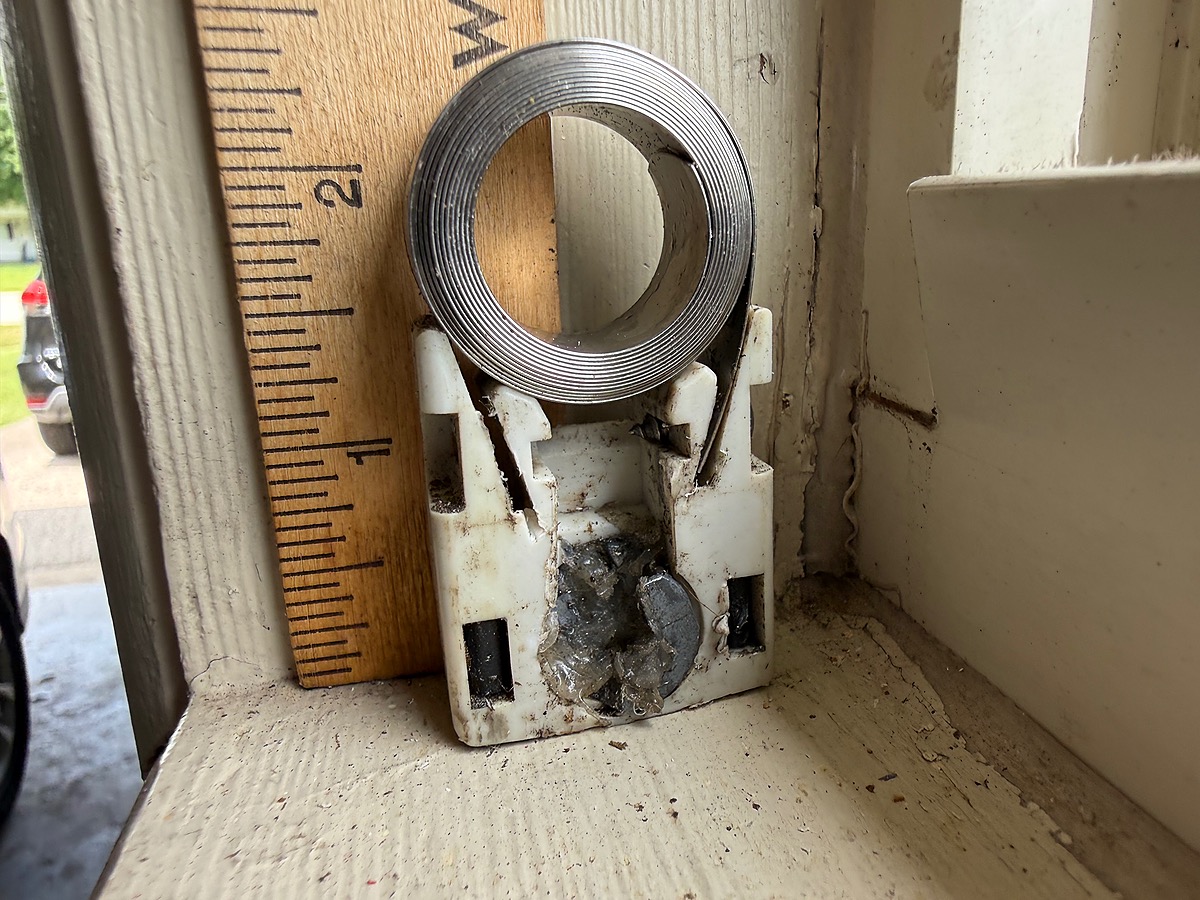

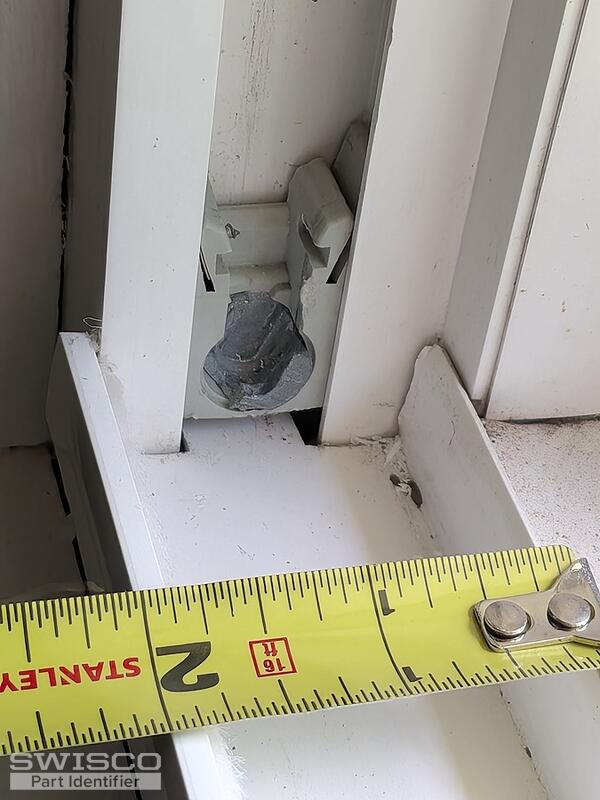

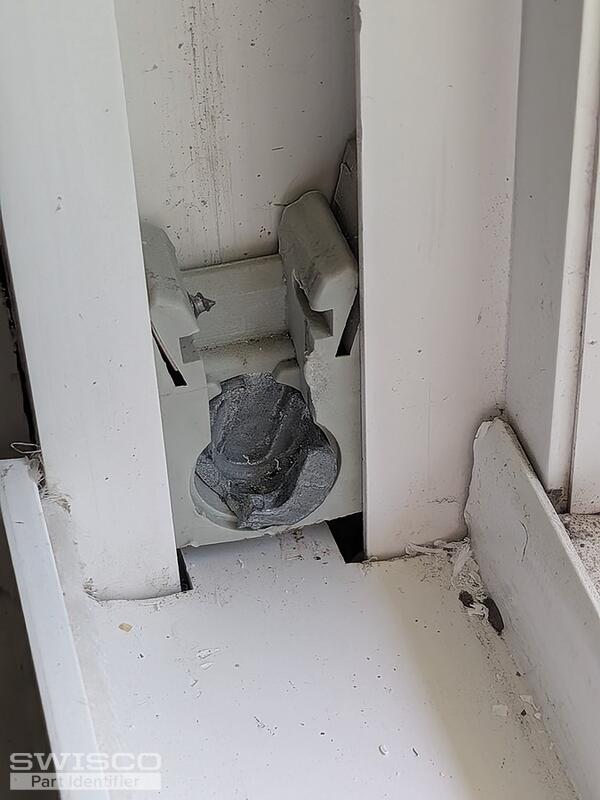

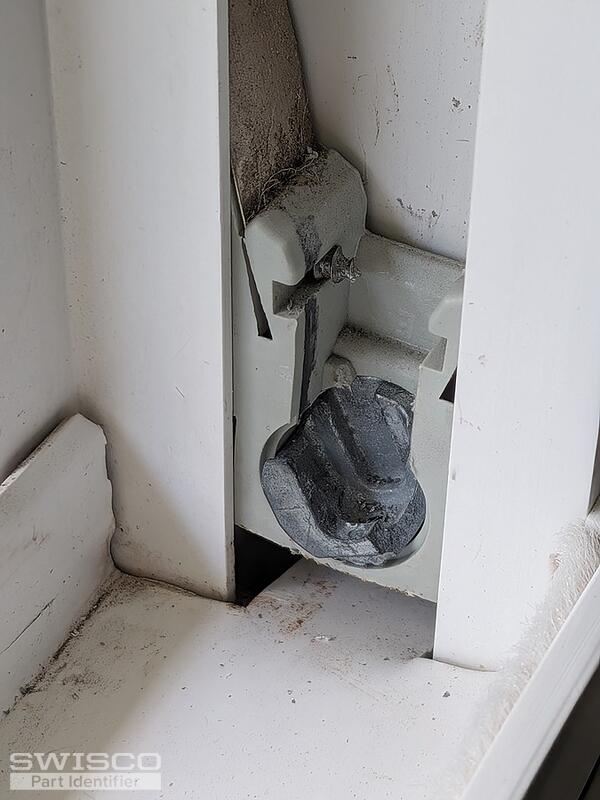

One of the windows in my vacation home appears to have broken balance shoes. I am not physically at the house right now, but have inclued pictures of the right and left side along with a shot with a tape measure. I have not removed them from the window, since my time was short on the last visit when ... (cont.)

looking for 2 sets of these for residential vinyl windows.

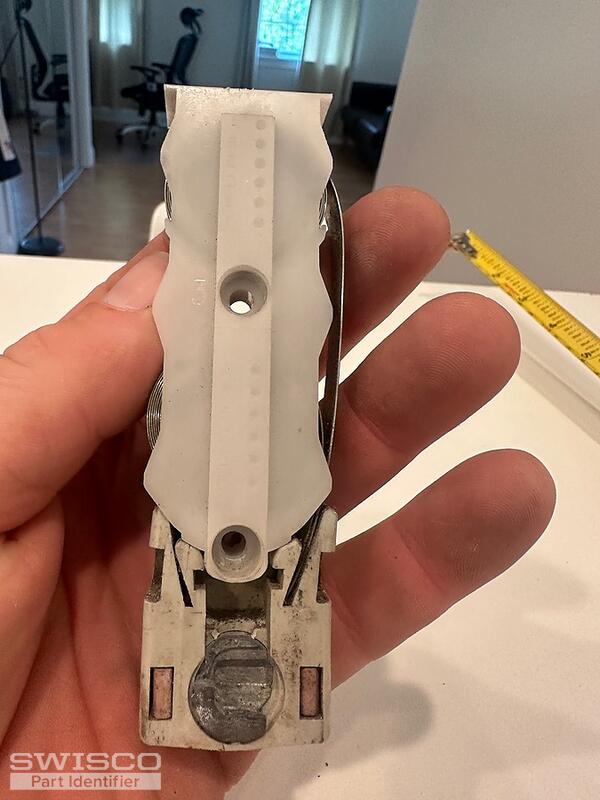

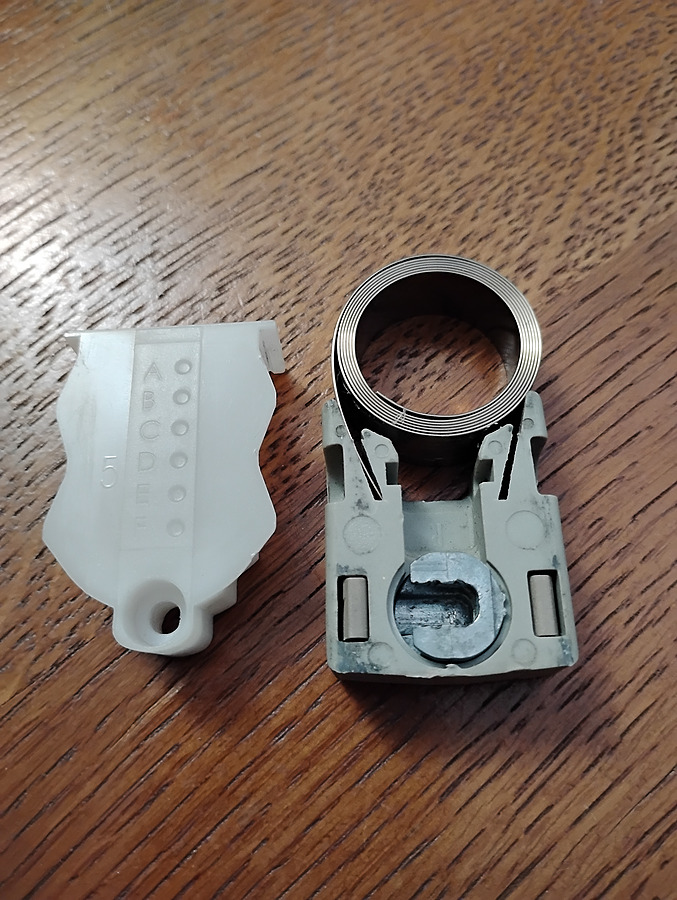

Has a D marking

Alside window

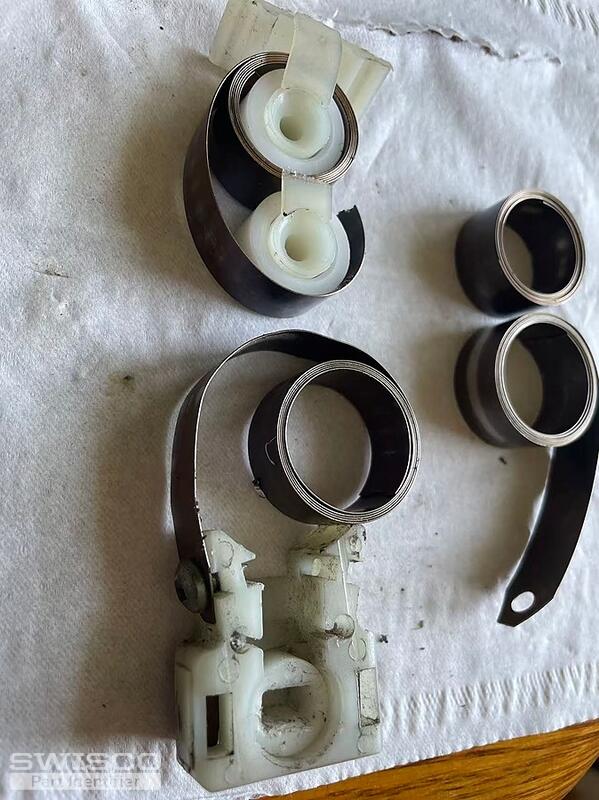

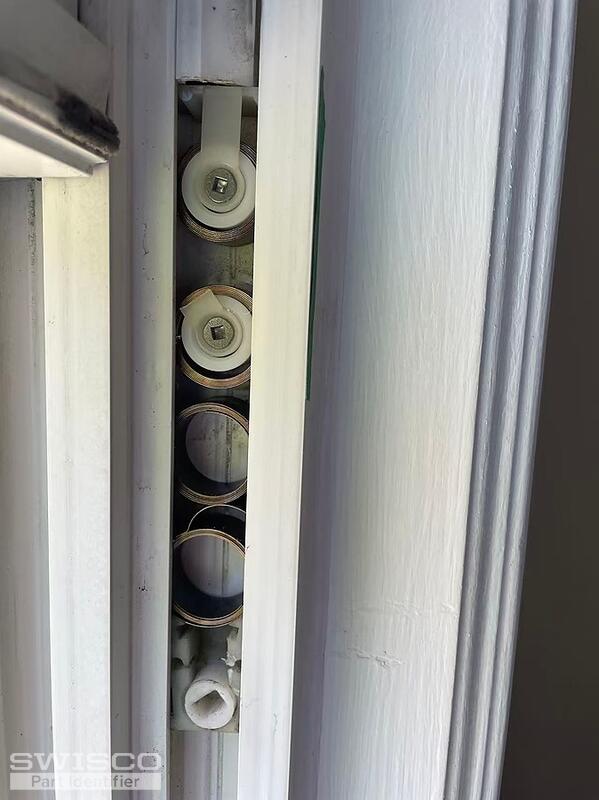

Hi there, There are 2 coils on each side of the sash(Double hang windows). I can't find the weight and type on the broken coils. The only information I can give you is the broken coil is 1/2'' wide and the sash is 14 pounds and the dimension is 26'' x 26''. I would appreciate it if you could help me ... (cont.)

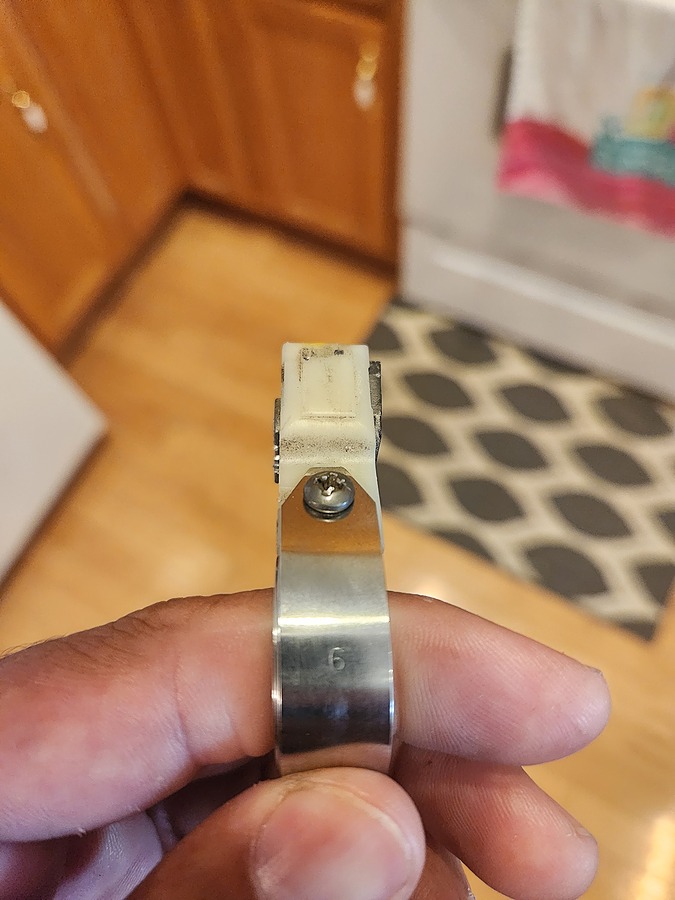

No serial numbers or markings found on windows or parts except for the 6 or 9 on the coil. Alside windows.

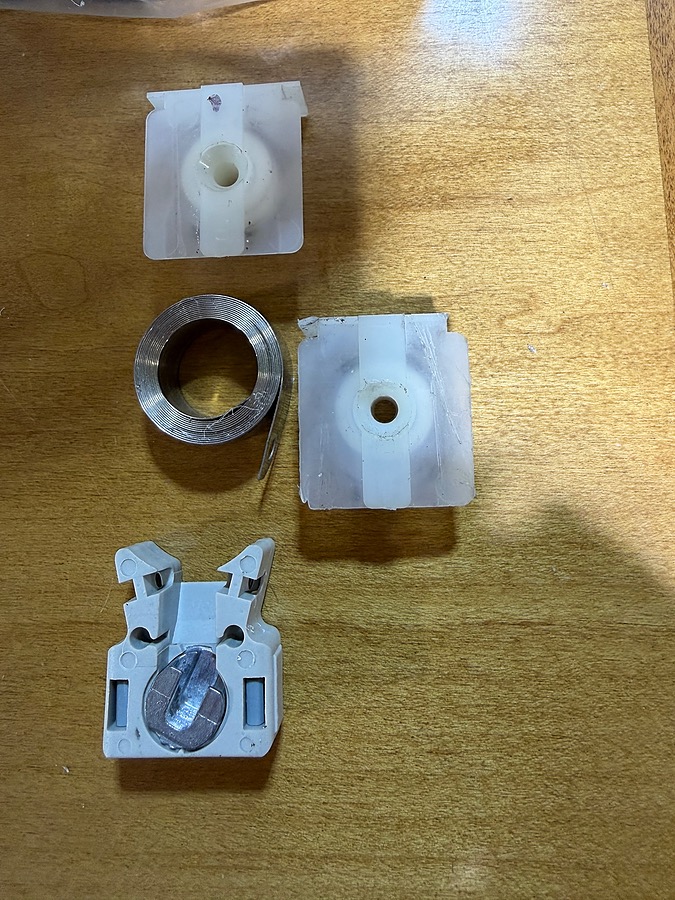

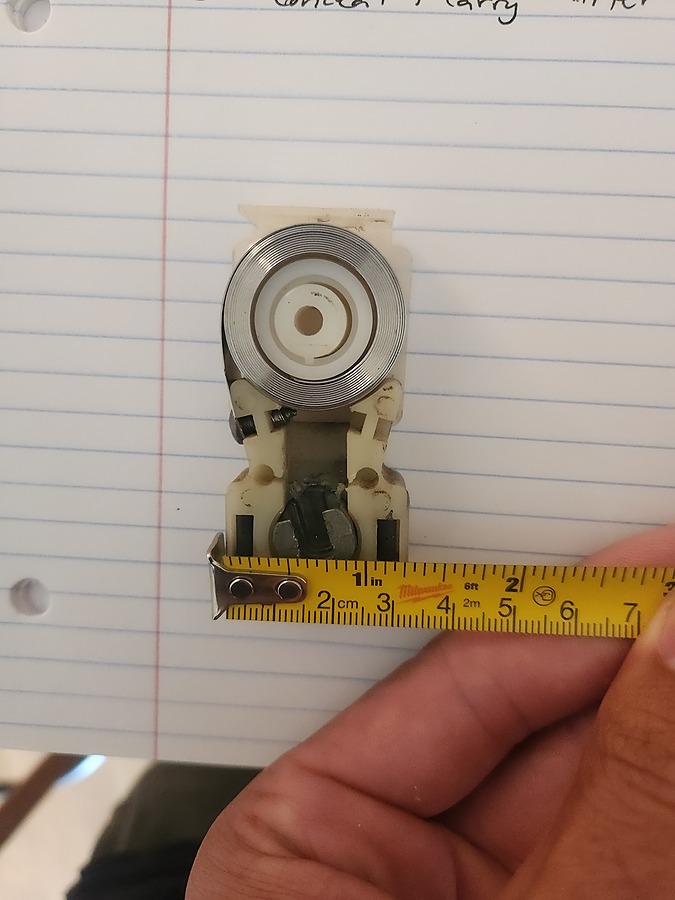

Shoe and coil support are both 1 1/4" wide. shoe is 1 1/2" tall. coil support is 1 3/8" tall. coil is 1/2". Window weighs 18 lbs. Window size is 25 1/2" wide x 26 1/2" high. Lower window. Double hung unit.Tilt.

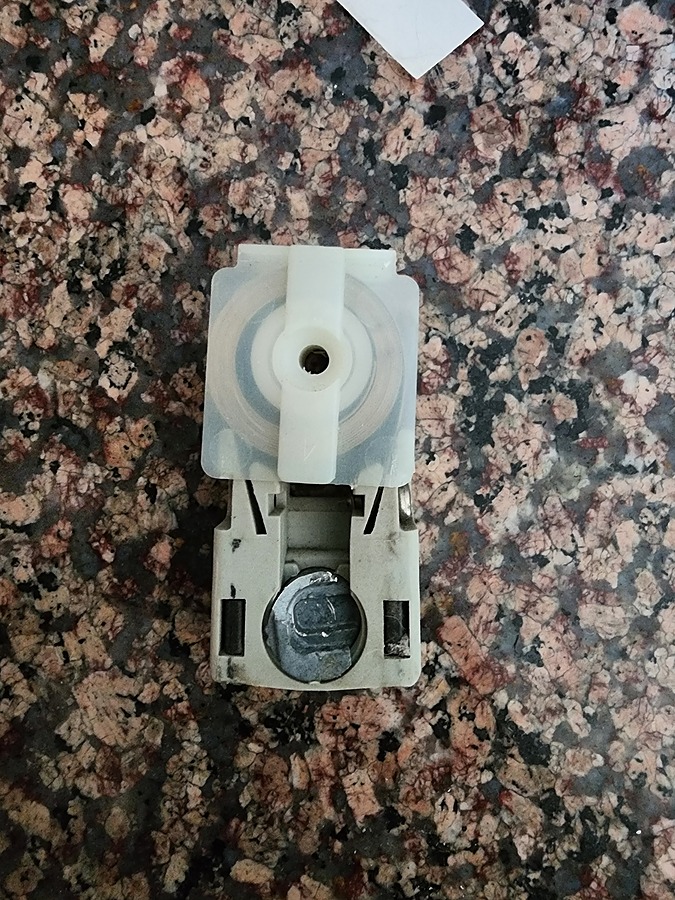

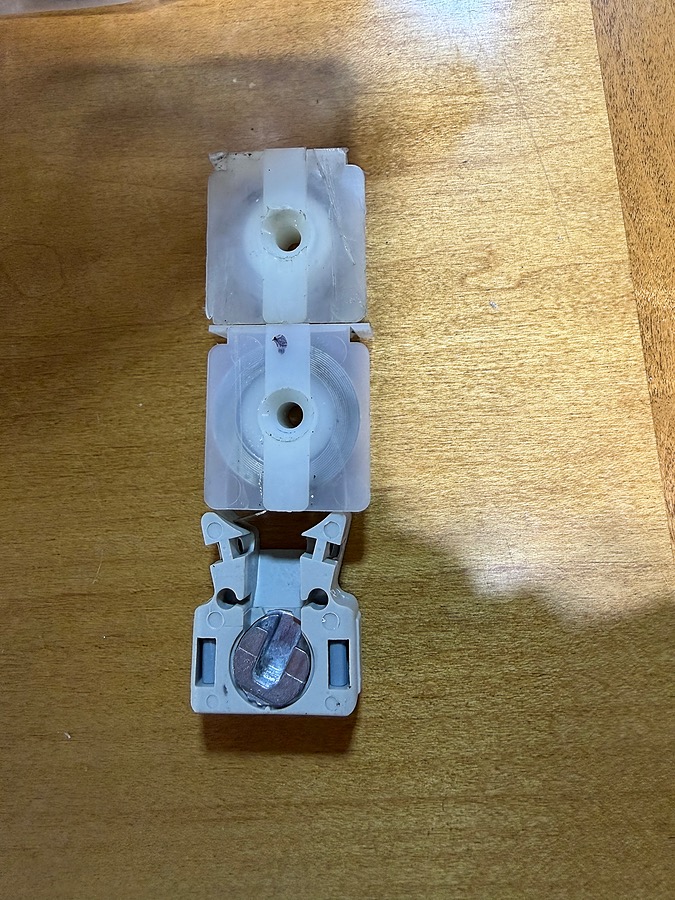

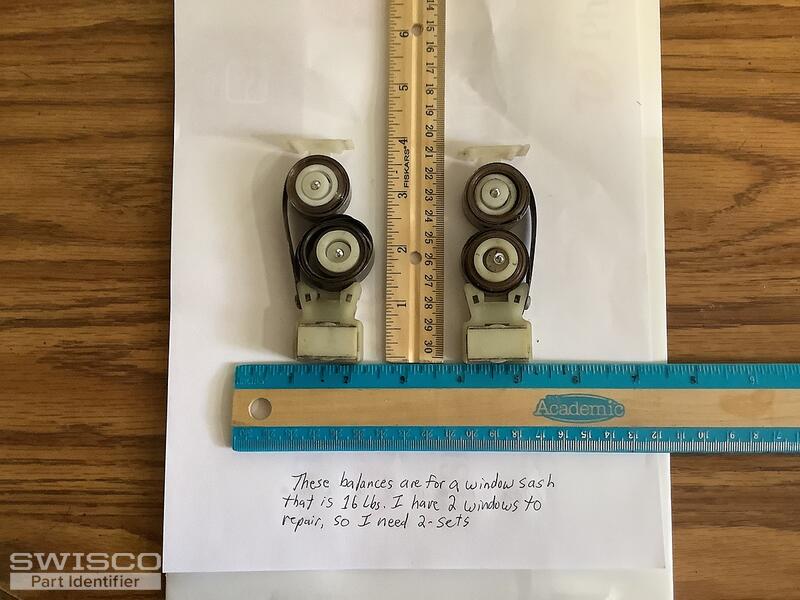

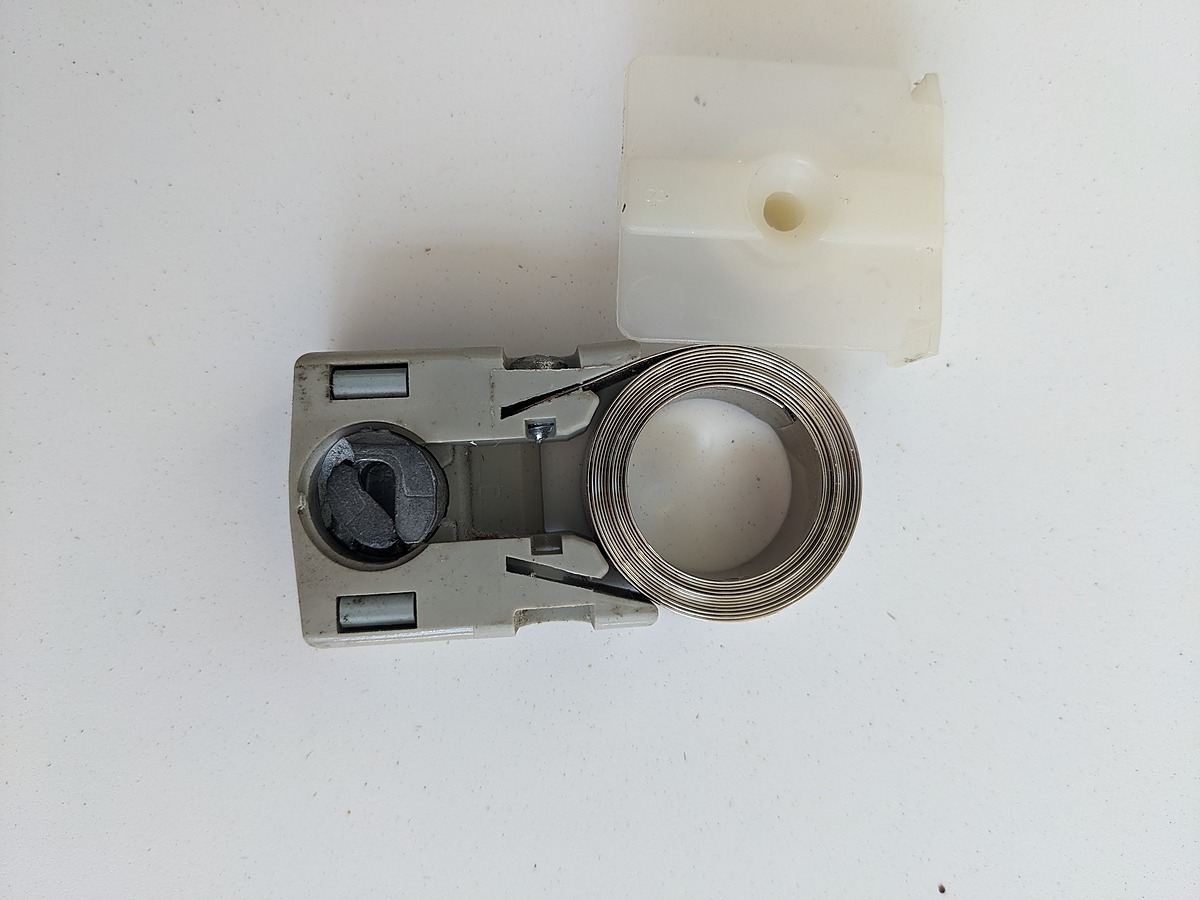

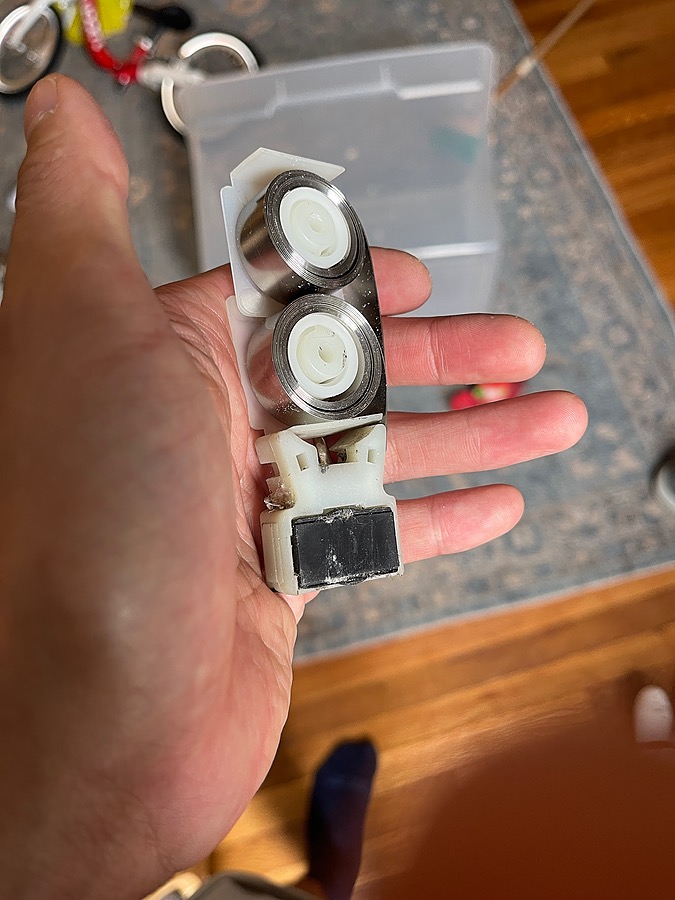

Double Coil Constant Force Balancetop coil is #5 bottom coil is #4 pivot shoe has 4 stamped on it

I'm looking to replace the broken spring for my Champion Double Hung window.

I have a replacement (double-hung - tilt in) window (36"x42") that has defective pivot shoes and could that need replaced that are (1.5" x 2.5") in size. The existing springs have no stamp on them as they're too old. The wondow sash weighs between 28 - 31 pounds. please provide any support if poss ... (cont.)

Do you have any of these

I got suckered in buying Champion windows. They do now follow through with their warrenty. They don't even answer. Have to fix it myself. I have a #5 on the plastic cover and a #10K on the spring roll. Is there a cross part# I can order?

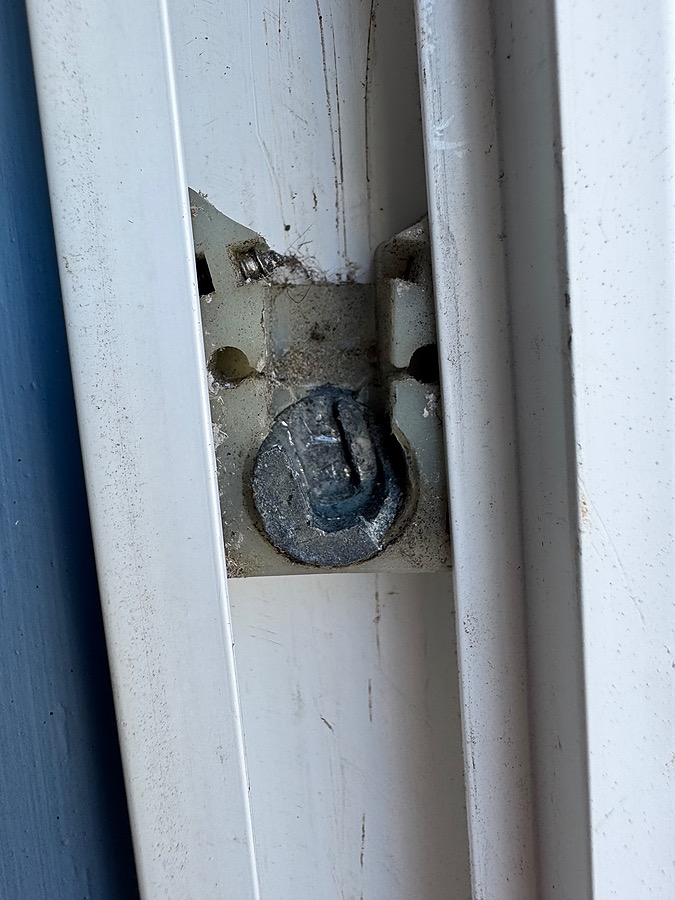

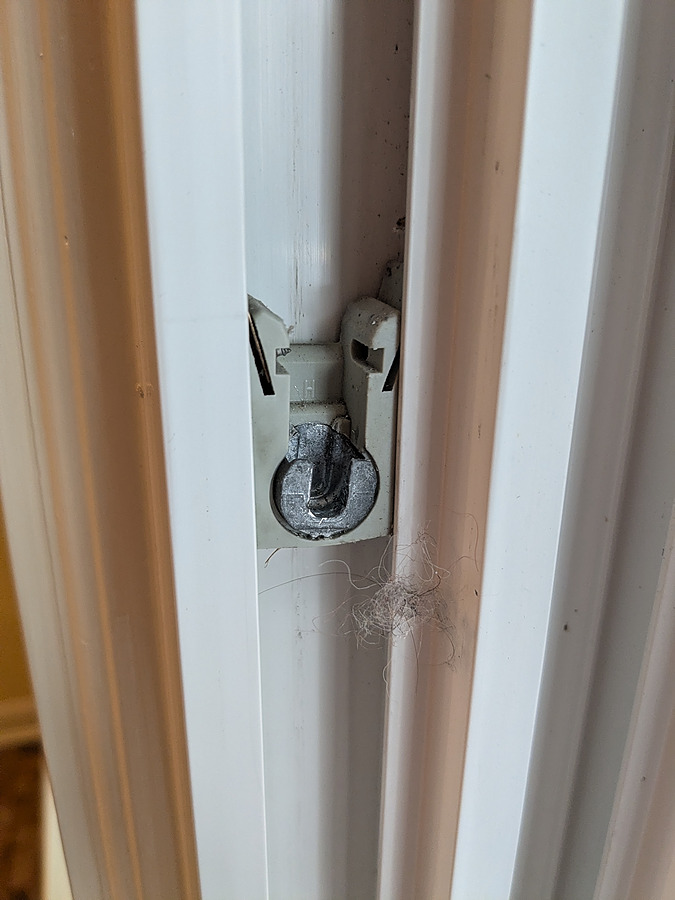

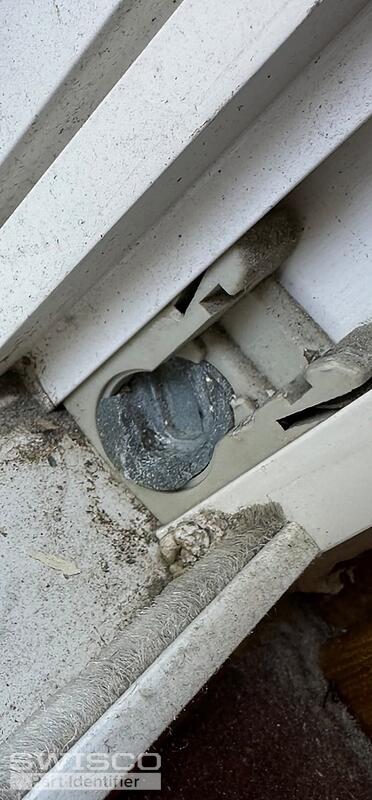

Hello hello I need some help to figure out which piece to order to replace this slide mechanism that has a broken metal rotator piece that interfaces with the stem from the window sash

Looking to find replacements to fix the window

I also have a part number for it PAT6.983.513.5.371 971 this is what it shows on the back of the peace.
