Harvey window pivot lock replacement

Quick Learner from MASSACHUSETTS
I recentlt purchased 15-105 for my windows but realized when i took my locks out they were not an exact match.I have sent several photos to beter help describe them,the windows were made in 1999 and 2000 they are harvey cont. windows i beleive.I would appreciate any help you can provide so i can purchase the correct locks this time.The Dim. are as follows LxWxH 1 1/4x 9/16x 1 1/4

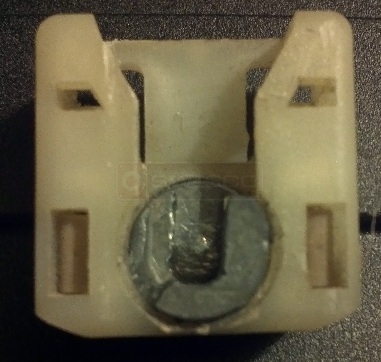

Customer Image 15572
7 Replies
Casey
Casey from SWISCO
SWISCO
Expert
What type of balance mechanism attaches to your pivot shoe?

It looks similar to SWISCO product codes 15-175 and 15-177, these are pivot shoes that work with a coil system.
Quick Learner
It looks like the 15-175 would work but the spring might not attach properly.I will modify the shoe if I have too if this its the best you can do.
Casey
Casey from SWISCO
SWISCO
Expert
What type of spring--or balance--do you have? Is it a coil, a spiral, or maybe even a channel? Once we know what type of balance you have, we may be able to find a closer match.
Quick Learner from MASSACHUSETTS
I will have to inspect the window more closely.From what i have seen without taking anything apart there is a string with a return spring force on it with a flat hook attached at the bottom that fits into the shoe,which is where the types of shoes differ from my orrininal.
Casey
Casey from SWISCO
SWISCO
Expert
I see. Thank you for the information. I might have a part for you to look at that may be closer. I'll post again in this thread as soon as I have more information available.
Casey
Casey from SWISCO
SWISCO
Expert
Thank you for your patience in this matter. Please take a look at our new 15-208 9/16" thick pivot lock shoe. Do you think this might work for you? Please let me know!
