Truth Window Operator Replacement Parts

Question

Hi,

I'm looking to replace a broken Truth operator / crank. One of the cranks uses an awning operator that appears to be broken since the crank spins in place without retracting the operator. I have another operator where I just need to replace the crank since the operator extends / retracts correctly. I'd like to use a crank that folds. I've found the following which I believe should work: 39-375

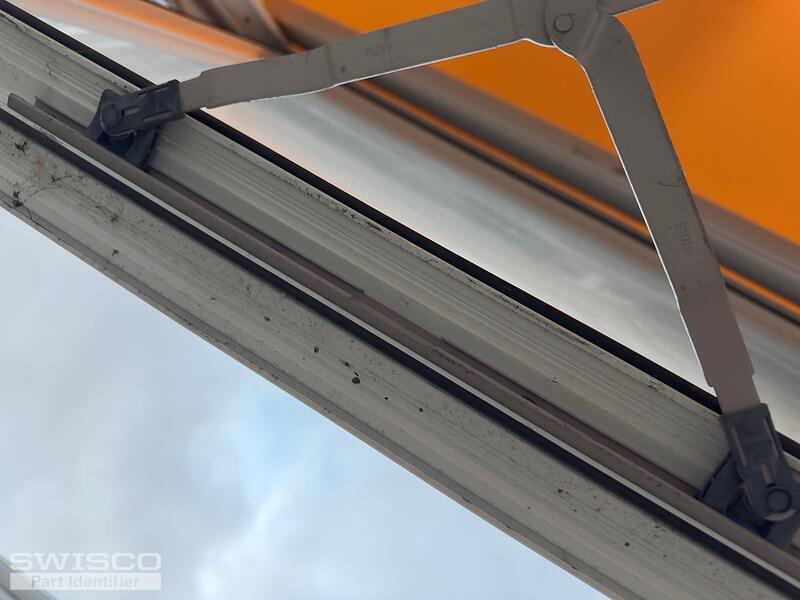

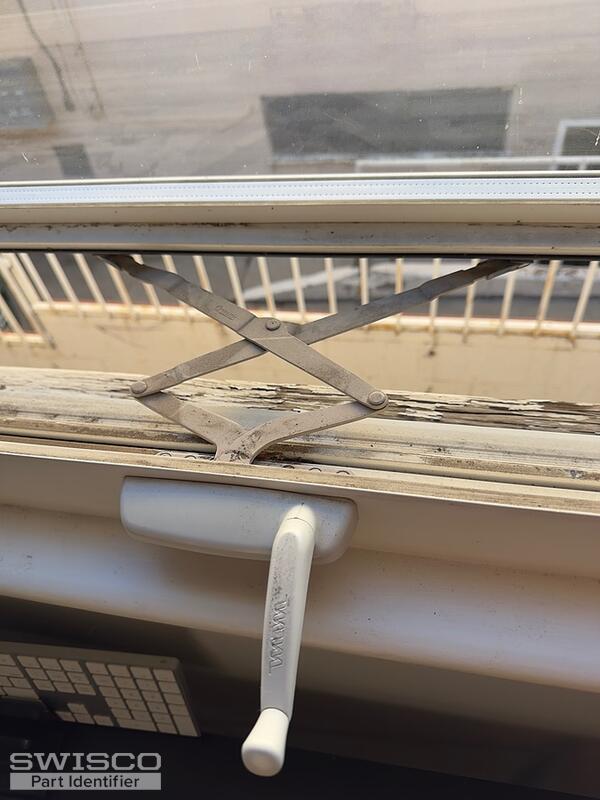

I've included photos of the current setup.

Jasmine · Accepted Answer

Thanks for your post! The damaged operator is stripped, so you'll need to replace the entire operator. It can be replaced with the 39-239B Encore Awning Operator. The stainless steel version is the 39-239C.

You will need the 39-375 cover and handle kit. The 39-536 attaches the arms to the 39-556 awning track. The operators will come with clips at the end of the arms.

Dimensions for 39-239B

Alternate view and dimensions for 39-239B
