Alcoa window parts #1640 and 2040. 9/16" wide.

Start a new Discussion

Home Owner from Dresden, Ohio

May 18, 2020 10:37 am

Picture of balancer included. Also need grid clips for the munton grids-Picture included.

4 user uploaded images

4 Replies

Bob from SWISCO

May 20, 2020 10:21 am

Can you show us the nylon fittings on the other end of these balances? We need to see both sides to confirm their identity. For your muntin clips, take a look at our 55-176. Look it over and see if you think these could work as replacements.

Home Owner from Dresden, Ohio

May 20, 2020 9:54 pm

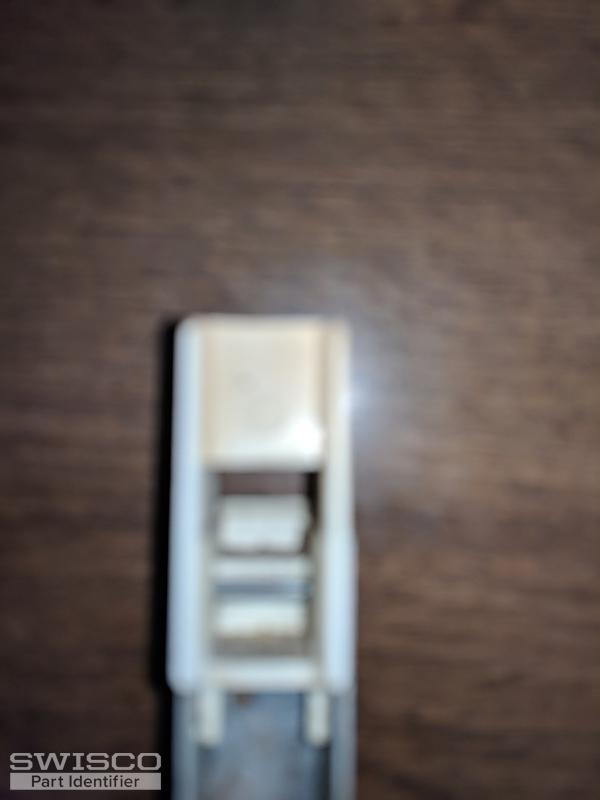

I have enclosed some more pictures. Regarding the grid clips, I don't think they will work. Let me know if you need anything else.

5 user uploaded images

Bob from SWISCO

May 21, 2020 7:47 am

See our S351-17 or S390-17, as well as either our S351-21 or S390-21. The only difference between the Series 351 and Series 390 is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. For the 17" balances you'll need a stamp option of 1640, and for the 21" balances a stamp option of 2040.

Can you show me another picture of your grid clip? The 55-176 is the closest we have in shape to my eye, and despite it being an Andersen product we've had people use it for non-Andersen windows before just fine. But a different angle might clue me in to if we have alternatives. Thanks.
