Broken parts for Milgard window

A home owner from Tarzana, CA says:
June 9, 2015
I am looking for windows Balance mechanism and Pivot Bar for my Milgard window. It looks like your site is not able to except another pictures.("add another image" does not work)
Could you please help me identify the part number which I need to purchase. The broken Pivot Bar total length is about 2 7/8 inches

Please let me know how I can send you more pictures.

Thank you,
Leon

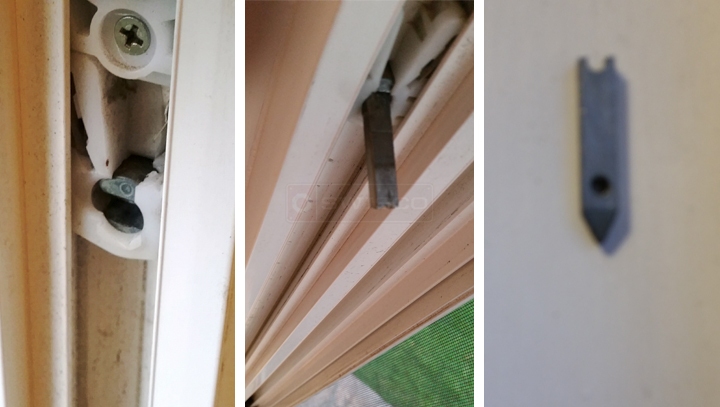

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
June 11, 2015
Hello, Leon. The balance looks like our Series 140 and the pivot bar looks like our 26-405. Please review this hardware and see if you agree.
A home owner from Tarzana, CA says:
June 11, 2015
Hi Paul,

It is not 26-405 pivot bar. It has T-type end (not rounded). Sorry it was not clear from the picture. Please see attached drawing.
Paul I need your help. Please advice what is my option?

Thank you,
Leon
Profile picture of Tom
Tom from SWISCO responded:
June 11, 2015
The 26-405 works with our Series 140. If you think you can use the Series 140 balance as a replacement, then as long as the hole spacing of the 26-405 is the same as your old pivot bar it will fit inside of it. The round end locks into the pivot.

However, if the Series 140 cannot work as a replacement balance, let me know! We may need more information about your balance before we can recommend anything else.
8 lb Series 140 Quick-Tilt, Single
8 lb Series 140 Quick-Tilt, Single
S140-08
$8.28
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
