EFCO door bottom seal : SWISCO.com

Purchasing Agent from Missouri

Sep 8, 2022 2:33 pm

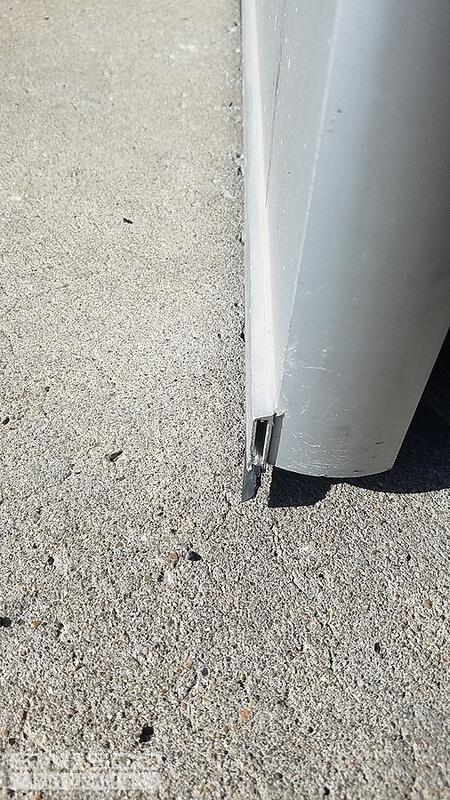

I am trying to locate replacement rubber seals for the bottom of an EFCO door. It appears to be similar to a windshield wiper and slides in from the end (see photo). Thank you, Matt

1 user uploaded image

8 Replies

Tom from SWISCO

Sep 12, 2022 2:40 pm

Hello, Matt. I'm not sure if we sell this exact type of seal. Before I recommend anything, can you show me a clearer shot of the end profile? Can you also tell me the width of the piece that slides into the door and the overall height? From there, I'll do my best to find you a suitable replacement.

Purchasing Agent from Missouri

Sep 14, 2022 3:21 pm

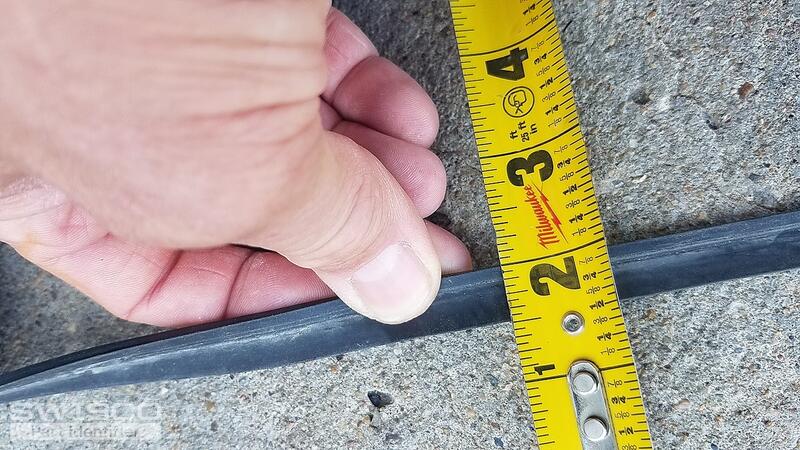

Here is a better image. It is 1/2 inch tall, and 1/8 inch wide where it slides into the door.

1 user uploaded image

Tom from SWISCO

Sep 15, 2022 8:24 am

Thank you! We only sell a couple sweeps with a 1/8" base, but none of them are also 1/2" tall. See our 58-162 and 58-149, which are our best options at this time. Review our dimensions and see what you think.

Profile view of 58-162

Alternate image for 58-149

Purchasing Agent from Missouri

Sep 15, 2022 10:04 am

I think the 58-162 will work just fine. Thank you so much for your assistance.

Tom from SWISCO

Sep 15, 2022 11:05 am

You're very welcome. Please let me know if you needed anything else in the future.

Purchasing Agent from Missouri

Sep 15, 2022 11:27 am

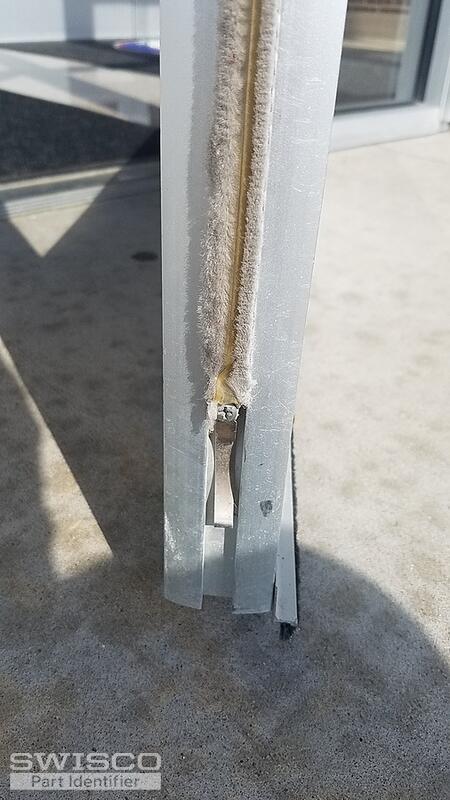

Actually, I am also looking for a weatherstrip astragal for a Kawneer door. The dimensions appear to be 1/2" wide by 1/2" thick.

1 user uploaded image

Tom from SWISCO

Sep 15, 2022 12:57 pm

Sure, I actually think that might be a match for our 58-085. This is commonly used on Kawneer doors and even uses the same kind of spring to install that your door has there.

Profile diagram of 58-085
