Ellipse 9-1/2" operators and crank handles

Quick Learner from Plymouth Michigan

 Ellipse Style Single arm operators 9-1/2" and crank handles

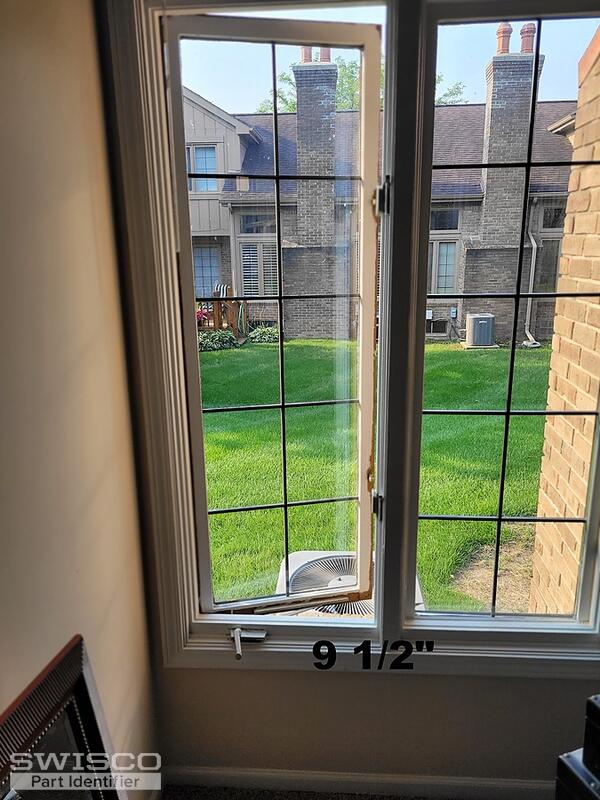

For the photo labeled 20230821_091208: I need a qty. of 1

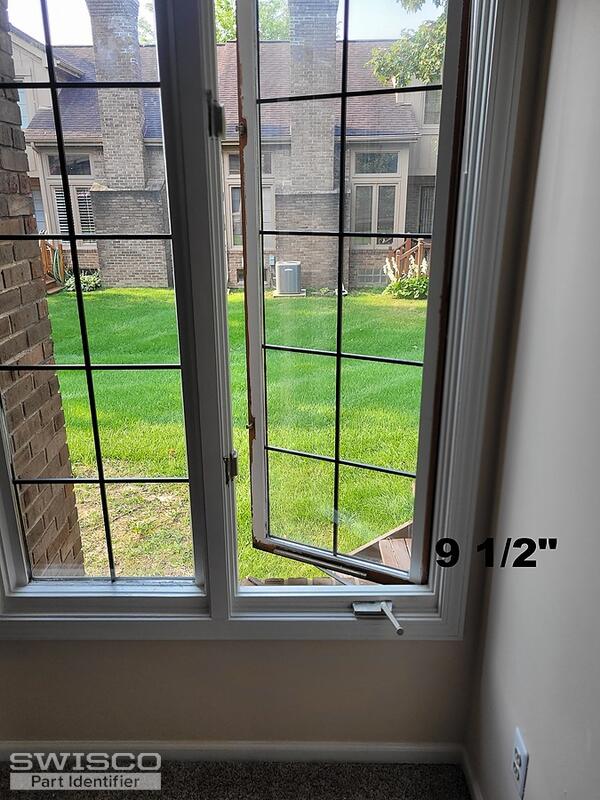

For the photo labeled 20230821_091106 : I need a qty. of 2

All 3 should be the Ellipse Style single arm operators and handles in beige

Can you help me determine which parts #'s I need to order?

Thank you,

Tonya

Herriman & Associates, Inc.

2 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I'd recommend starting by comparing the specifications of the 39-027E and 39-028E to your assembly. Note that this assembly uses a nylon wheel at the end of the arm that connects to the track. We also offer the 39-114L or folding 39-205 handles for these operators. Thanks for posting!

Dimensions for 39-027e
Dimensions for 39-027e
