Ellipse Style Single Arm Operator, 9-1/2"

Product Code: 39-027E

Ellipse Style Single Arm Operator, 9-1/2"

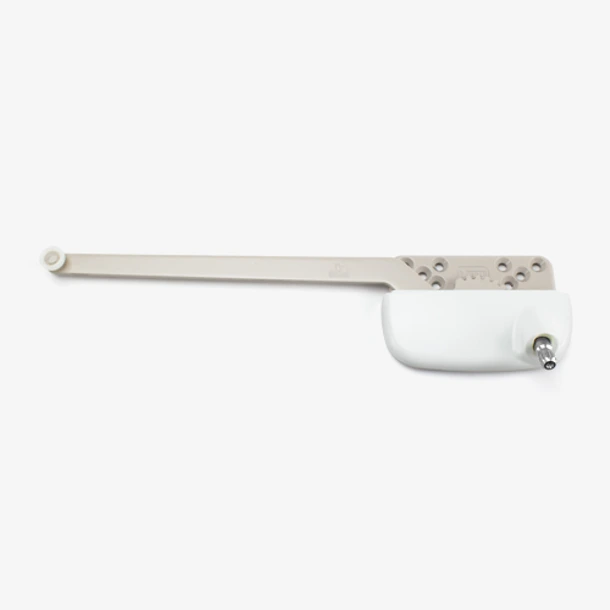

Main product image of the 39-027E Ellipse Style Single Arm Operator, 9-1/2"
Dimensions for 39-027e

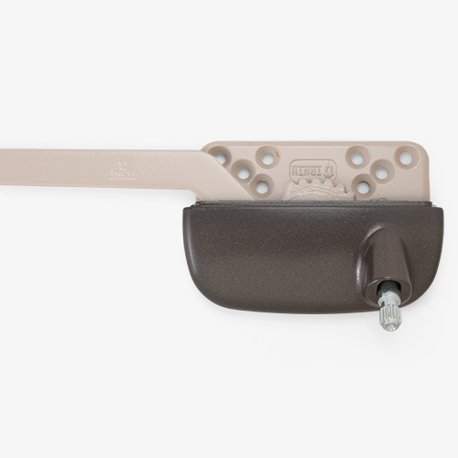

View of 39-027E in the Dark Bronze color option.

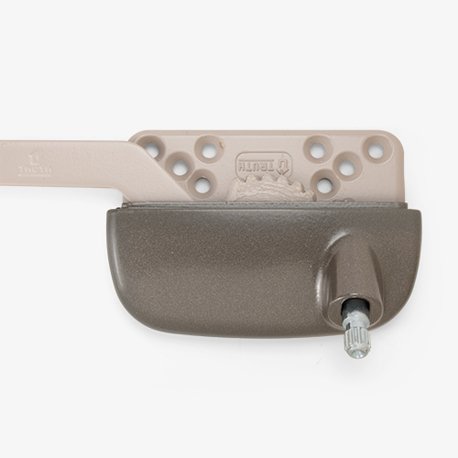

Alternate color, clay.

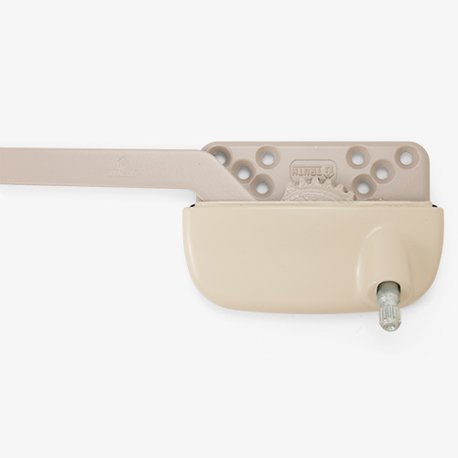

View of 39-027E in the Beige color option.
$19.98/each
Quantity Price
1-4 $19.98
5-9 $18.45
10-24 $16.85
25-49 $16.07
50+ $15.30
Please Note: Bulk pricing applies only to purchases of the same option
Option:
beige beige
clay clay
dark bronze dark bronze
add $0.45
white white
Product Description
This is a sill mount Truth Hardware single arm crank operator used to open and close wood, metal, and vinyl casement windows.
  • See SWISCO product 39-028E for the opposite handed version.
  • Will provide a full 90 degree window opening.
  • 9-1/2" long arm, measured from wheel center to gear center.
  • 11/32" spline; handle sold separately.
  • Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
  • Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.
