Vinyl window balance

Start a new Discussion

Home Owner from Brewster, NY

Nov 10, 2025 2:50 pm

Metal part is 24" OAL.
Window measures 26" high x 33" wide

2 user uploaded images

3 Replies

Quick Learner

Nov 11, 2025 5:10 pm

Removed balance. Metal channel measures 0.565” or 25/32”square.
The sash weighs 21 lbs.

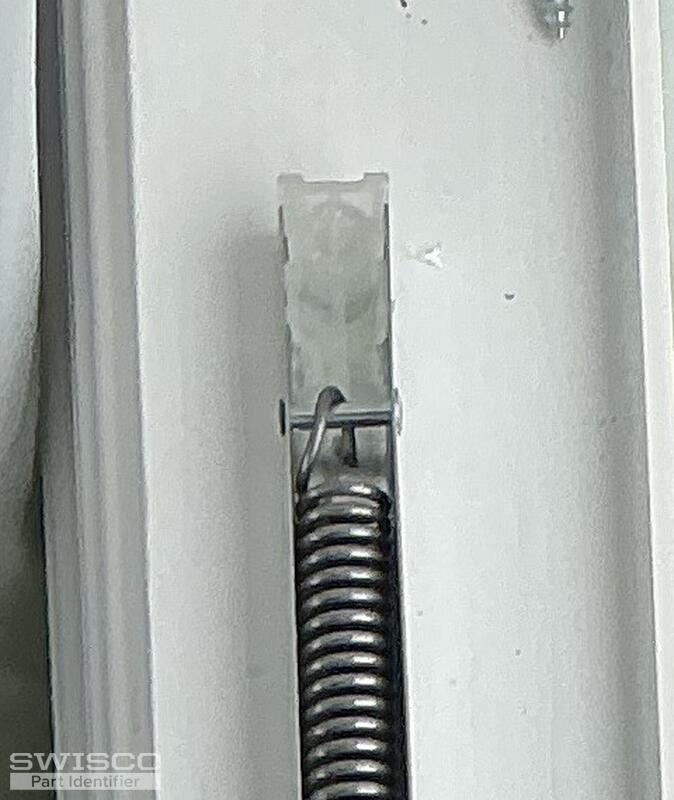

It looks like there's a metal loop at the end of a cord. The other end of the channel balance has plastic.

2 user uploaded images

Emily from SWISCO

Nov 14, 2025 10:36 am

Hi there!

Thank you for reaching out to us. Our S770-24 would be our best option. This uses a different clip than yours, but it will still fit into the pivot shoe the same way. You can also select the 24C stamp option for a sash weighing 17 to 22 pounds.

Please let us know if you have any questions!
