S770-24

24" Series 770 Balance

Product Code: S770-24

Main product image of the S770-24 24" Series 770 Balance

Alternate view of the S770 balance displaying the end of the channel balance.

$12.38/each

Quantity	Price
1-11	$12.38
12-49	$11.14
50-99	$10.52
100-249	$9.90
250+	$9.28

Please Note: Bulk pricing applies only to purchases of the same option

Discounts starting at 12 pcs.
View Bulk Pricing

Product Description

This is a Series 770 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 24" long metal channel.
Comes fully assembled with a 19-036 top mount screw support and a 15-043 terminal clip attached at the bottom and will be ready to install out of the box.

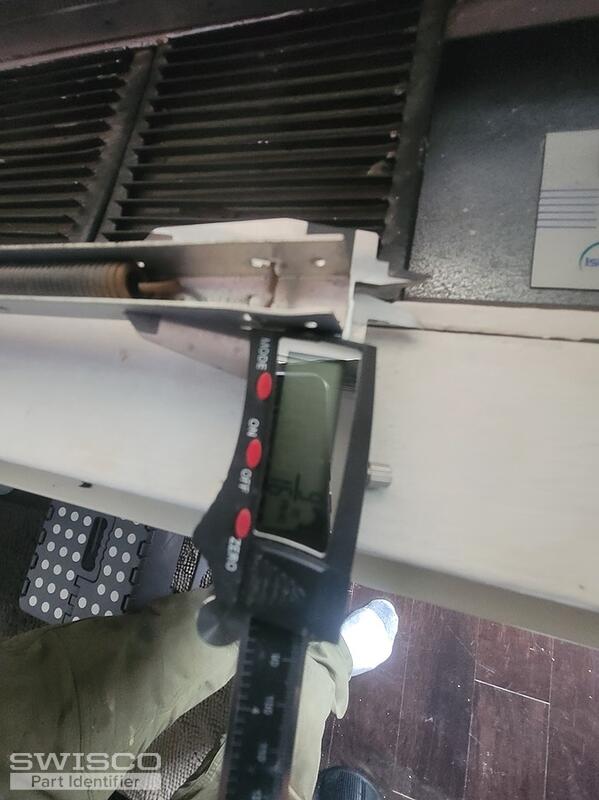

The width of the metal channel measures 9/16".

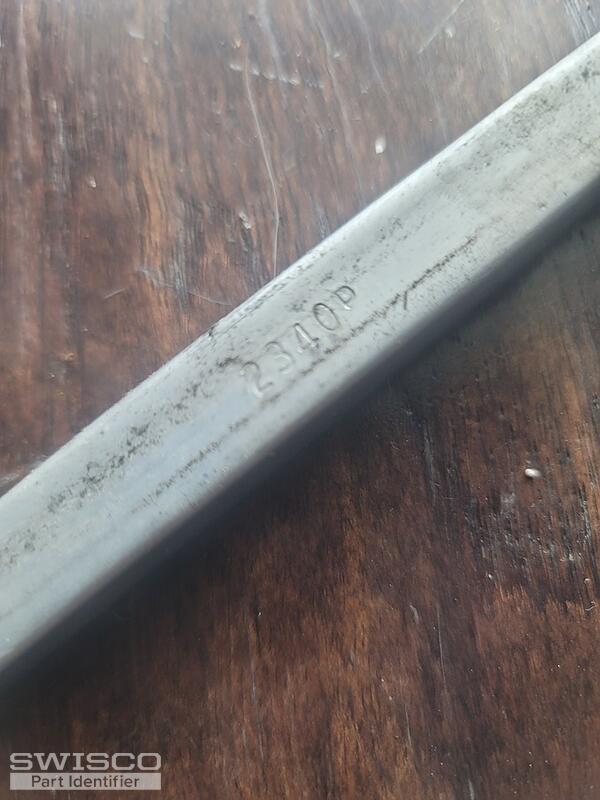

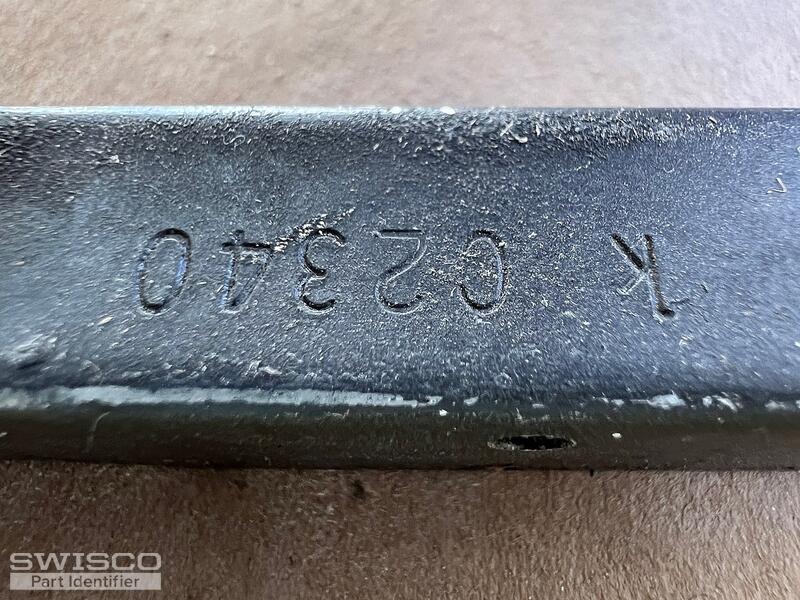

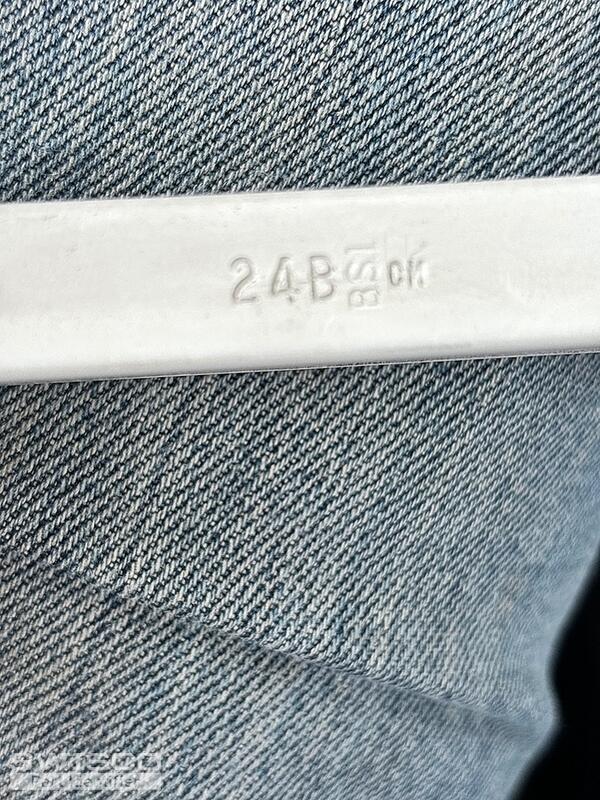

The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.

Stamp Option	Sash Weight Range
B	11 to 17 lbs
C	17 to 22 lbs
D	22 to 25 lbs
E	25 to 28 lbs
F	28 to 30 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Helpful Tip!

This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

Helpful Tip!

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.

Related Item(s)

Pivot Shoe, 9/16" Thick

15-178

$3.70

Pivot Lock Shoe, Brown Brake Pad

#8 x 1" SS Installation Screw

75-005

$9.37

Spiral Balance Charging Tool for Non-tilt Windows

Customer Questions & Answers

Discussion	# Of Replies	Last Post Date
balance	8	May 25, 2022
Double hung tilt windows	4	Mar 30, 2022
window balance	2	Oct 2, 2020

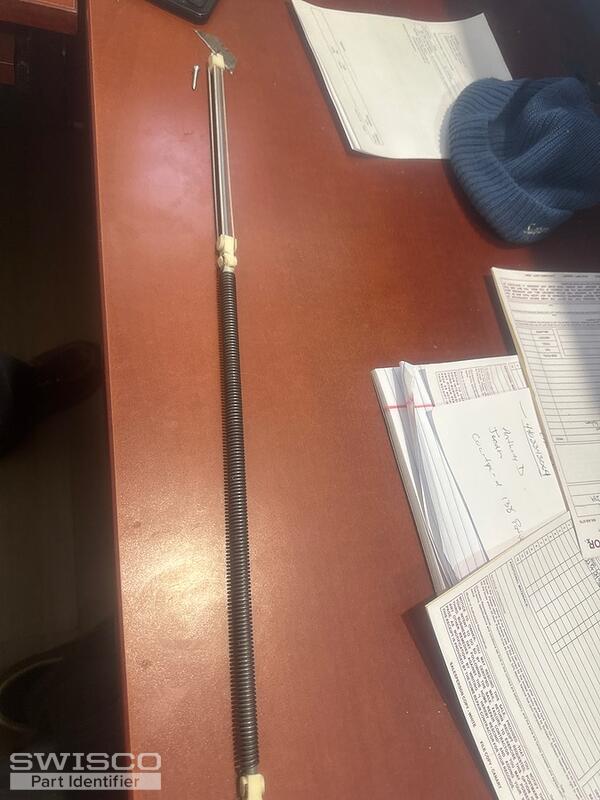

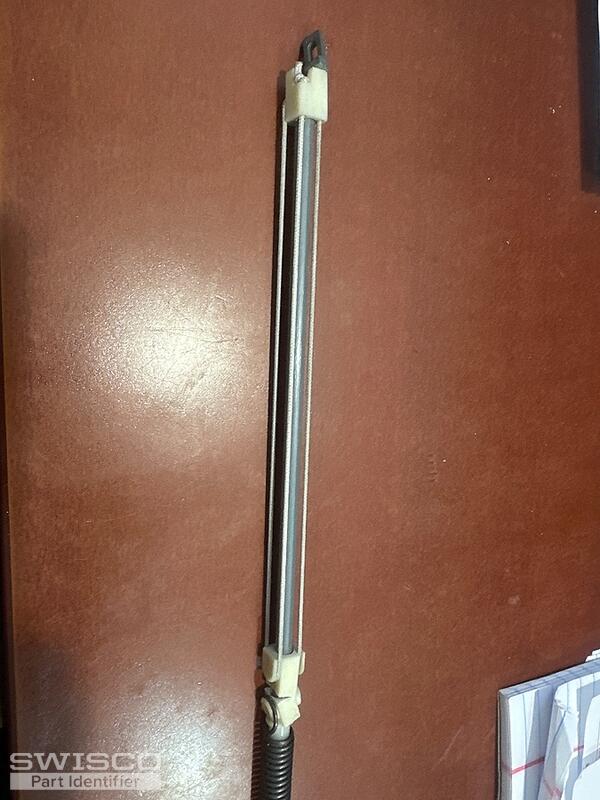

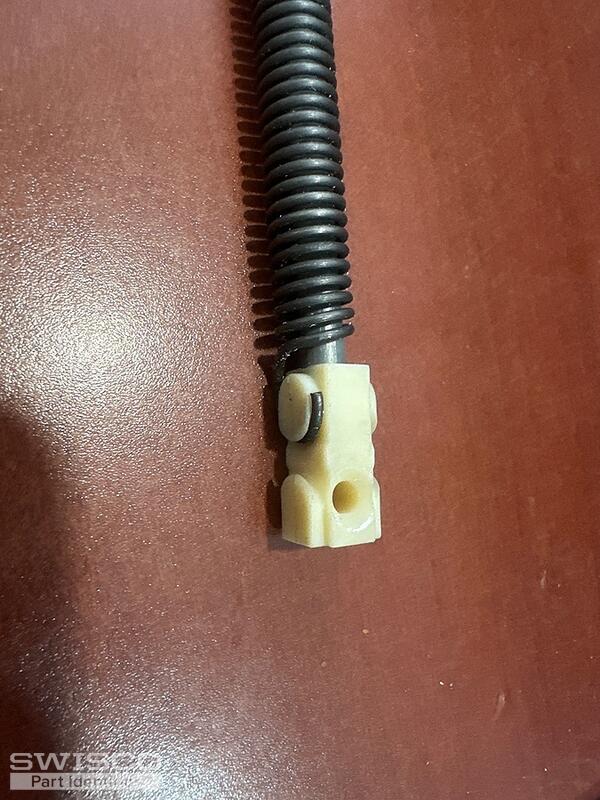

Block and Tackle Balance for Tilt Double Hung Window	2	Sep 7, 2020
window balance and shoe	9	Sep 4, 2020
channel balance I.D.	4	Jun 9, 2020

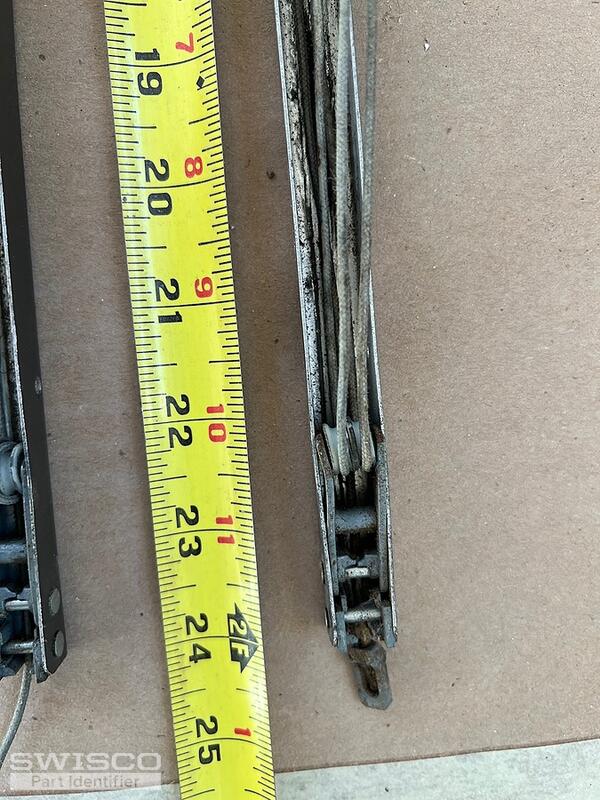

2 parts. Window channel. 24". Labeled 24d pc bsi. And window block	2	Jun 7, 2020
