Window channel balance

Quick Learner from Oregon
Jul 28, 2019 3:15 pm

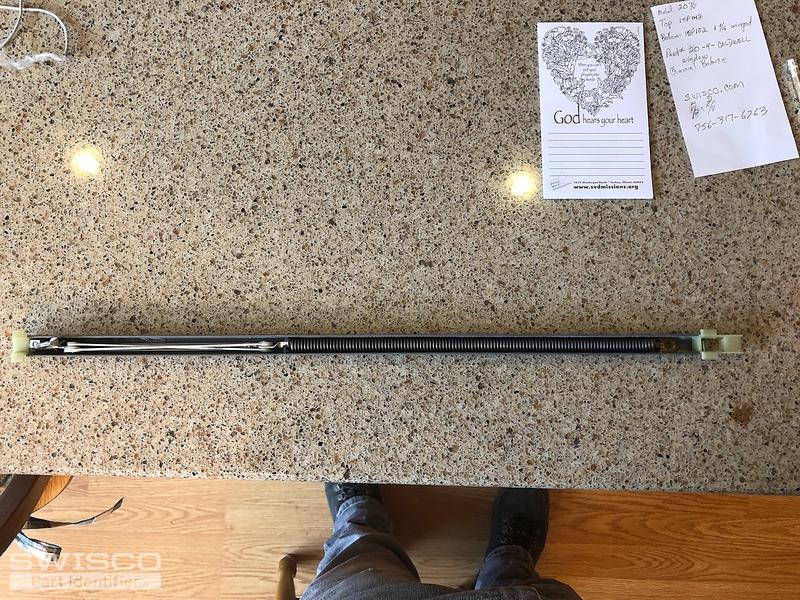

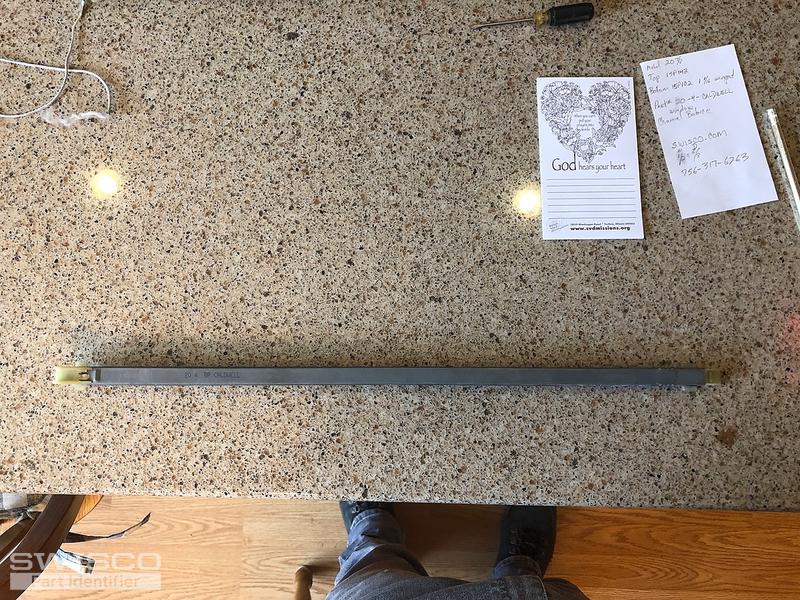

Metal long 20 7/8
Wide 1/2
Deep 5/8

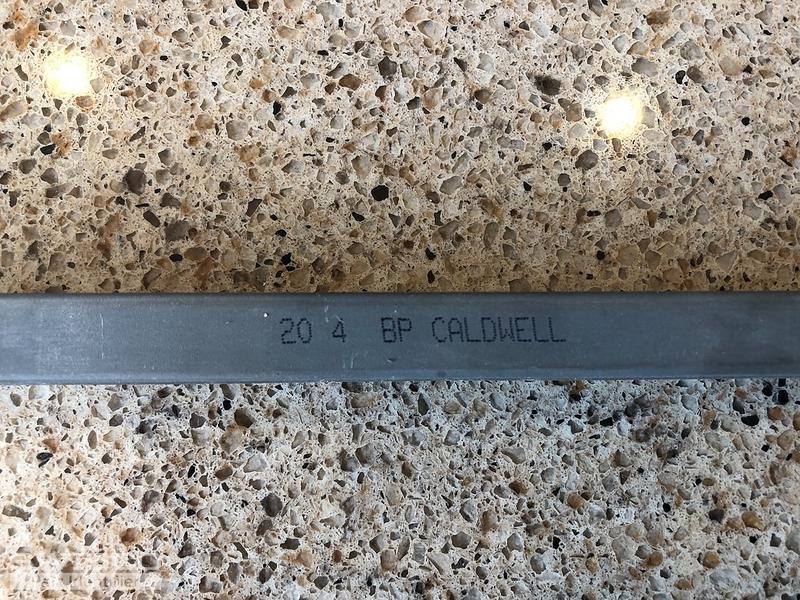

Part # 20. 4. BP Caldwell
997C8CA2-9CF6-475A-ADCE-C56AF0B3EC05 675B57E8-862C-4839-961E-2FB961B151EB 9507957F-7DD3-4D5B-AB8E-79D5B1EC24A0
3 user uploaded images
1 Replies
Casey
Casey from SWISCO
Aug 1, 2019 9:53 am
SWISCO
EXPERT

Hi there, thanks for posting! Your balance looks to be our S380 series or S385. You'll need to measure the depth of your bottom shoe to decide between then two. If your shoe has a depth of 1", you'll need the S380-21, but if it measures 1-3/32", you'll need the S385-21. In either case, you can use option 2040 to correspond with the stamp in your photo. Let me know if you have any additional questions.
