Product Code: S380-21

21" Series 380 Channel Balance

Name: 21" Series 380 Channel Balance
SKU: S380-21
Price: 9.38 USD
Availability: InStock

$9.38

Quantity	Price
1-11	$9.38/ea
12-49	$8.44/ea
50-99	$7.97/ea
100-249	$7.50/ea
250+	$7.04/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 380 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 21" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
Comes fully assembled with the 19-005 top and 15-005 (1" deep) bottom fittings and will be ready to install out of the box.
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
Can work for either the left or right side of the window interchangeably.

Stamp Option	Sash Weight Range
2010	5 to 8 lbs
2020	8 to 12 lbs
2030	12 to 15 lbs
2040	15 to 23 lbs
2050	23 to 27 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

Helpful Tip!

The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.

Window Balance Track

Metal section is 21" long, 9/16" wide and 5/8" in depth. The number on part is 2040 CA / B.S.I. In need of 2 (1 pr) Thank you

CALDWELL 20 4 FJ Window Balance Replacement

Hello, I am looking for replacements for my window balances. The length of the metal piece of the current window balance is 21". I have attached photos for reference. Thank you so much for your assistance.

Caldwell 20-4

Caldwell 20 4 HQ Please help identify.? How do I tell the wait

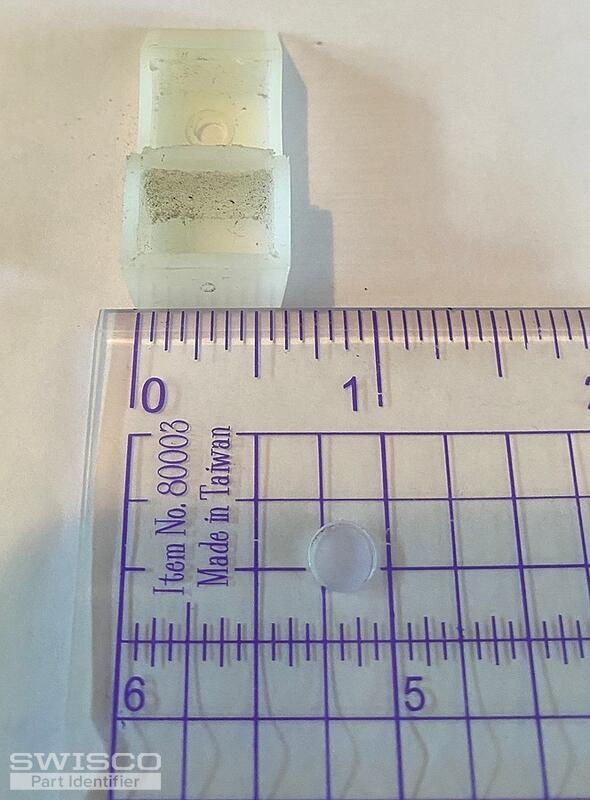

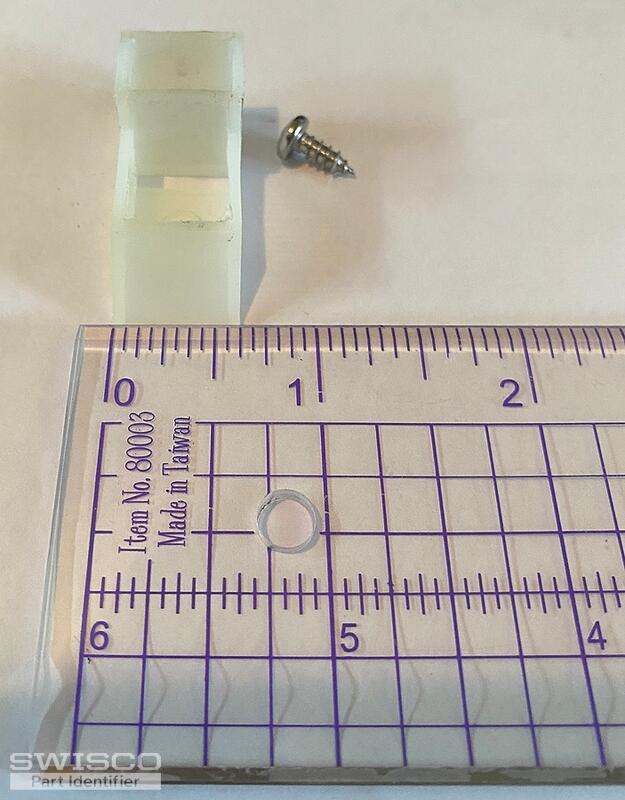

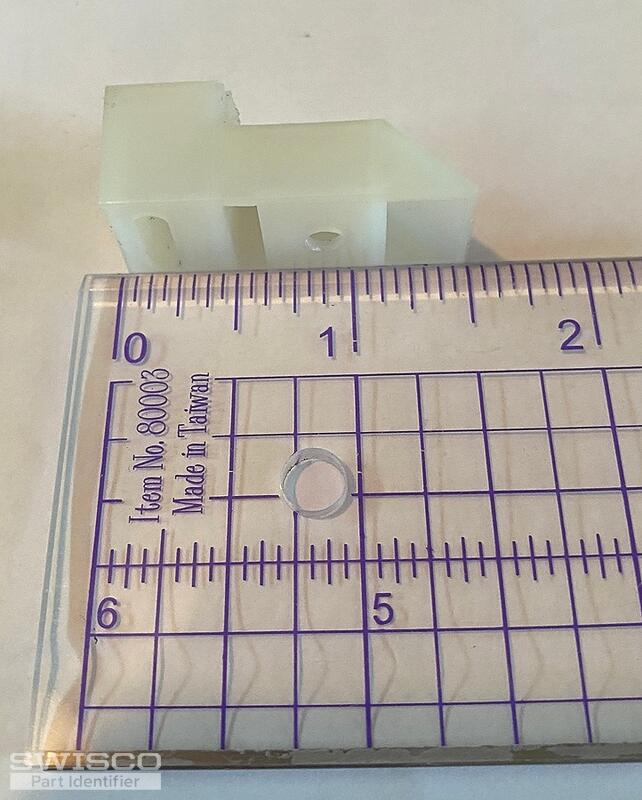

Ordering a pair (2) of plastic inserts for one (1) window

These plastic inserts are attached with a small screw into the window channel. This allows the window channels to catch and help slide the window up/down. I recently ordered part S380-21 (otion: 2040) 21" Series 380 Channel Balances for the exact same window, but didnt realize one of the two plastic ... (cont.)

Balance spring

Balance sash spring they do not stay in place seems like missing clips to keep them in track
