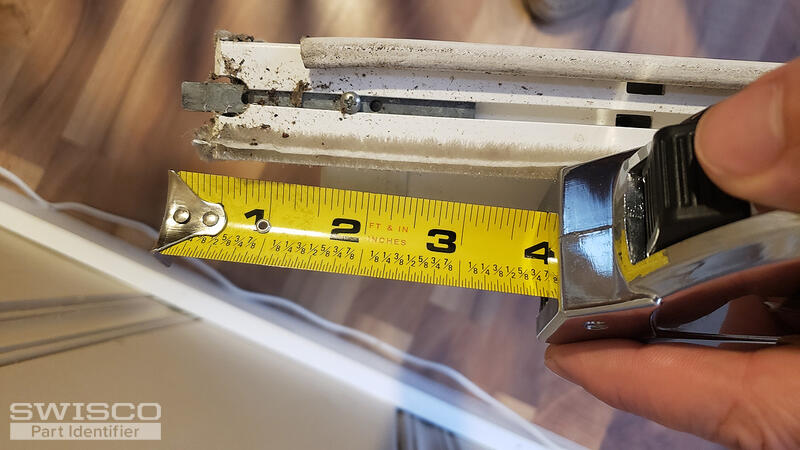

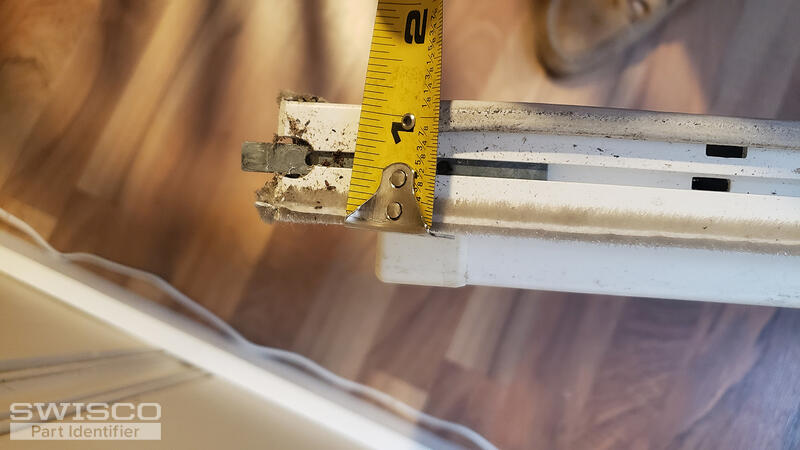

The pivot bar is 3" long with a about a 1/4" offset as shown in the pictures. Also, it is about a 1/4" wide and about 3/16" deep excluding the offset.

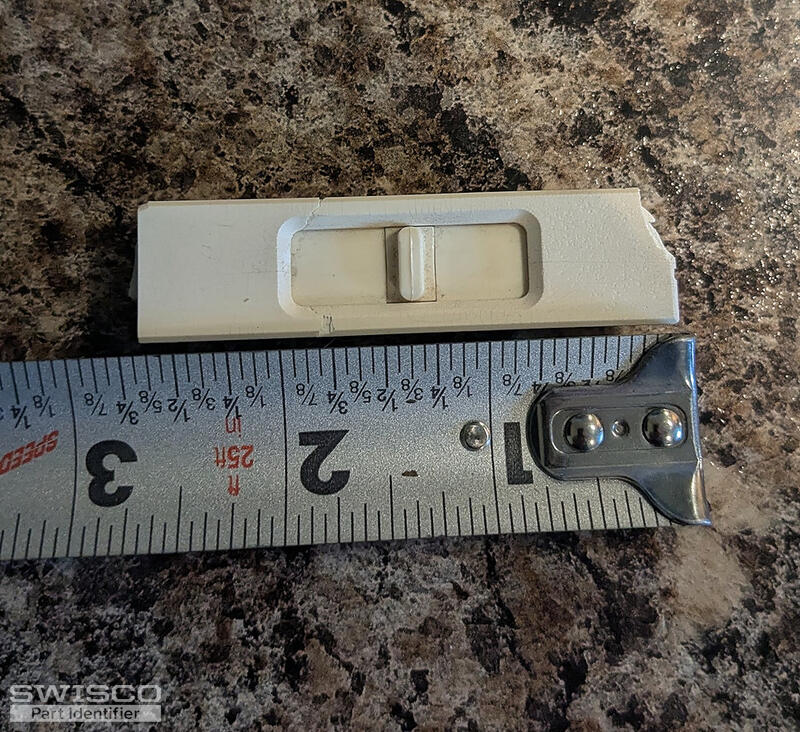

The surface latch is 2 3/4" long as shown in the pictures and about 3/8" deep by about 3/4" wide. I am looking to get these in both left and right sides.
pivot part and the surface latch
Quick Learner from Rolla MO
Oct 13, 2025 11:35 am
4 user uploaded images
5 Replies
Emily from SWISCO
Oct 17, 2025 10:26 am
Hi there!
Thank you for reaching out to us. Your tilt latch reminds me of the 26-243A and 26-244A. We recommend that you double-check your measurements and compare them with ours to see how they match up.
Dimensions for 26-243A
Dimensions for 26-243A
Dimensions for 26-244A
Dimensions for 26-244A
I don't recognize the pivot bar, however. I'm going to consult one of our senior experts, so we'll reach back out ASAP.
Paul from SWISCO
Oct 20, 2025 8:03 am

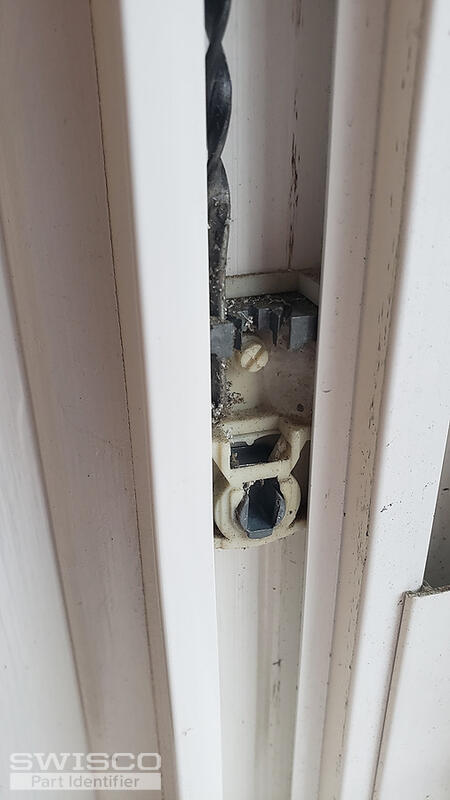

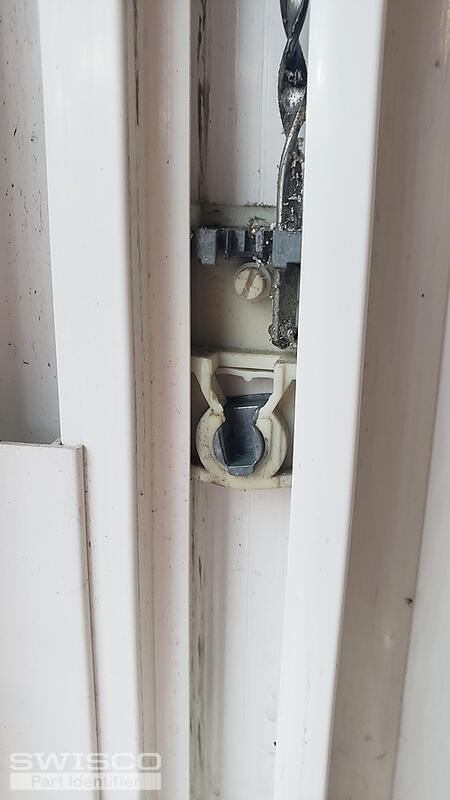

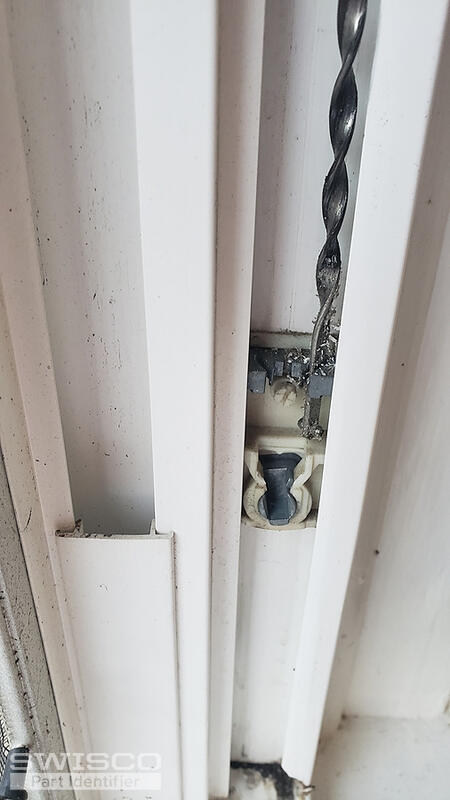

Could we please see the pivot shoe that your pivot bar fits into and the bottom of the sash where your pivot bar is attached?
Quick Learner from Rolla MO
Oct 20, 2025 9:55 pm
I hope this helps....
5 user uploaded images
Paul from SWISCO
Oct 21, 2025 9:57 am
Thank you! Considering your pivot shoe and how the pivot bar connects to the bottom of the sash, I recommend using our 3" steel pivot bar, 26-040. The offset is not very critical. The straight bar adds strength and will not affect the operation of the window sash.
Dimensions for 26-040
