1/2 inch, 18" long channel balance from a 2000's Milguard window

A home owner from Portland, Oregon says:
April 26, 2021
Hello!

The cord in our channel balance just broke the other day and I'm struggling to pinpoint which specific balance this is.

It's a 1/2" (or 9/16") channel, 18" long, with the markings "17 4 AT Caldwell".

The inside of the fixed part of the glass window itself has the markings "0315 305443.003 DSCLMG5 08MAY2000" so obviously the window was manufactured on the 8th of May, 2000.

Let me know if you need more photos or info!

Thanks!
Darin

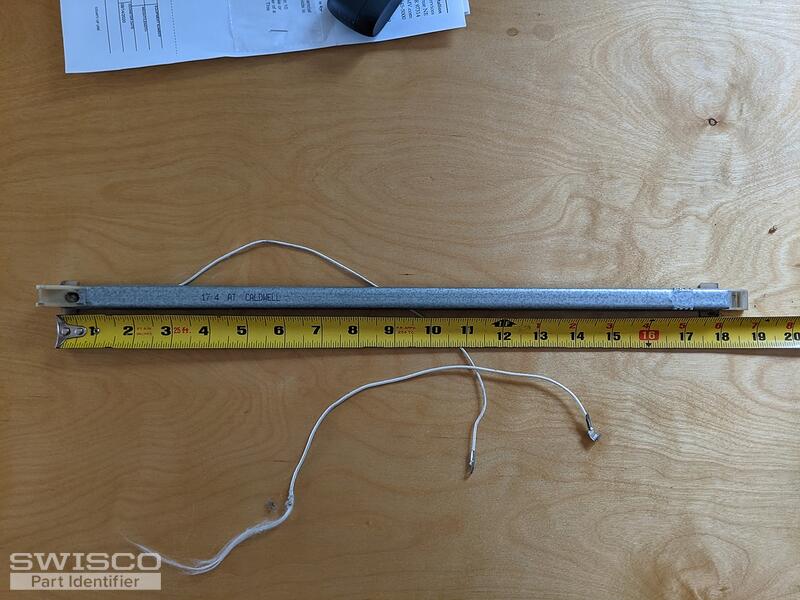

Thumbnail of the uploaded file named PXL_20210426_170508225.jpg

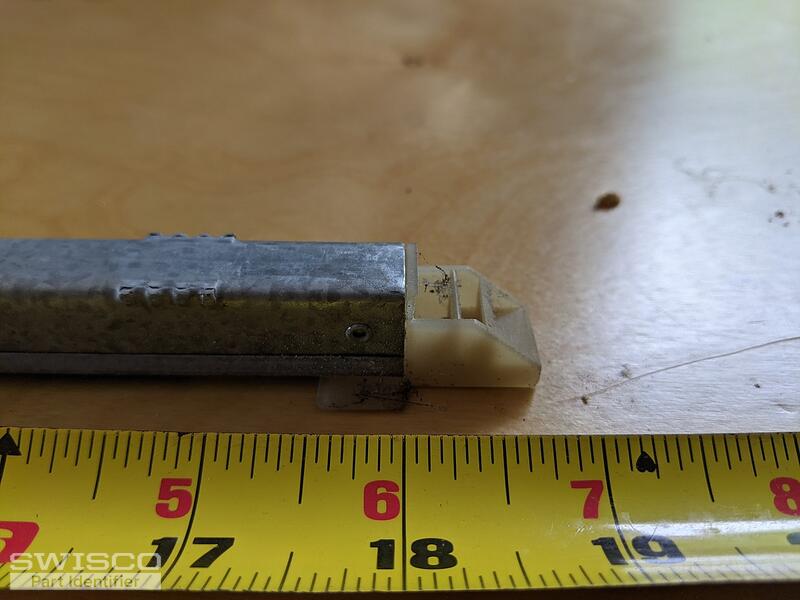

Thumbnail of the uploaded file named PXL_20210426_170527458.jpg

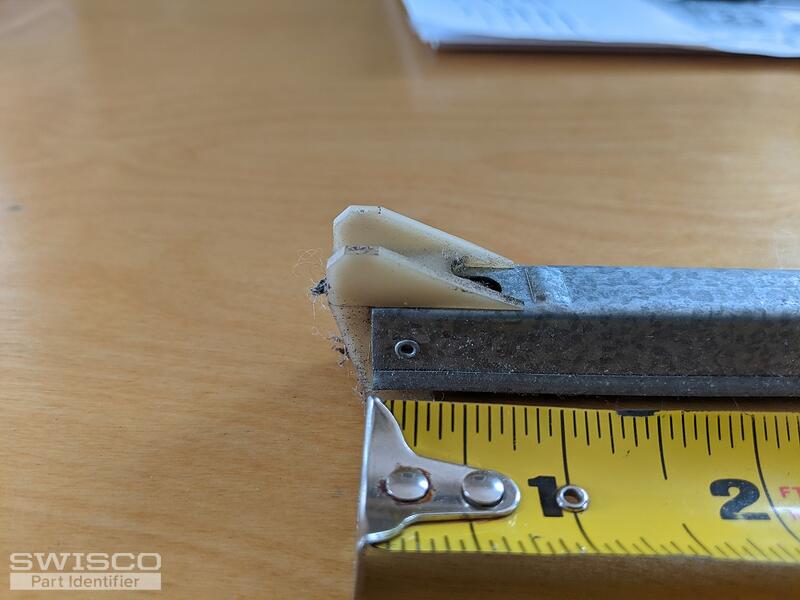

Thumbnail of the uploaded file named PXL_20210426_170531621.jpg

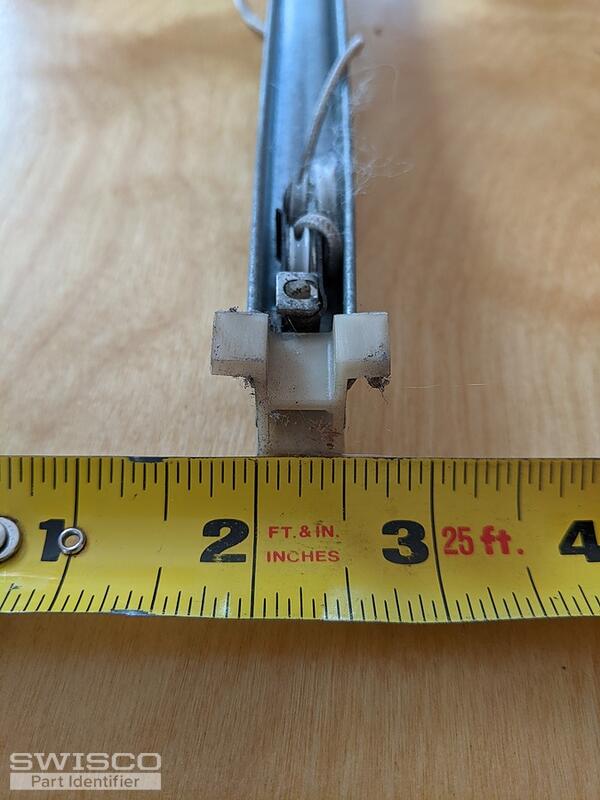

Thumbnail of the uploaded file named PXL_20210426_170610014.jpg

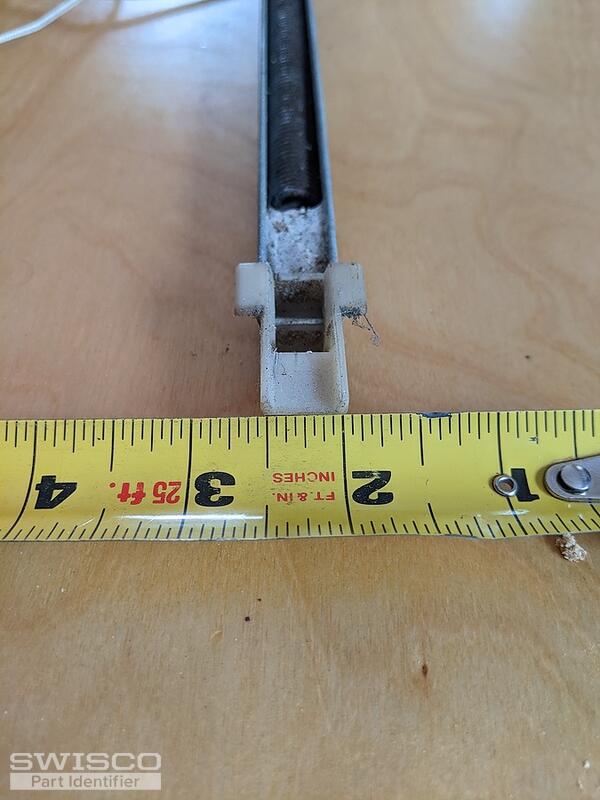

Thumbnail of the uploaded file named PXL_20210426_170625668.jpg
Profile picture of Bob
Bob from SWISCO responded:
April 28, 2021

Hi Darin. This appears to be either our S380-18 or S385-30. The only difference between these two balances is the depth of the bottom nylon shoe. See the picture below that illustrates the difference. In either case, for a stamp option choose 1740.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from Portland, Oregon says:
April 28, 2021
Thanks for the help! That distance in your photo measures 1.08" on my balance using digital calipers, and 3/32" is 0.09", so that means S385.

Thanks again!
Darin
