18" Series 380 Channel Balance

Product Code: S380-18

18" Series 380 Channel Balance
Main product image of the S380-18 18" Series 380 Channel Balance

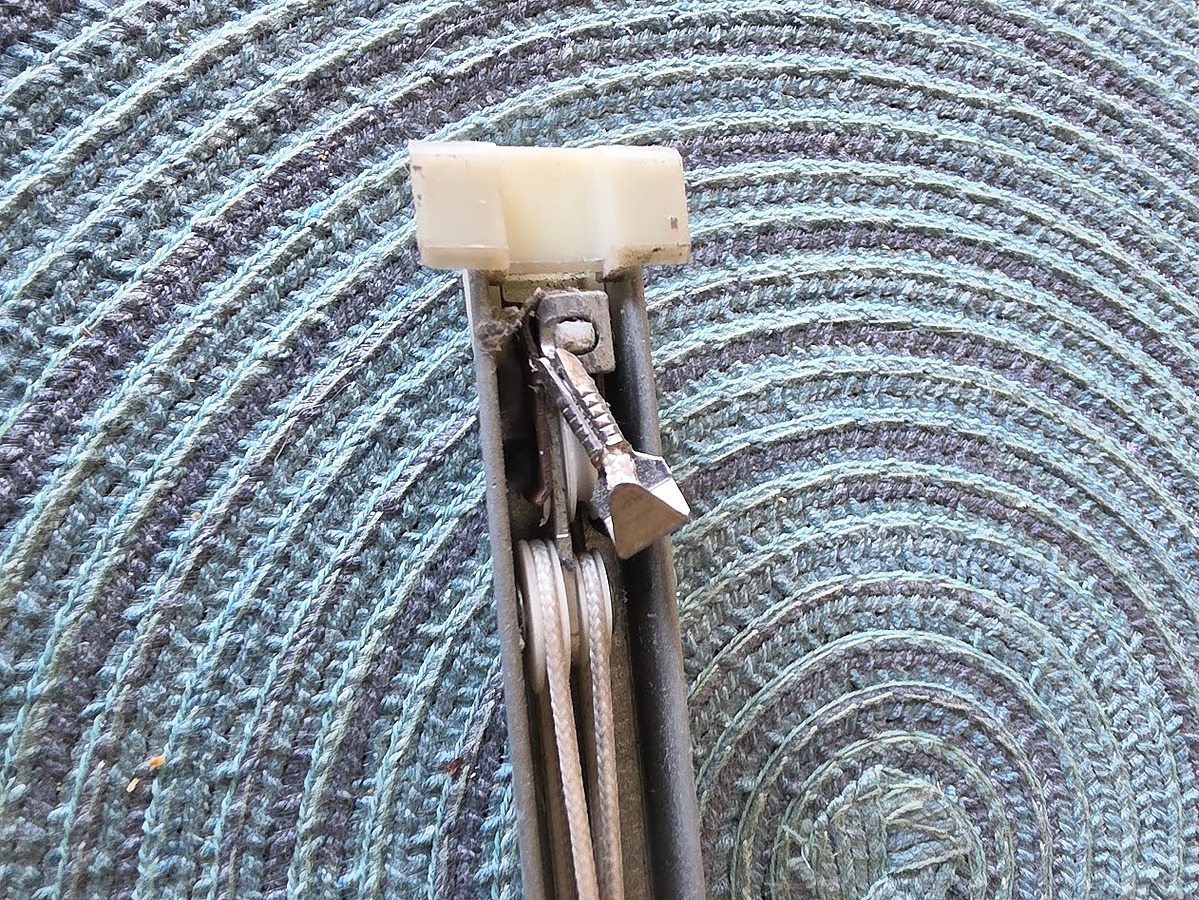

19-005 top shoe attachment.

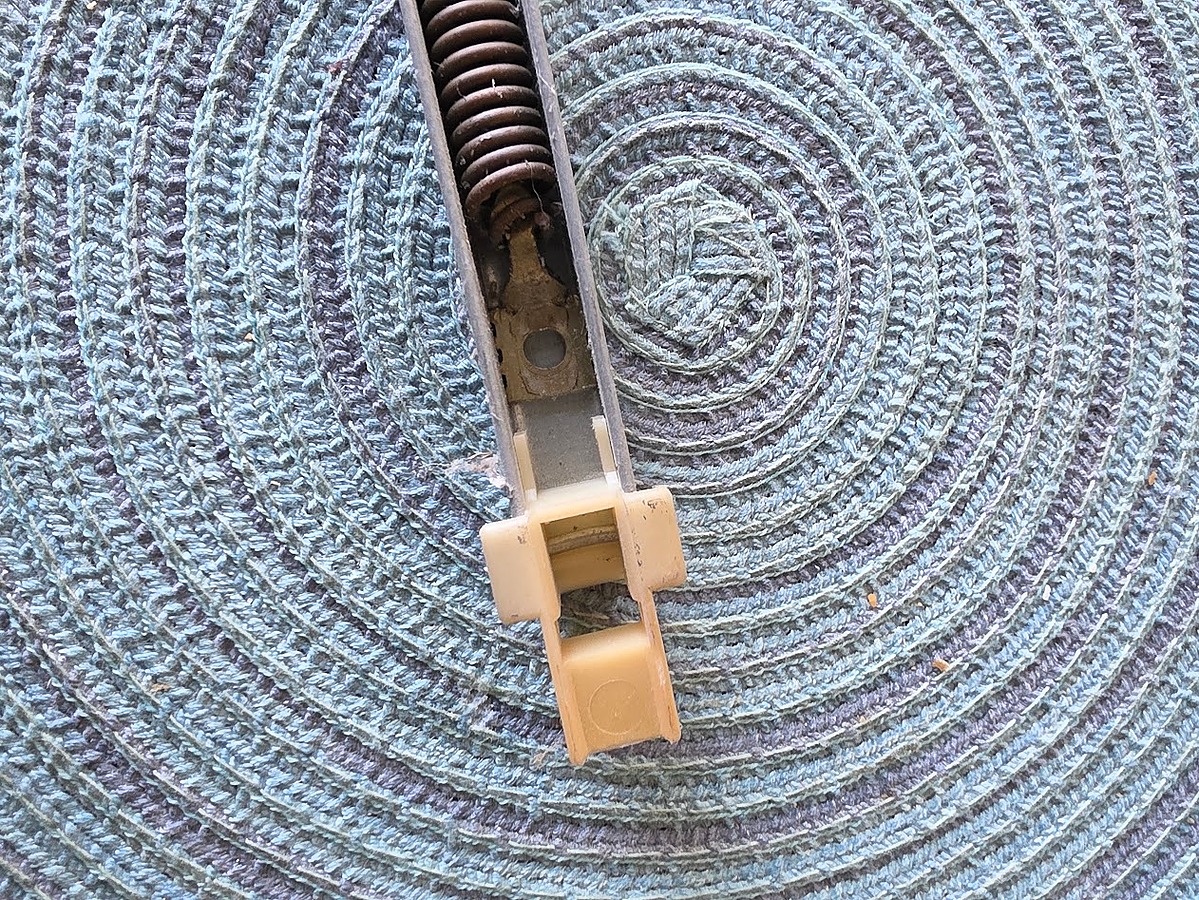

15-005 bottom shoe attachment.
How to Identify Replacement Channel Balances
How to Replace a Non-Tilt Channel Balance
How to Repair a Jammed Window
$8.61/each
Quantity Price
1-11 $8.61
12-49 $7.75
50-99 $7.32
100-249 $6.89
250+ $6.46
Please Note: Bulk pricing applies only to purchases of the same option
Option:
1710
1720
1730
1740
1750
add $0.75
Product Description
This is a Series 380 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has an 18" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-005 top and 15-005 (1" deep) bottom fittings and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
Stamp Option Sash Weight Range
1710 5 to 8 lbs
1720 8 to 12 lbs
1730 12 to 14 lbs
1740 14 to 17 lbs
1750 17 to 20 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Guides
Customer Questions & Answers
Discussion # Of Replies Last Post Date

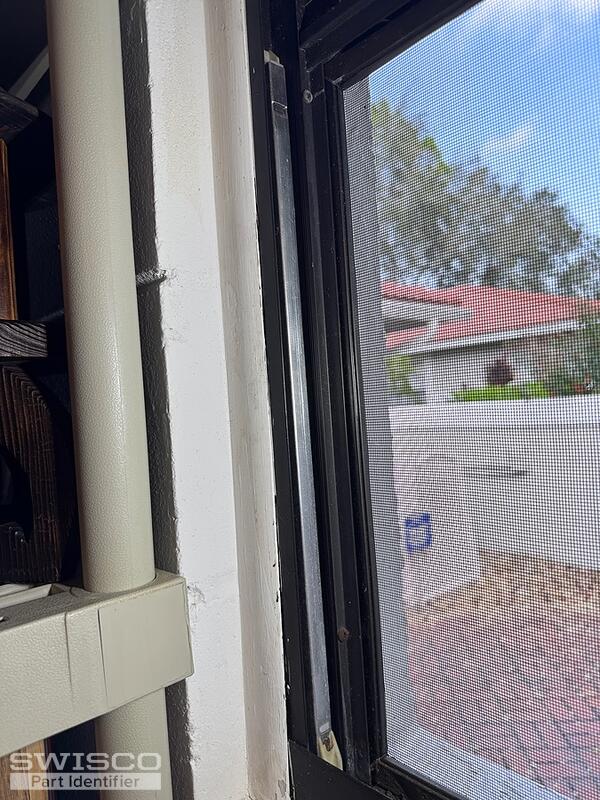

1/2" non-tilt channel balanceThis discussion includes image(s). 2 Oct 9, 2021
Window balance infoThis discussion includes image(s). 4 Sep 17, 2021

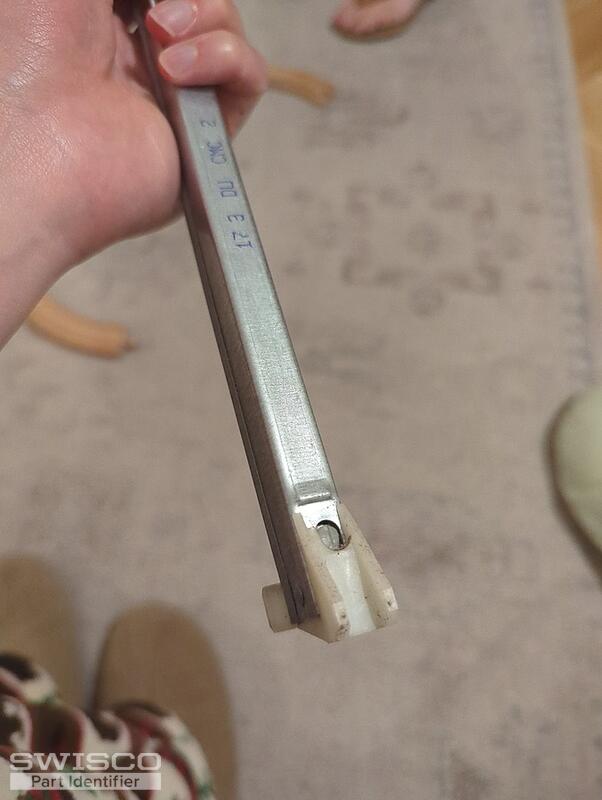

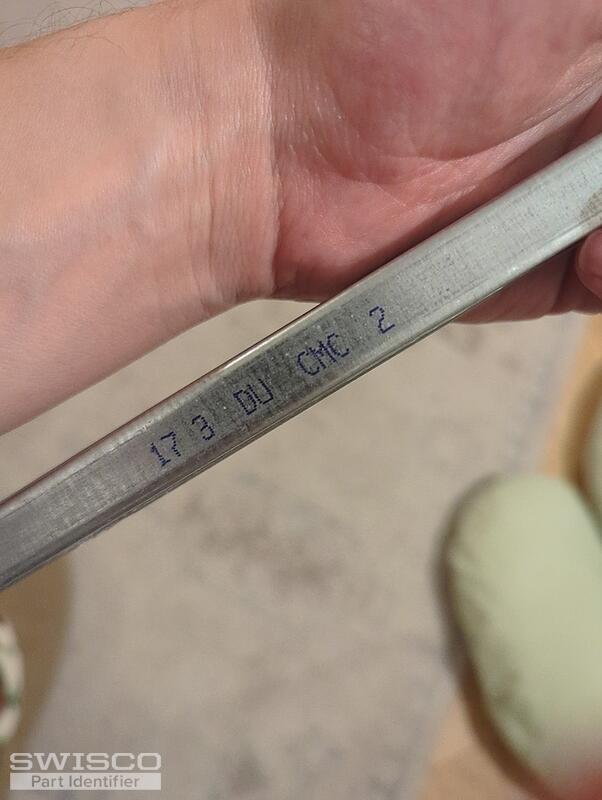

Searching for 17 3 ET CMC 2This discussion includes image(s). 2 Jul 20, 2021
