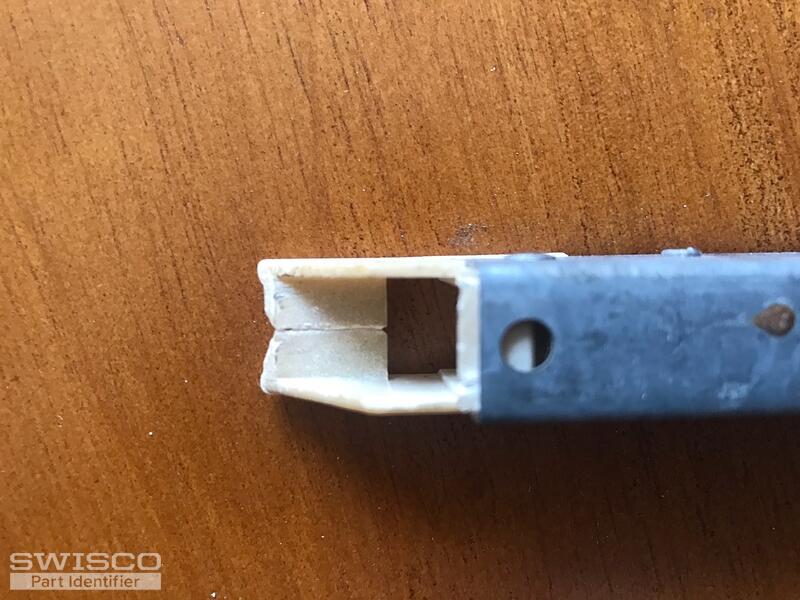

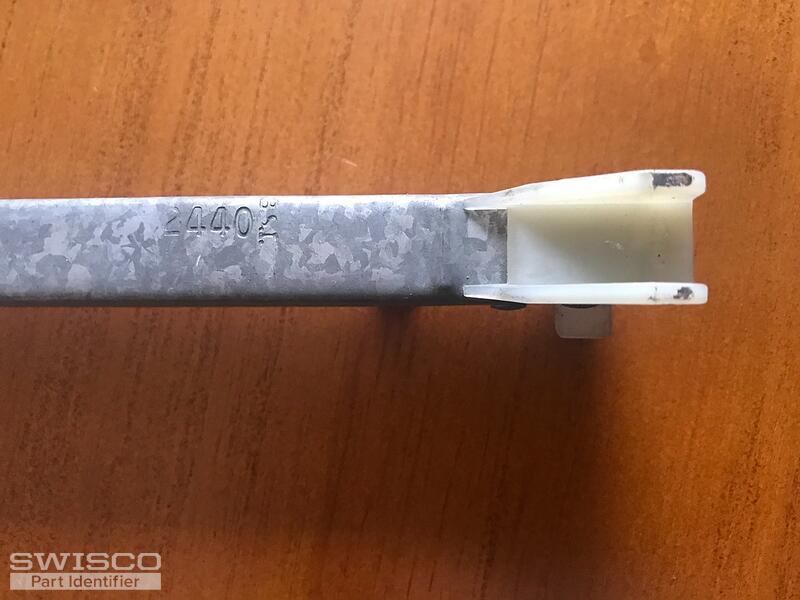

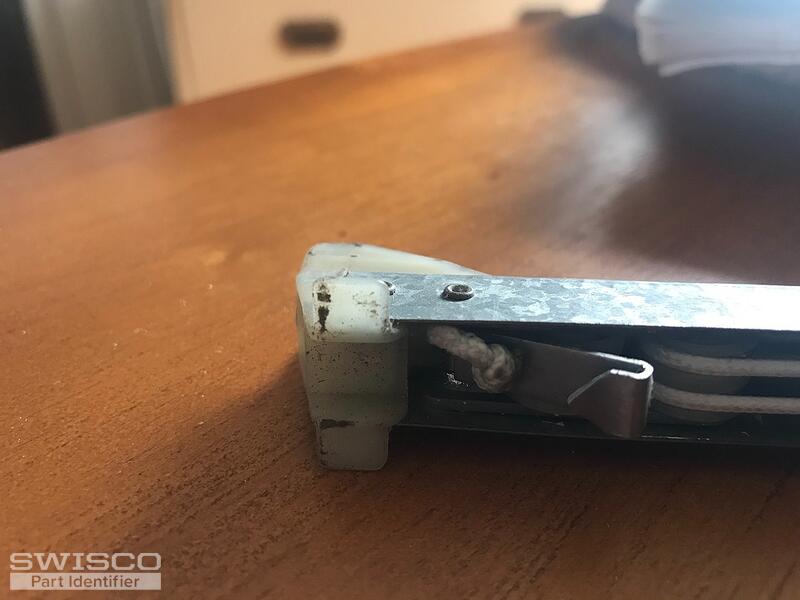

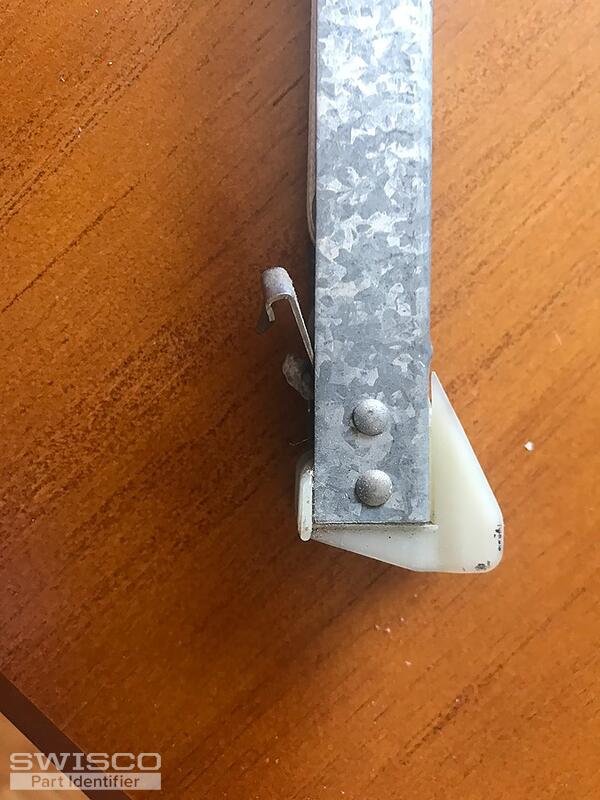

I think I need two (2) channel balances - 1/2 inch, 25 inch length for a non-tilt window. I think it's a series 350

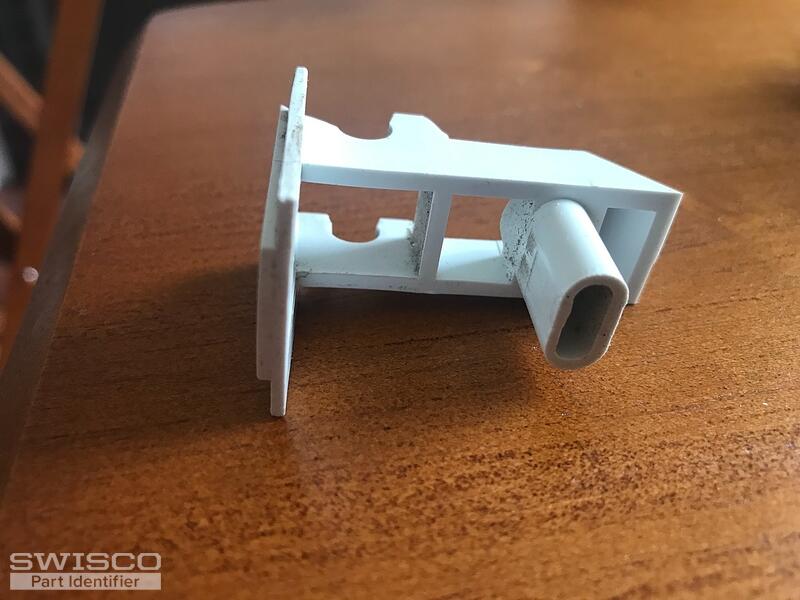

I need four (4) top sash guides 11/16 wide x 1 11/16 height. The top piece of guide is 1 1/16 x 1 1/4. I can't seem to find the piece that matches in your catalog. Please advise which part numbers to order. Thanks!

Bob

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I agree that your balance appears to match the S350-25 with a 2440 strength option.

As for your top sash guide, take a look and compare the dimensions listed on the 18-073 product page to yours. Thanks for posting!
