12 to 15 year old apartment windows. No markings on any windows in any of the apartments
Landlord from Missouri
Oct 1, 2018 4:13 pm

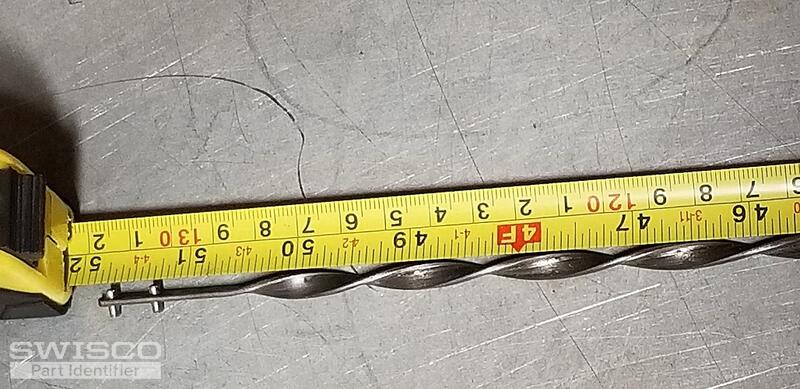

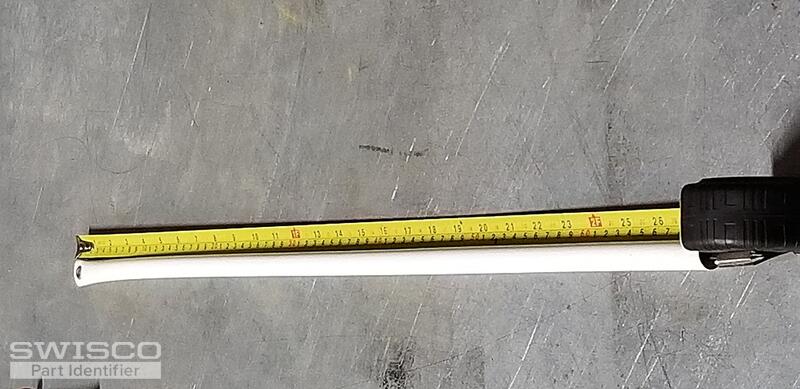

I'm meeting replacement parts on the spiral balance and the pivot lock shoe. I've had no luck locally. And these are tilt windows. I'm needing to get these replaced so the apartments will pass City inspection.
5 user uploaded images
2 Replies
Tom from SWISCO
Oct 9, 2018 12:25 pm
We can definitely replace these parts for you. The reason you're having trouble is probably because these exact styles aren't made anymore, but we have more modern replacement options that will work just the same.
The key measurement for your shoe is the thickness. It looks like yours is just a hair under 1/2", but it's hard to be sure from your photo. Can you confirm? Could it just be 1/2"? If so, then I recommend our 15-046.
As for the spiral balance, it will come down to the diameter of the outer tube. If it's 3/8", then I recommend our Series 900. If it's 5/8", then go with our Series 600 instead.
