1/2 wide, 24" long. Double spring. 2323DSL and RB- BSI stamped on it.

Quick Learner from Ormond Beach Fl.

Nov 30, 2022 6:41 pm

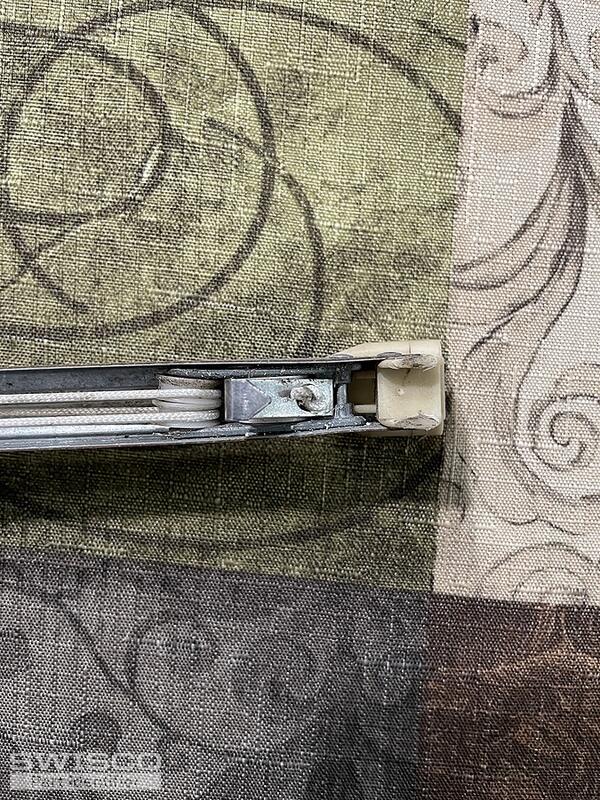

Hi there. I need to identify and order 2 of these balances. I will also need to order 6 of the top plastic pieces, 6 of the bottom pieces and the steel rivets to install them to fix other windows in the house.

4 user uploaded images

4 Replies

Tom from SWISCO

Dec 2, 2022 2:15 pm

Thanks for reaching out to us. Your balance appears to be a match for our Series 395. However, I'm not familiar with that stamp. Would it be possible to see a photo of it? That will allow me to determine if this is a strength option that we can supply.

Quick Learner from Ormond Beach Fl.

Dec 3, 2022 11:07 am

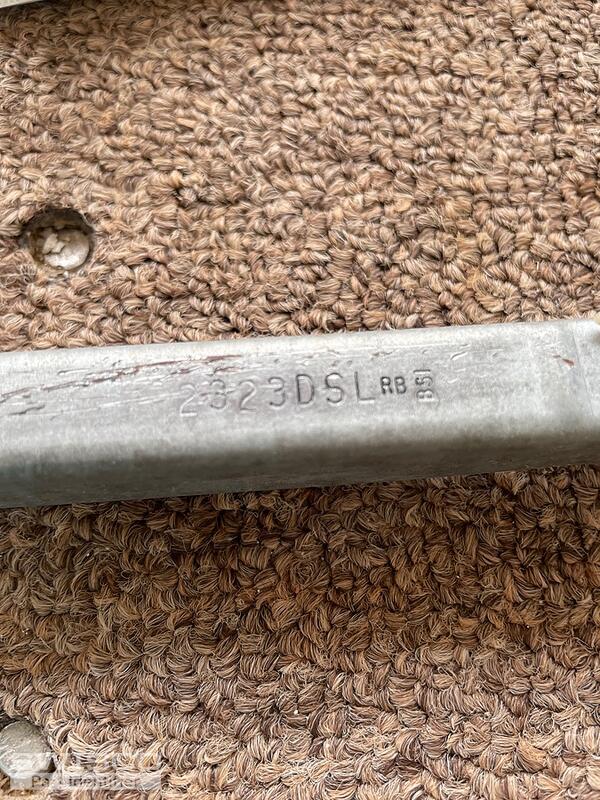

Hello Tom, thanks for the help. I am attaching a photo of the stamp on the balance. You mentioned a strength option, that could very well be it. I neglected some important information in my original post?. These are "Hurricane Rated" 4 layer windows and are heavy, even with balances installed. I removed the pane that needs new balances and it weighs 36lbs.

1 user uploaded image

Tom from SWISCO

Dec 5, 2022 2:35 pm

Perfect, thanks! We can supply these balances, but they will have to be a custom order due to that stamp. It indicates a heavy duty spring designed specifically for lower sashes.

I'll email you a purchase link and price quote now that will let you add 2 of these to your cart. You may then checkout as normal.

As for the nylon fittings, those would be our 19-005 top and 15-001 bottom. These are sold separately and may be added to your cart at any time before you checkout.
