1.227 wide .841 thick 2.7 long double hung window short

A home owner from new iberia, la. says:
January 22, 2021
I would like to buy one coil balance spring ass.
Thumbnail of the uploaded file named 63303418324__6BDE1455-337F-423F-A251-12995A30B254.
Thumbnail of the uploaded file named 63303420601__9979FABE-9D20-4213-8198-6478E21A899B.
Thumbnail of the uploaded file named 63303422789__48BE78CF-3CB5-4B14-9BF4-0A0941D84AB2.

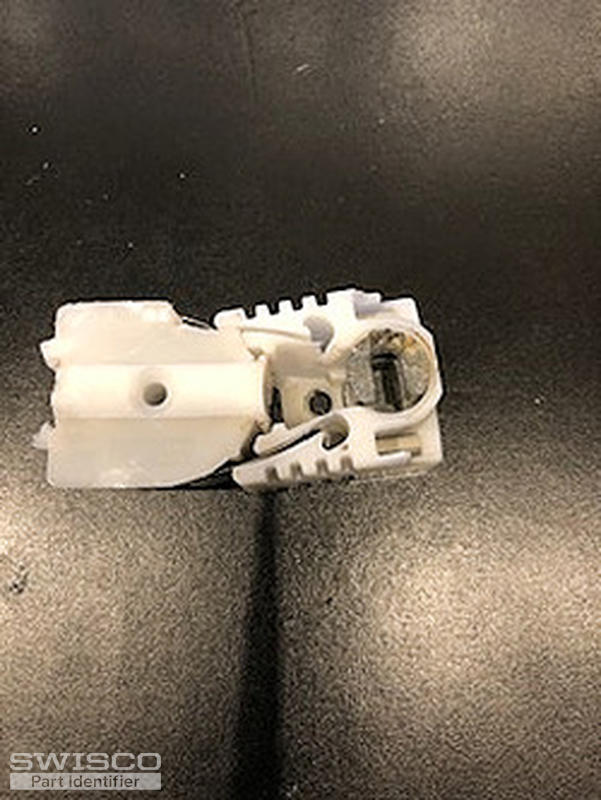

Thumbnail of the uploaded file named 63303425749__727DC686-04B2-4775-A7F3-DBCA6BD265D0.

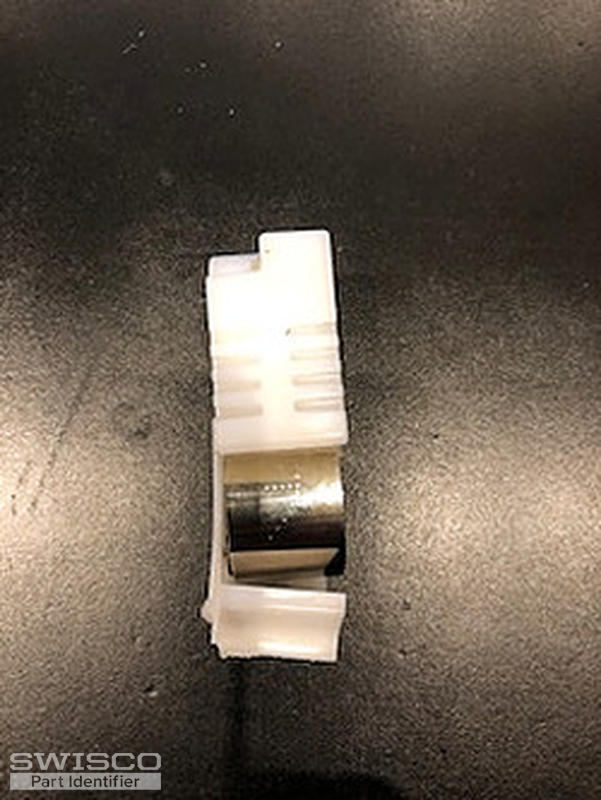

Thumbnail of the uploaded file named IMG_8177.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 25, 2021

Hello,

This looks like our S140 coil assembly. You'll need to weigh your window sash to choose the correct strength option,. Thank you!
A home owner from new iberia, la. says:
January 25, 2021
The sash weight is 10 lb. on the spring the number 7 is stamped
Profile picture of Casey
Casey from SWISCO responded:
January 26, 2021

Based on the weight of your window sash, I would recommend using our S140-5 on the left and right sides of the window, which will support a sash between 9-10.99 lbs. Thank you!
