!1/4" T-Lock Balance shoe

Question

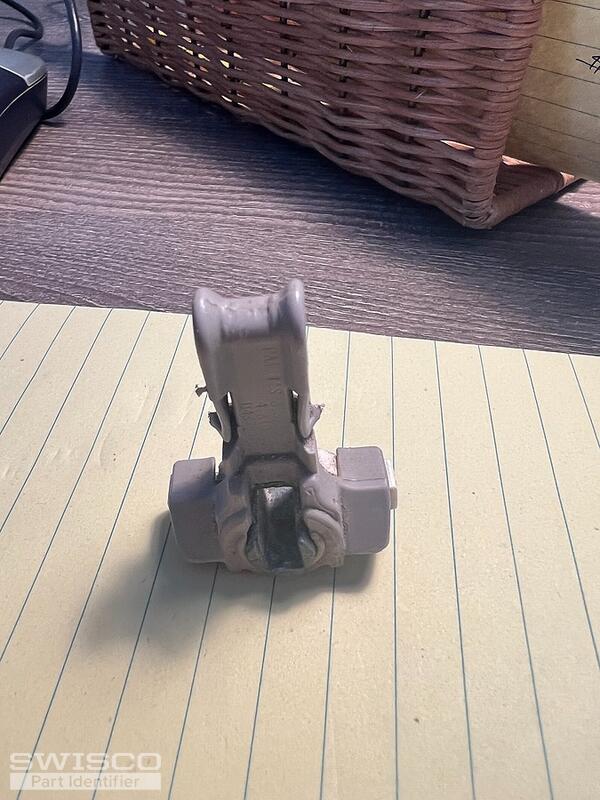

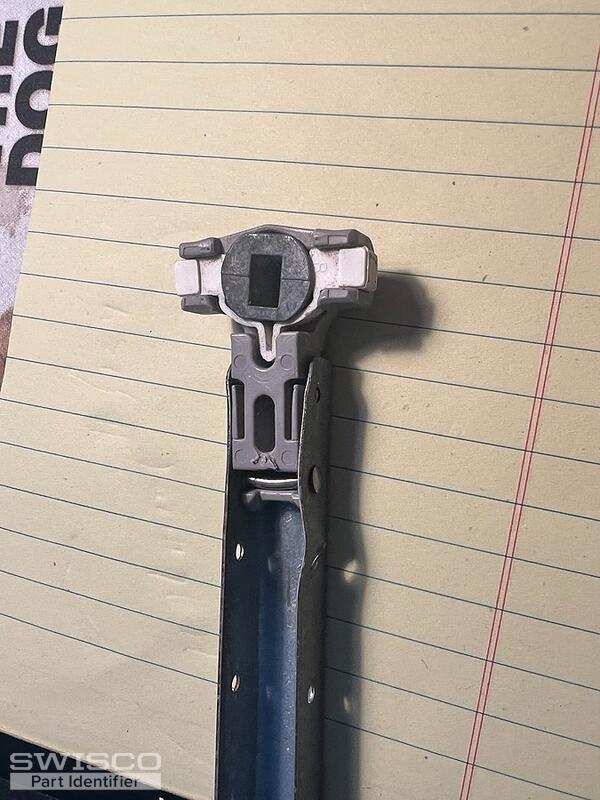

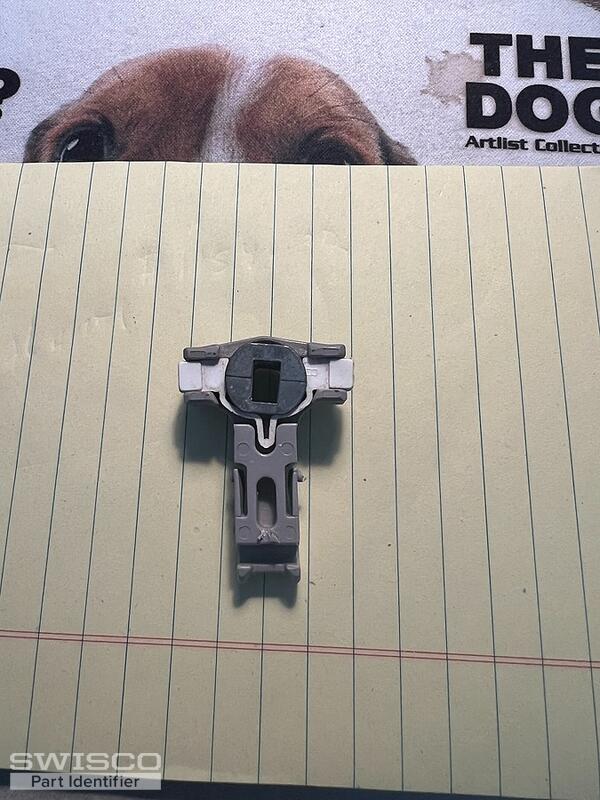

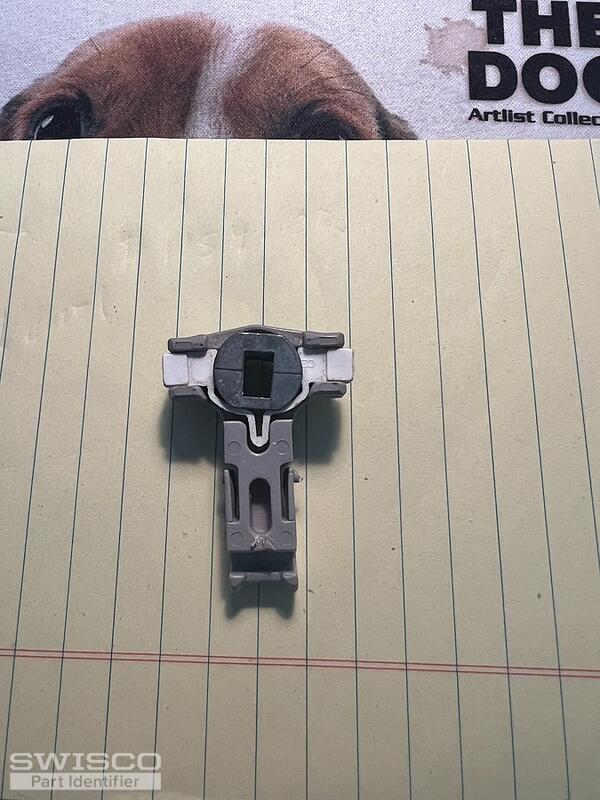

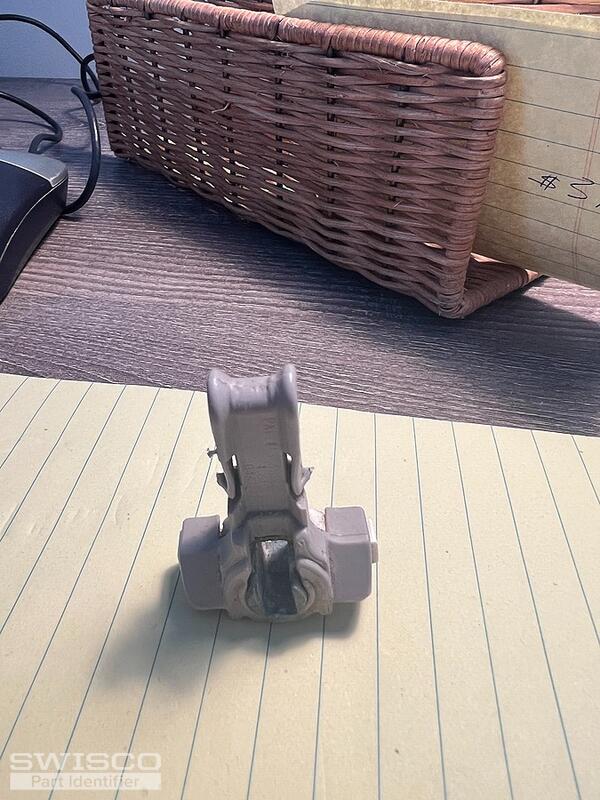

I believe that your 1 1/4" T-Lock Balance Shoe will replace the shoe in the photos. The measurements are the same to those on your website. I'm not sure if these were originals meaning I don't know if open or closed cams make any difference. These will be for single hung windows. Also will need some block and tackle which are marked 32D

Casey · Accepted Answer

Hello,

The t-lock shoe shown in your photos would be the 15-195B with an open cam. This shoe is used with the S795-32 (32D) channel balance. Our stock balances come with the 15-195 but they can be replaced with the 15-195B by following the video below. Keep in mind that the S795 balances come with a screw tab at the end of the pulley clip, which you'll need to confirm matches your original assembly. Thank you!

How to measure the length of the Series 795 channel balance.

Dimensions for 15-195B

Alternate view of 15-195B
