18" Channel Balance

A home owner from Ocala, FL says:
October 28, 2022

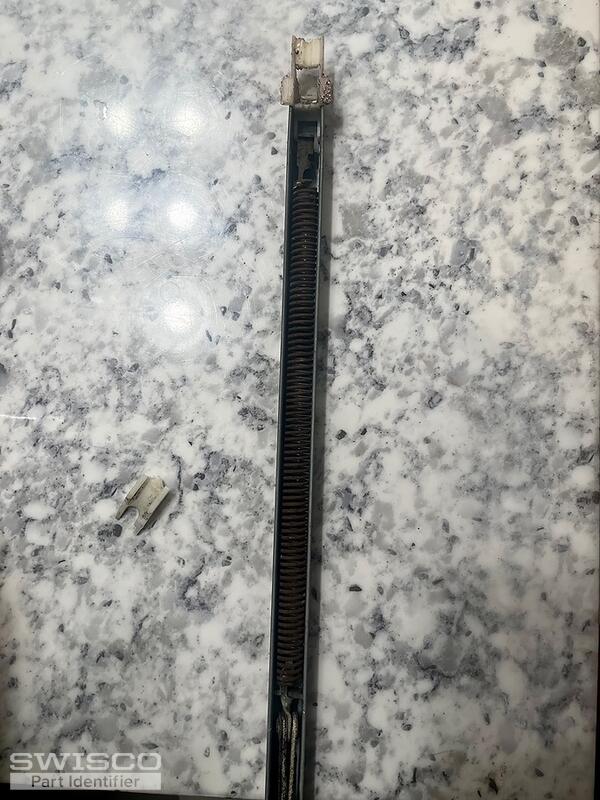

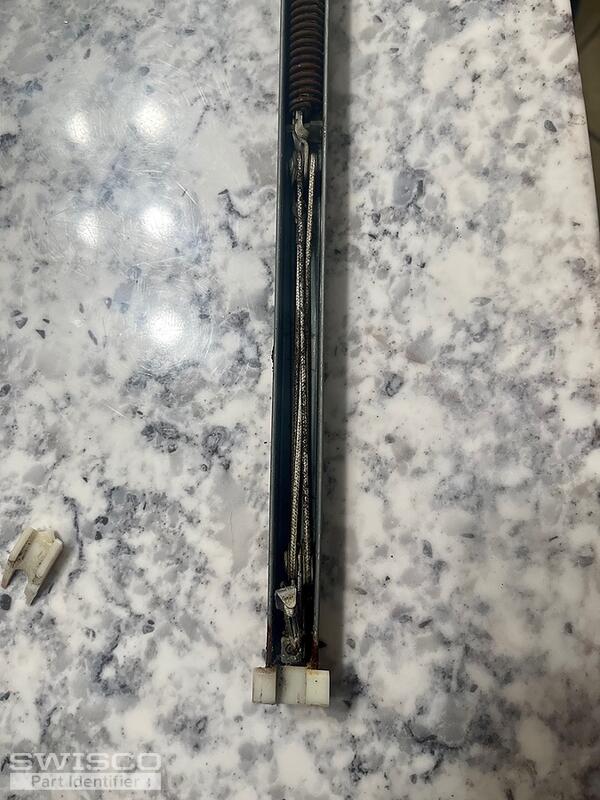

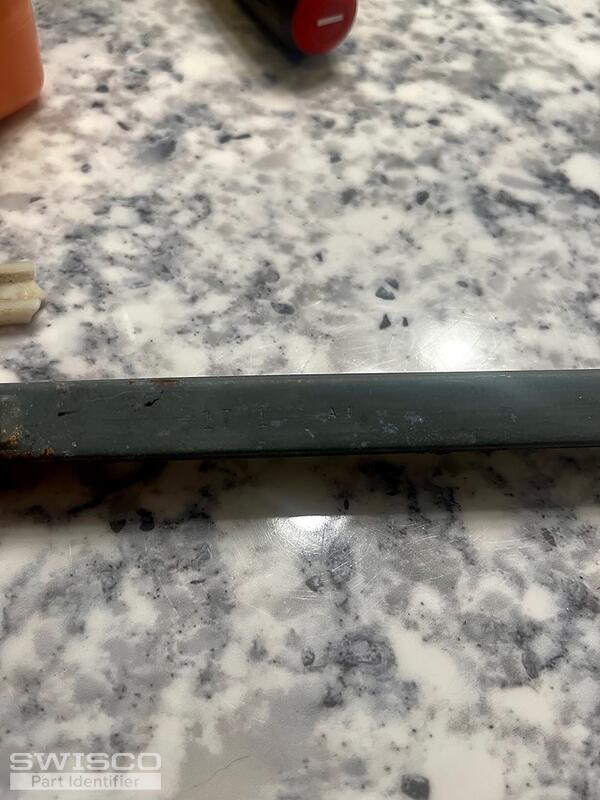

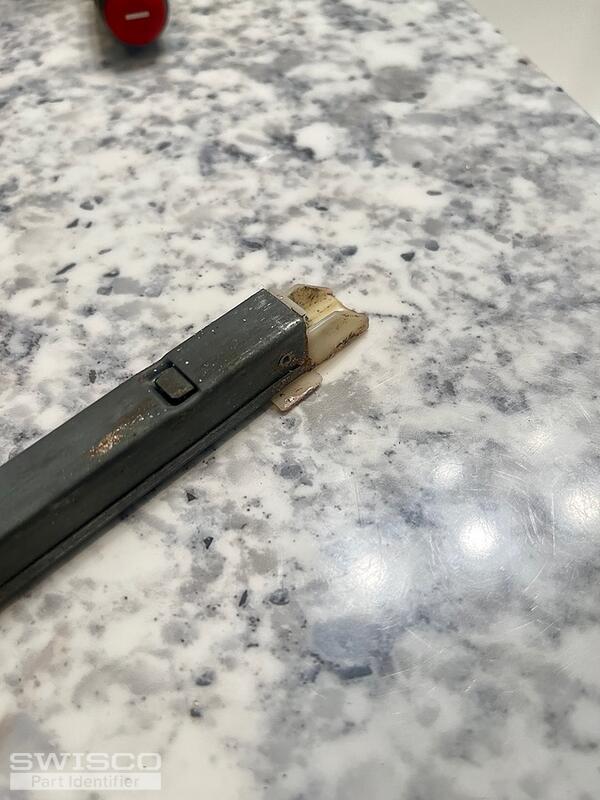

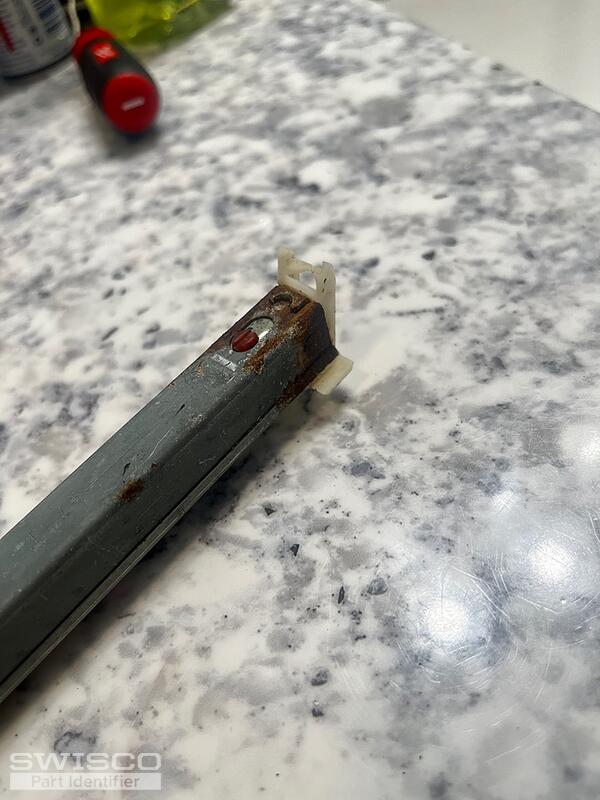

Hi! Just wanted to make sure I get the correct product before buying these for the whole house. "17 1" and "A 1" engraved on side. Unsure of weight rating. I was overly enthusiastic when removing the window and a plastic piece broke off but not sure if from this channel balance or the other one but you can see it in 2 of the photos off to the side.
Thumbnail of the uploaded file named A63C9A20-3412-48CB-8EDE-269958540EF9.jpeg
Thumbnail of the uploaded file named 24C52C1E-D8B6-418C-A162-1FD1009CED9D.jpeg
Thumbnail of the uploaded file named C3DF27ED-3EDE-4FC5-ABA7-571D0D983AA7.jpeg
Thumbnail of the uploaded file named E01B84A7-2E00-44EF-B987-AE5EFA628F59.jpeg
Thumbnail of the uploaded file named 2F31C764-5B08-4F01-9253-12D731EEB2FF.jpeg
Profile picture of Emily
Emily from SWISCO responded:
November 2, 2022

Hello there!

It appears you have our S380-18 or S385-18 channel balance. The important difference between these parts is the bottom shoe depth so you'll need to measure as shown below to determine the best match. You will also need to select the 1710 spring strength option based on your 17 1 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
18" Series 380 Channel Balance
18" Series 380 Channel Balance
S380-18
$9.34
18" Series 385 Channel Balance
18" Series 385 Channel Balance
S385-18
$9.34
