18 in Channel Balancer

A quick learner from Modesto, CA says:

Need to order 2 channel balancers for one window the markings on them (17 4 DS CALDWELL) attached are 10 pictures measuring 18in each. Please let me know which ones I need to order. Thanks James

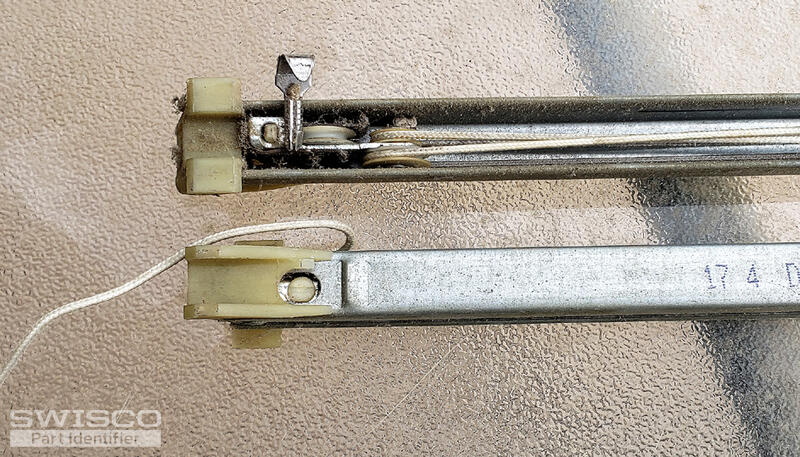

Thumbnail of the uploaded file named 8LeftSide08.jpg

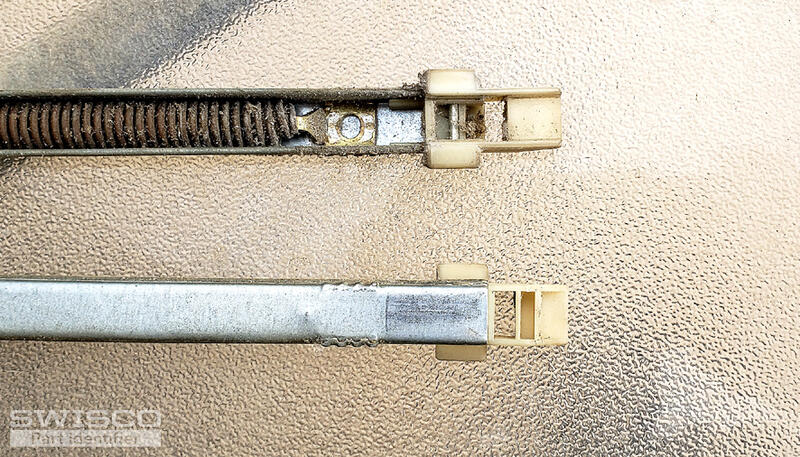

Thumbnail of the uploaded file named 9RightSide09.jpg

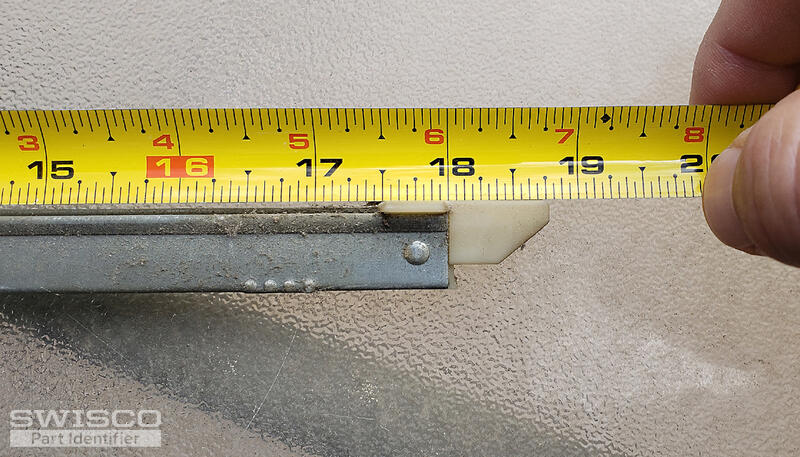

Thumbnail of the uploaded file named 6RightMeasurement06.jpg

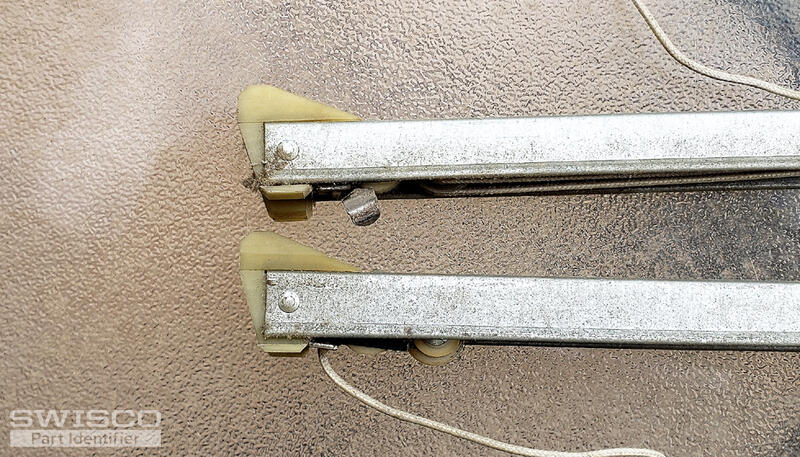

Thumbnail of the uploaded file named 3LeftSide03.jpg

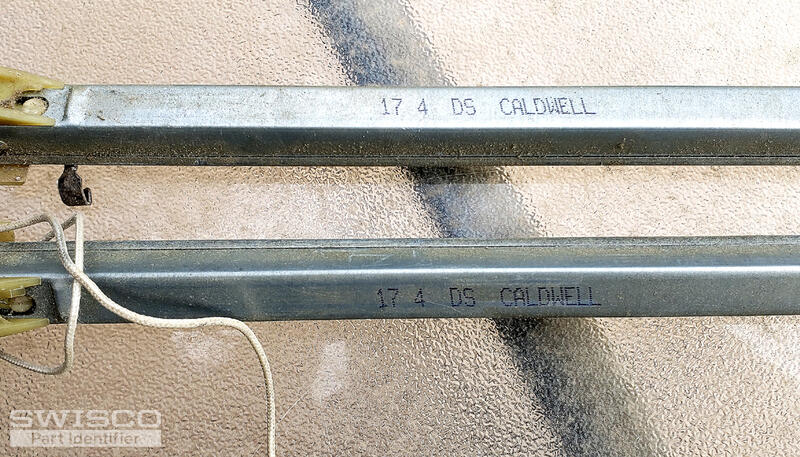

Thumbnail of the uploaded file named 2Markings02.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-18 or S385-18 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1740 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Modesto, CA says:
Hi Casey,
Thanks for getting back to me so quickly. I'm trying to measure the correct way on the bottom attachment but keep coming up with 1" 3/16. Am I supposed to measure from the concave area to the end or from the furthest points on the attachment (where the wings stick out)? I've attached 2 pictures and hopefully they help. Any assistance will be greatly appreciated. Thanks,
Best Regards,
James

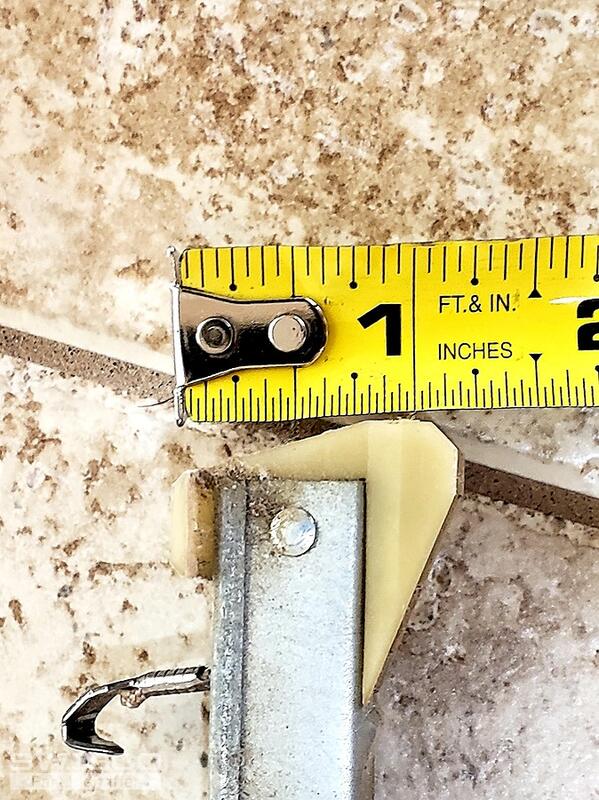

Thumbnail of the uploaded file named 20220923_145028.jpg

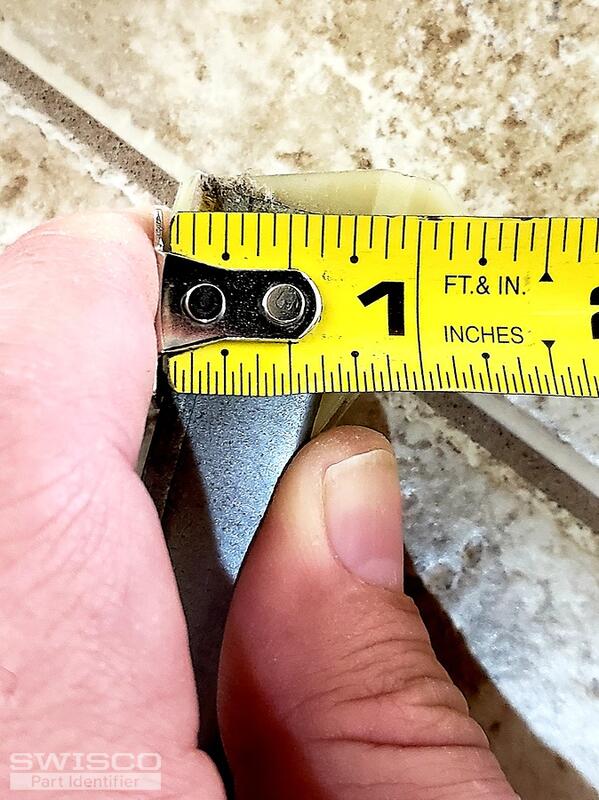

Thumbnail of the uploaded file named 20220923_144948.jpg
Profile picture of Casey
Casey from SWISCO responded:

As long as the depth is over 1", which appears to be the case based on your photos, then you would need the S385-18 channel balance. Thank you!

A quick learner from Modesto, CA says:
Hi Casey, thank you for your expertise I just ordered 2 S385-18 1720. Sincerely, James :)
Profile picture of Casey
Casey from SWISCO responded:

We're happy to help but your original balances were stamped with 17 4, which is why we recommended a 1740 strength option to support a sash between 14 and 17 lbs. The 1720 option that you chose will only support between 8 and 12 lbs, which would not work for your window based on your original balance stamp.
