193 FS CALDWELL : SWISCO.com

Quick Learner from Richmond BC

Aug 14, 2026 3:28 am

hello,

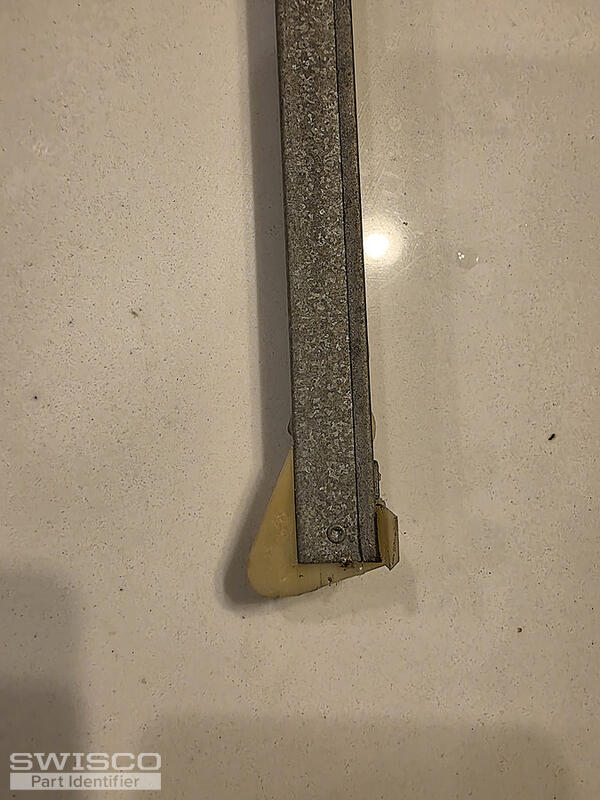

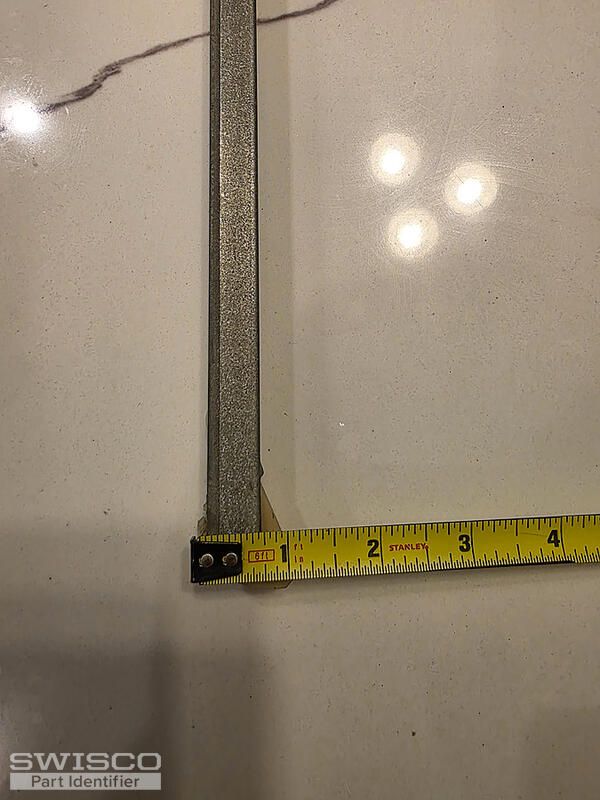

I'm trying to replace these broken window sash. These have 193 FS CALDWELL and seems to measure about 20 inches long. I also need matching top guide to go with these as the current ones got brittle and snapped.

5 user uploaded images

6 Replies

Bob from SWISCO

Aug 14, 2026 10:12 pm

Hey there. Start by comparing your channel balance to the S380-20 or S385-20. The only difference between these two balances is the shoe depth. See below. For a stamp option choose 1930.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Richmond BC

Aug 15, 2026 2:44 am

Thanks for the reply. Mine measures closer to 1inch so i'll go with the S380-20. Which top guide will fit these ?

Bob from SWISCO

Aug 15, 2026 12:32 pm

These can work with a number of different Top Sash Guides. If you're unsure what you need, send us photos of your old one, removed from the sash and from a front and side angle, and we should be able to narrow it down.

Quick Learner from Richmond BC

Aug 16, 2026 1:57 am

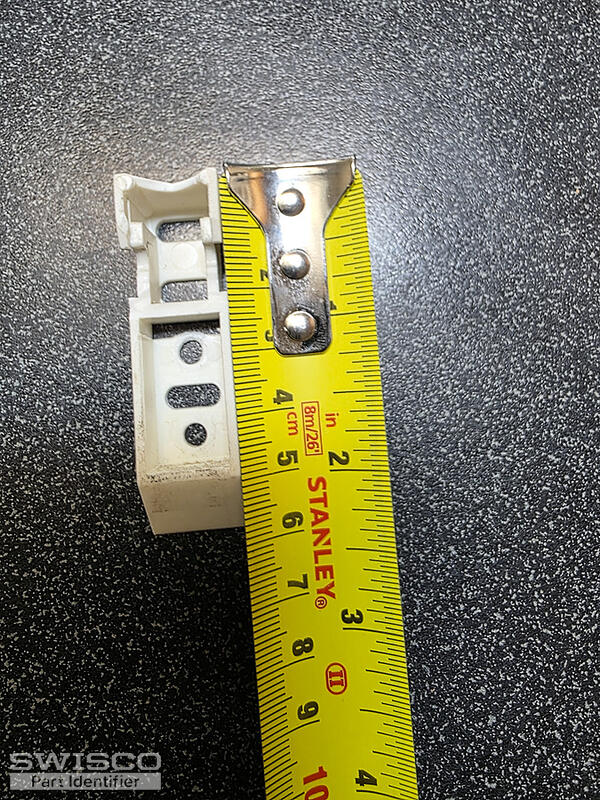

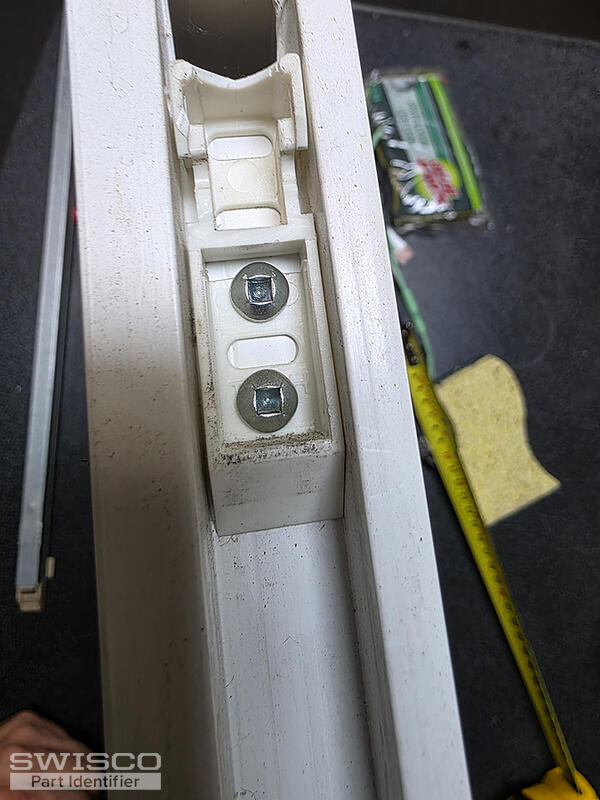

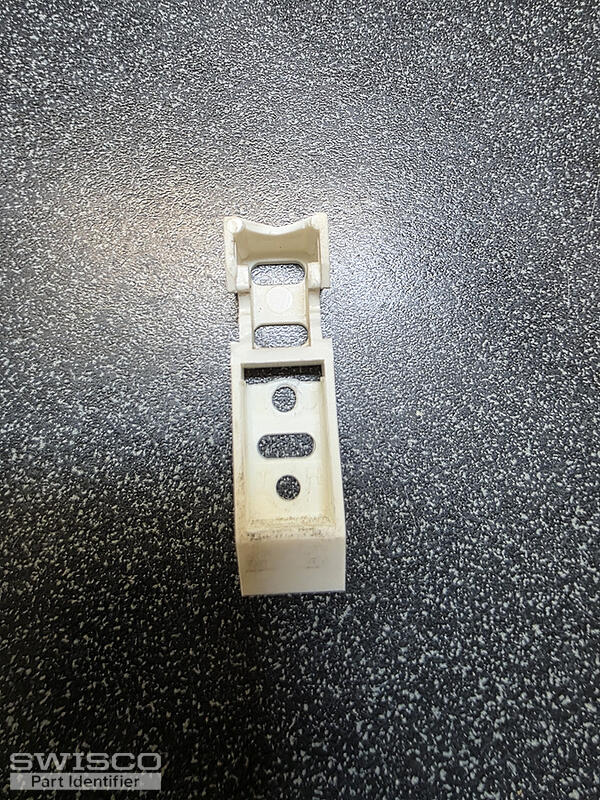

Hello, thanks for your help! I took some photos of the current top sash guide. Could you give me some recommandations?

3 user uploaded images

Bob from SWISCO

Aug 16, 2026 3:12 pm

Thanks. We don't have an exact match for this Top Sash Guide, but the 18-008H might work as a substitute. Review the dimensions and see if it matches up.

Dimenisons for 18-008H

Alternate view of 18-008H
