20" Series 385 Channel Balance

Product Code: S385-20

20" Series 385 Channel Balance
$9.38/each
Quantity Price
1-11 $9.38
12-49 $8.44
50-99 $7.97
100-249 $7.50
250+ $7.04
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a Series 385 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 20" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.

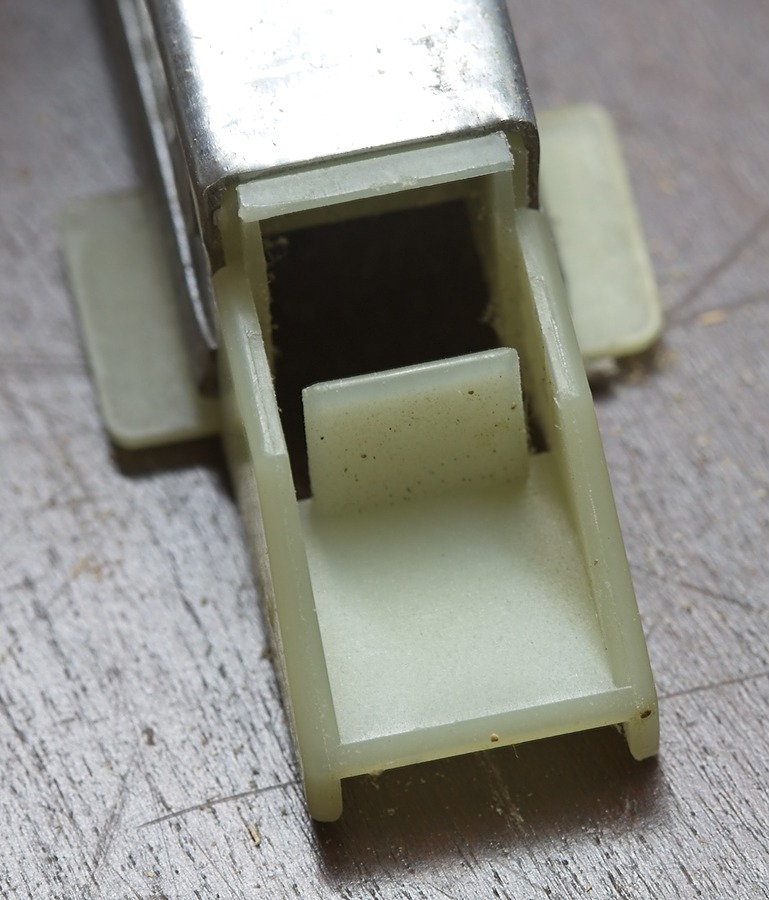

  • Comes fully assembled with the 19-005 top and 15-004 (1-3/32" deep) bottom fittings and will be ready to install out of the box.

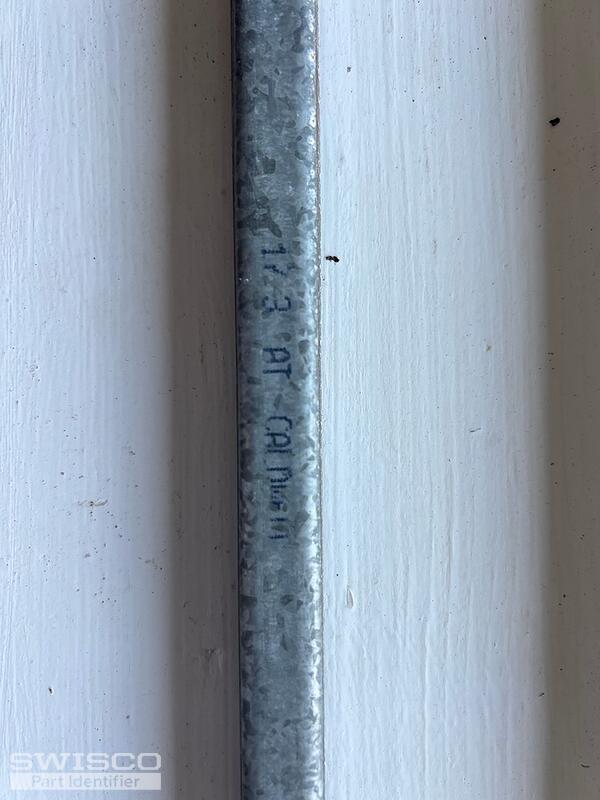

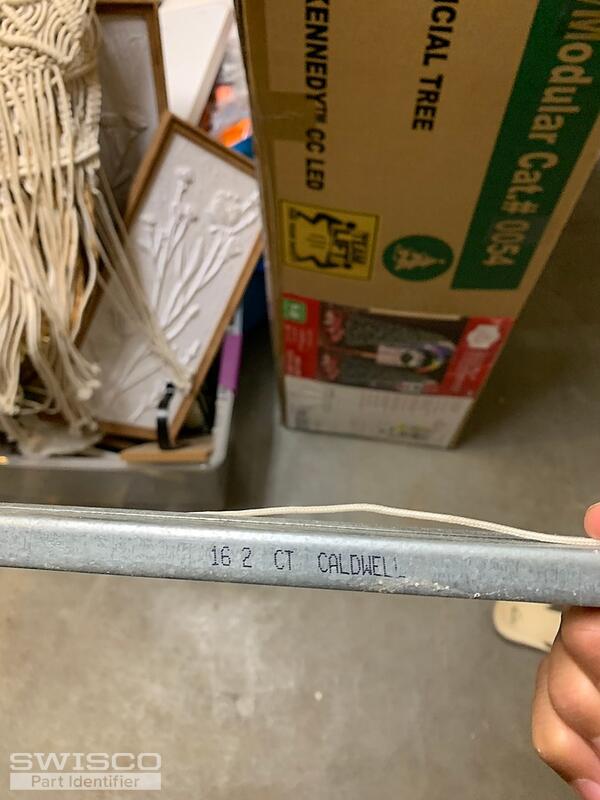

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
Stamp Option Sash Weight Range
1910 5 to 8 lbs
1920 8 to 12 lbs
1930 12 to 14 lbs
1940 14 to 17 lbs
1950 18 to 21 lbs
1960 22 to 26 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash€™s weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
Related Videos
Related Item(s)
Customer Questions & Answers
Discussion # Of Replies Last Post Date

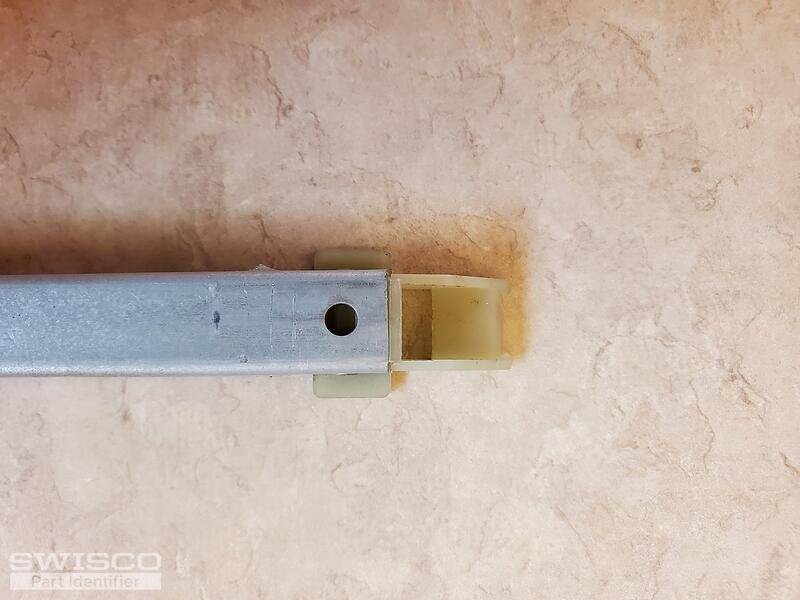

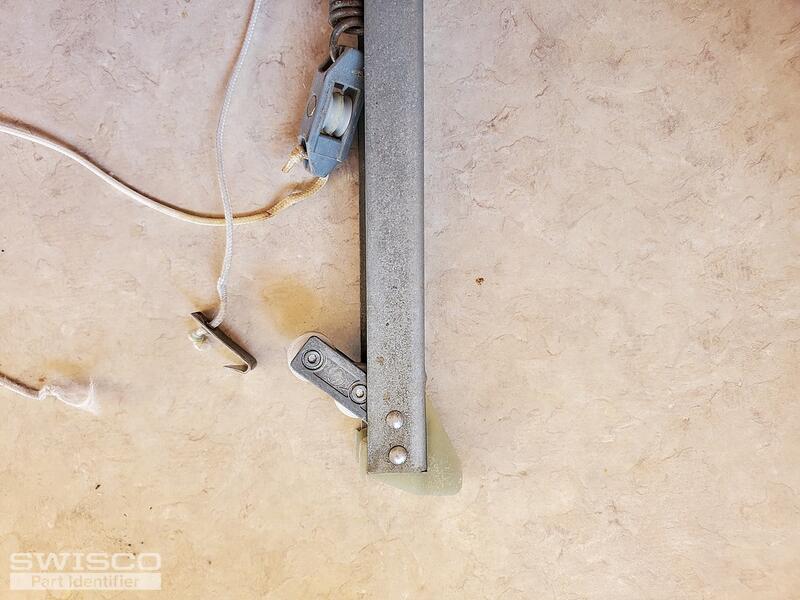

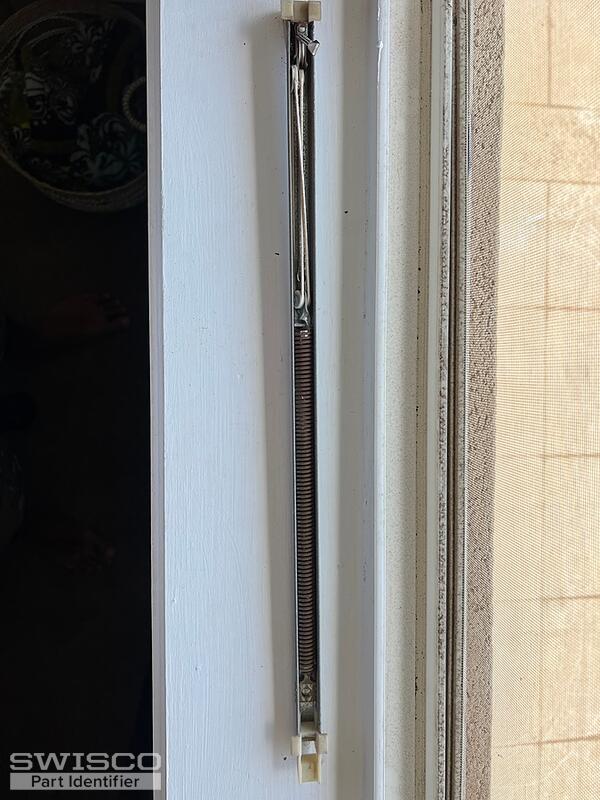

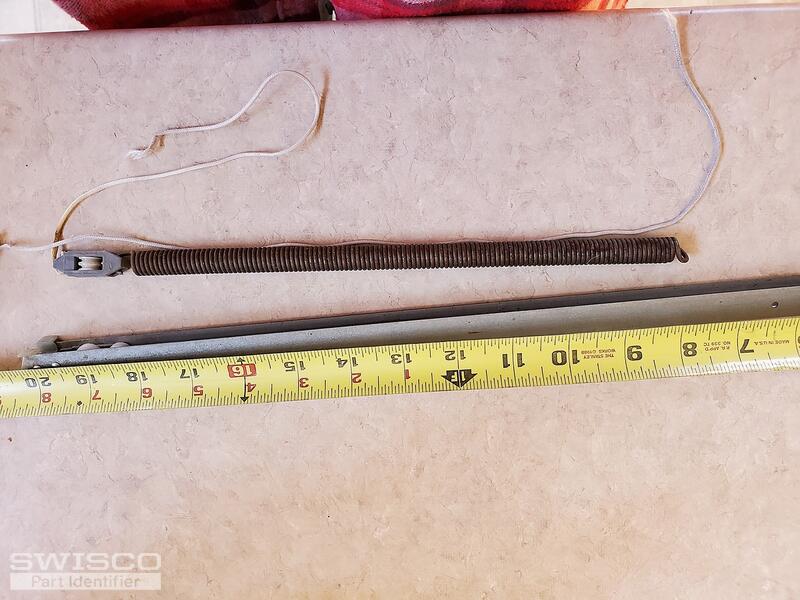

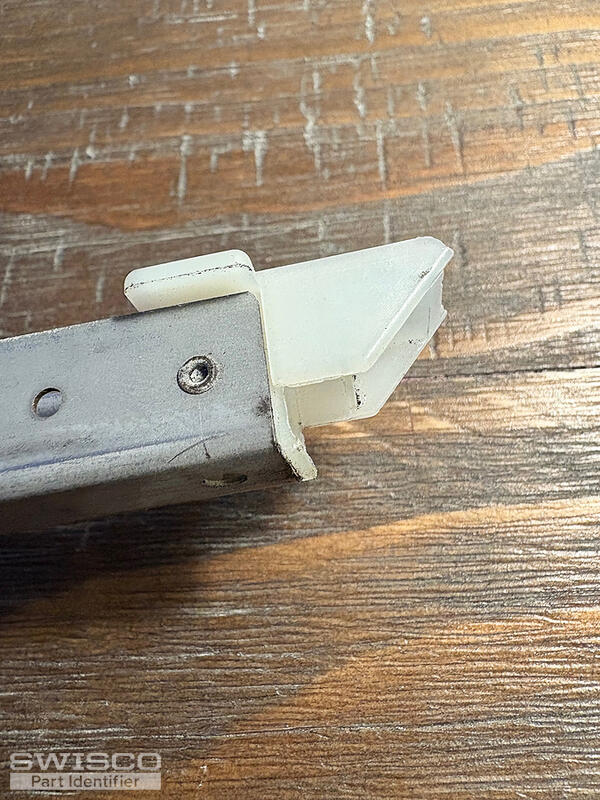

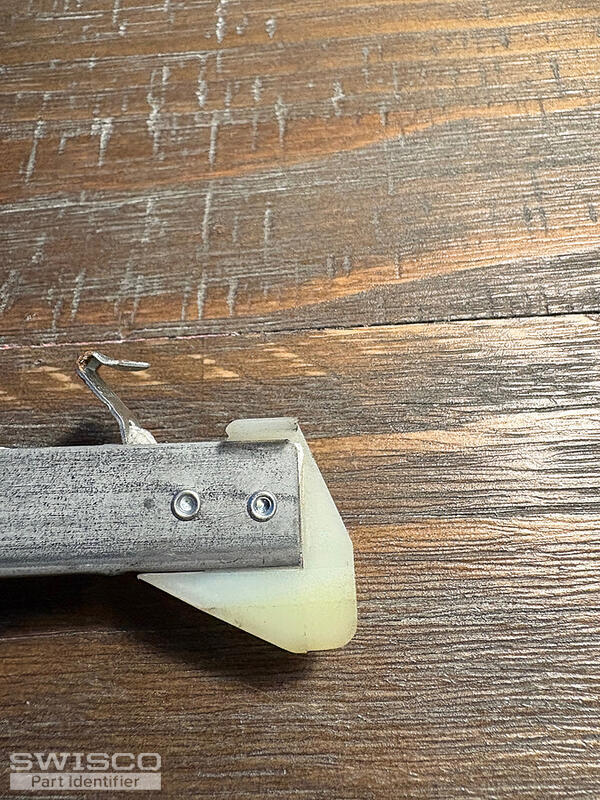

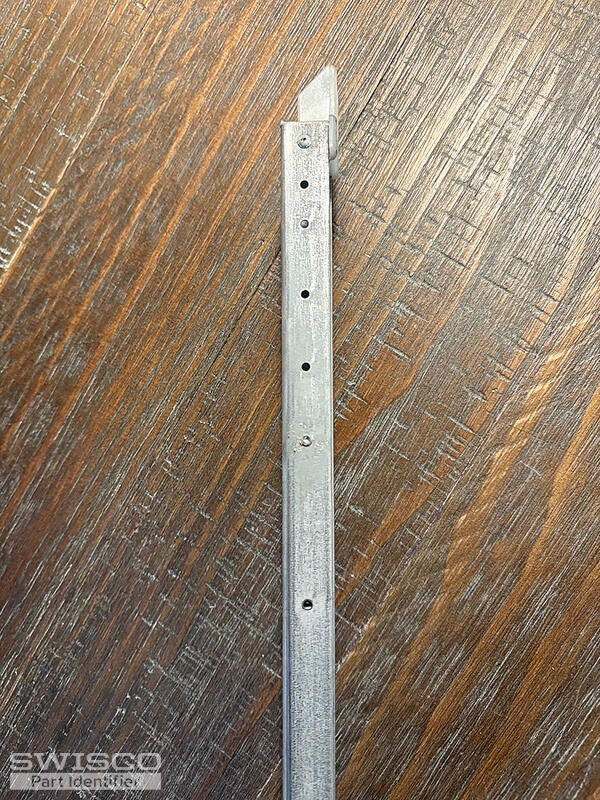

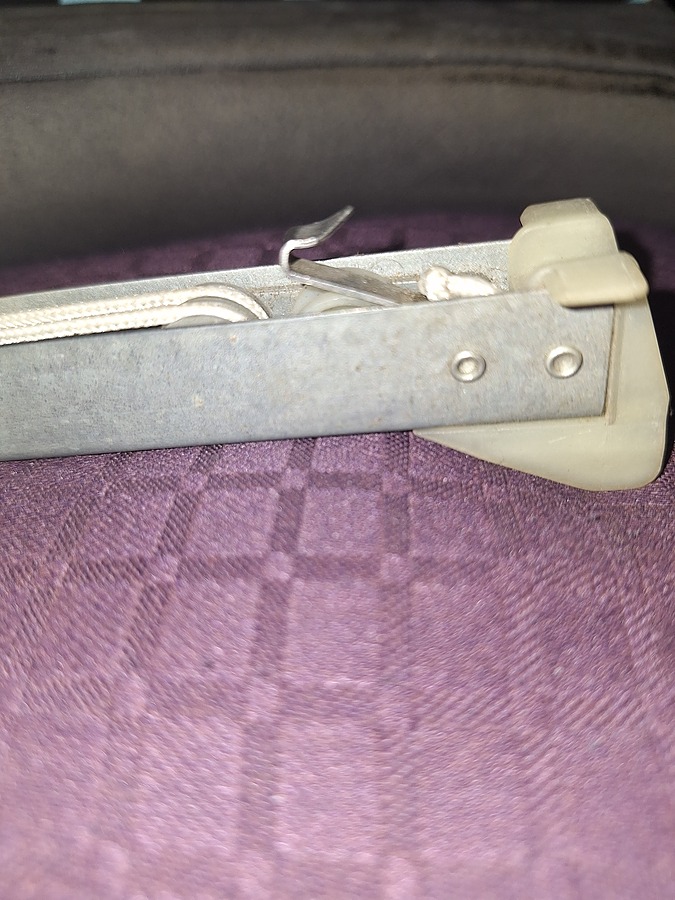

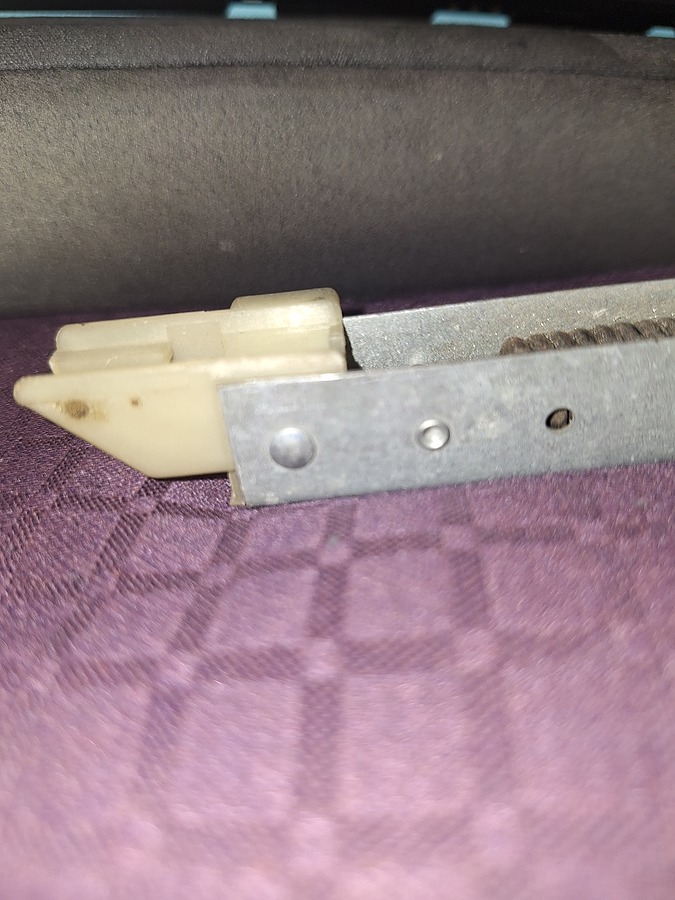

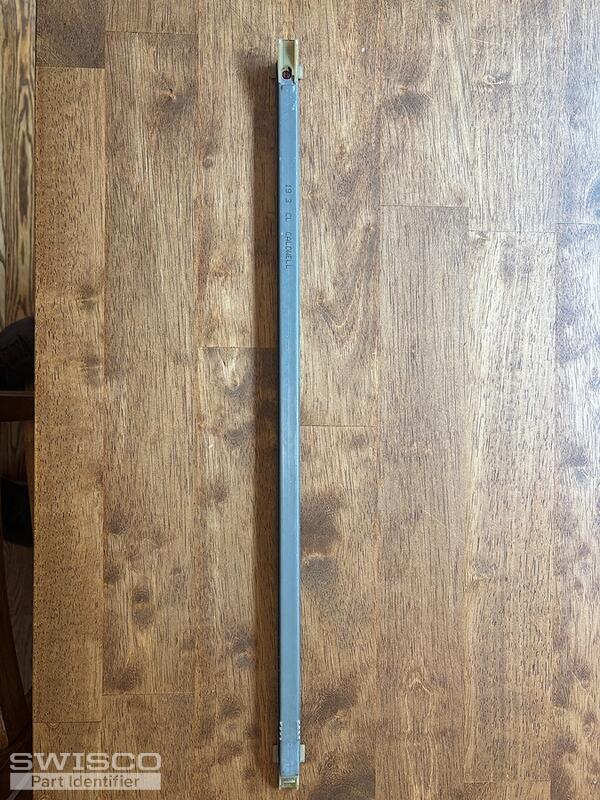

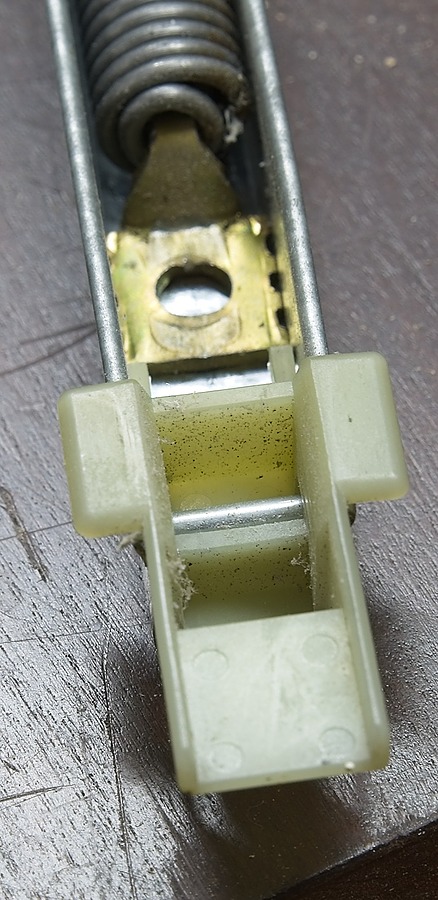

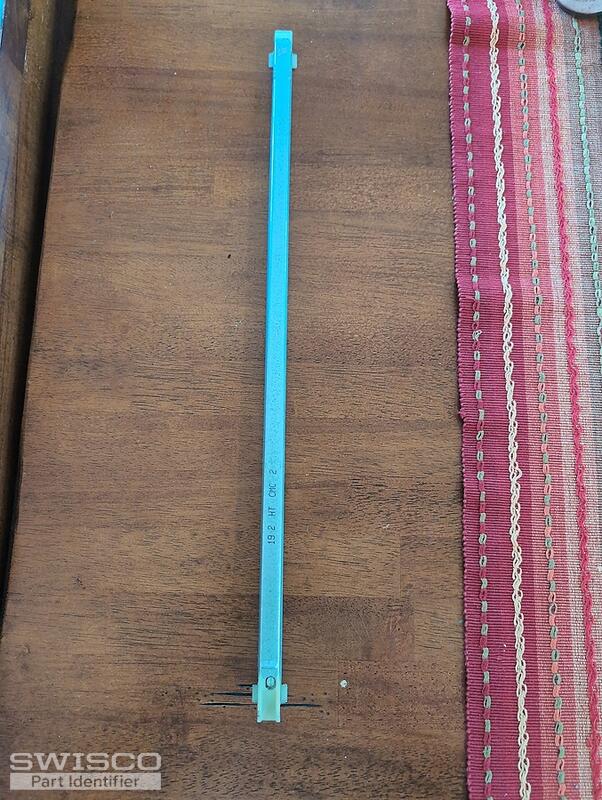

Please identify the Channel Balance I need to buy two ofThis discussion includes image(s). 2 Sep 25, 2023
(2) 19 5 Caldwell GM replacements neededThis discussion includes image(s). 2 Sep 11, 2023

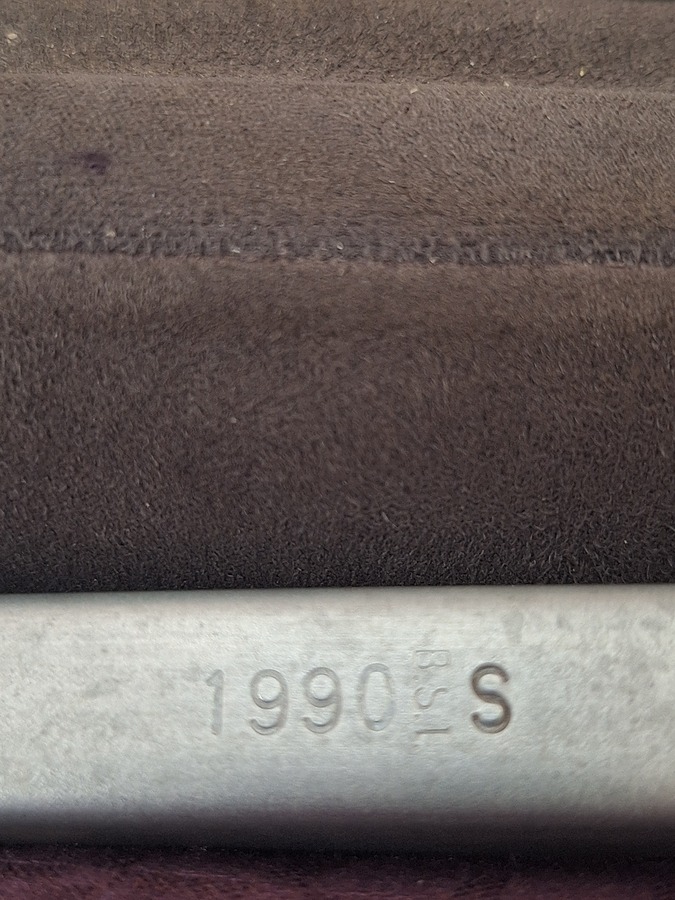

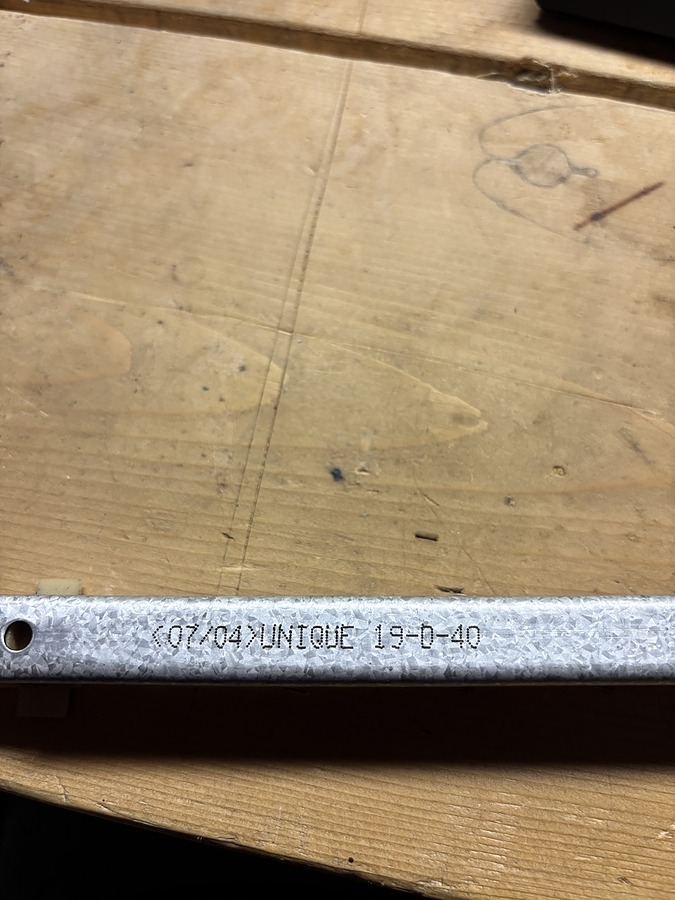

Channel Balance stamp 2 Aug 9, 2023
Channel replacement partThis discussion includes image(s). 2 Aug 4, 2023
window sash channel balanceThis discussion includes image(s). 2 Jul 28, 2023
Help identifying window balance This discussion includes image(s). 2 Jul 25, 2023

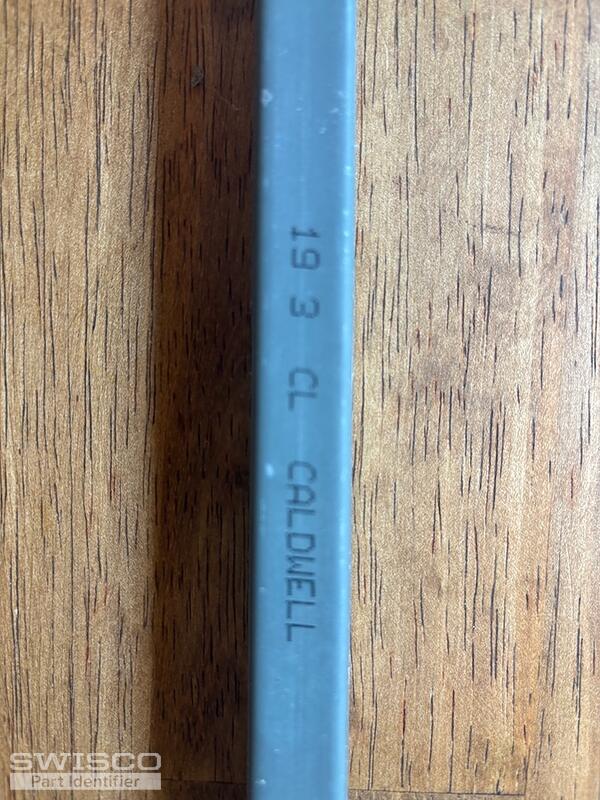

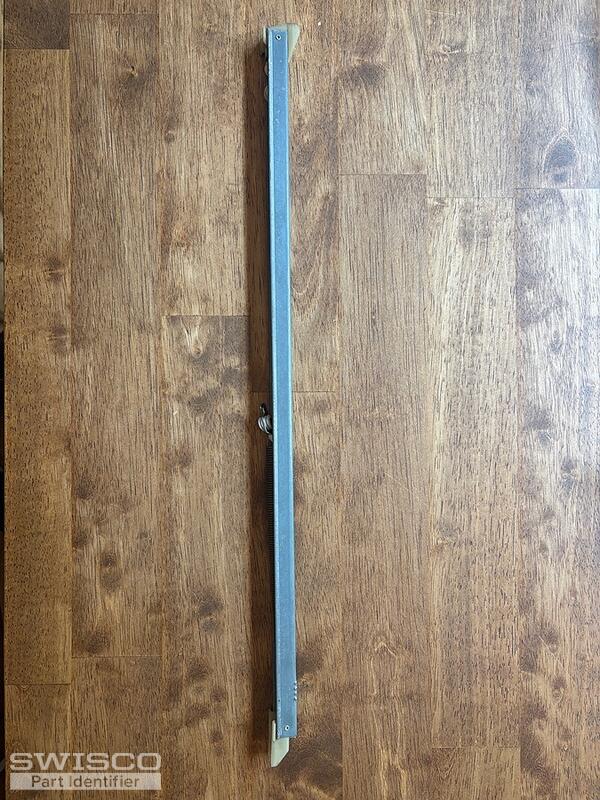

Window channel balance 19 3 AX CMC 7This discussion includes image(s). 2 Jun 22, 2023

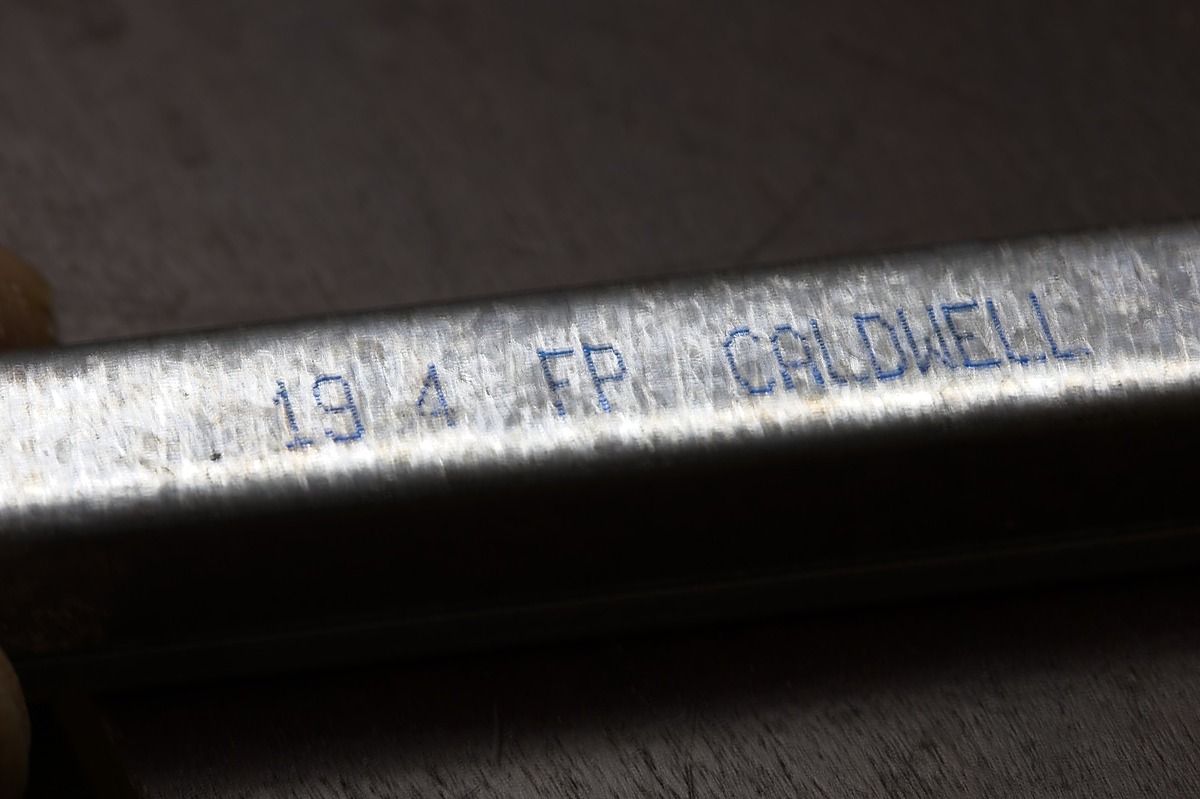

Searching for 19 4 CP CaldwellThis discussion includes image(s). 2 Jun 21, 2023
