1970s door

A home owner from Glen Ellyn, Illinois says:
February 12, 2022

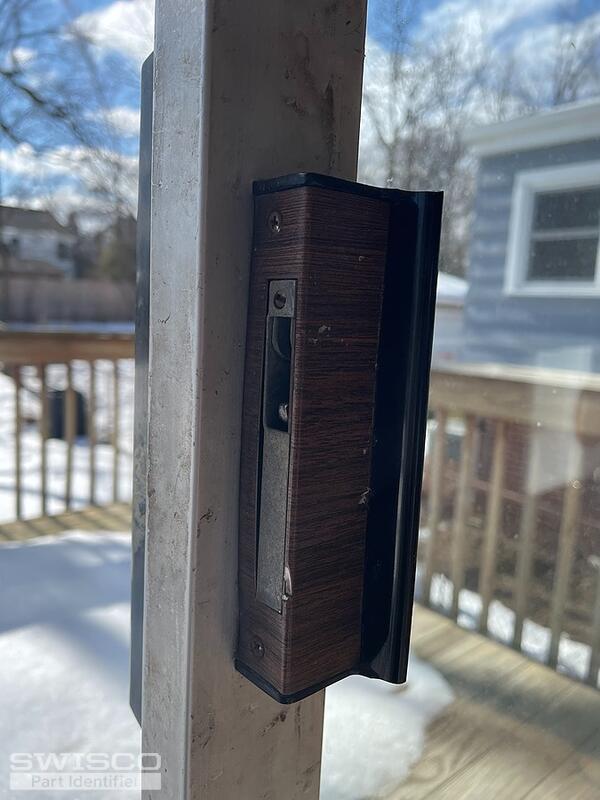

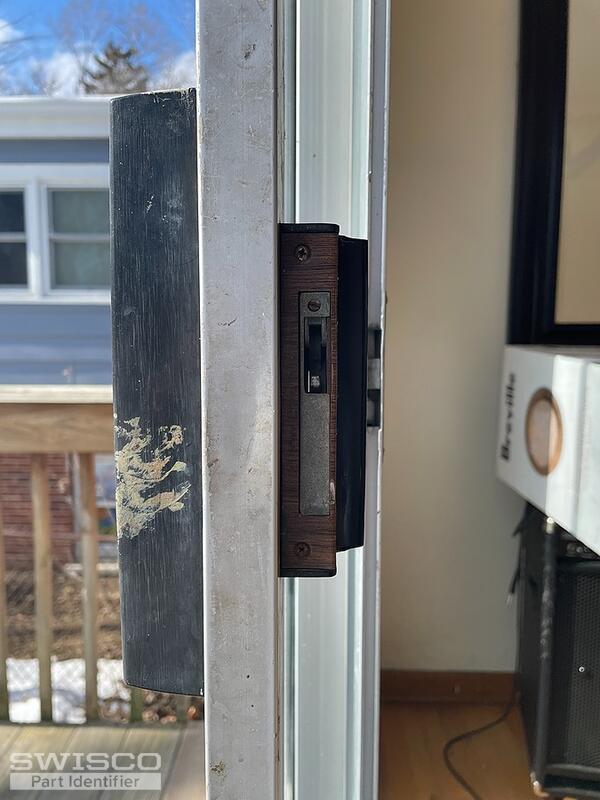

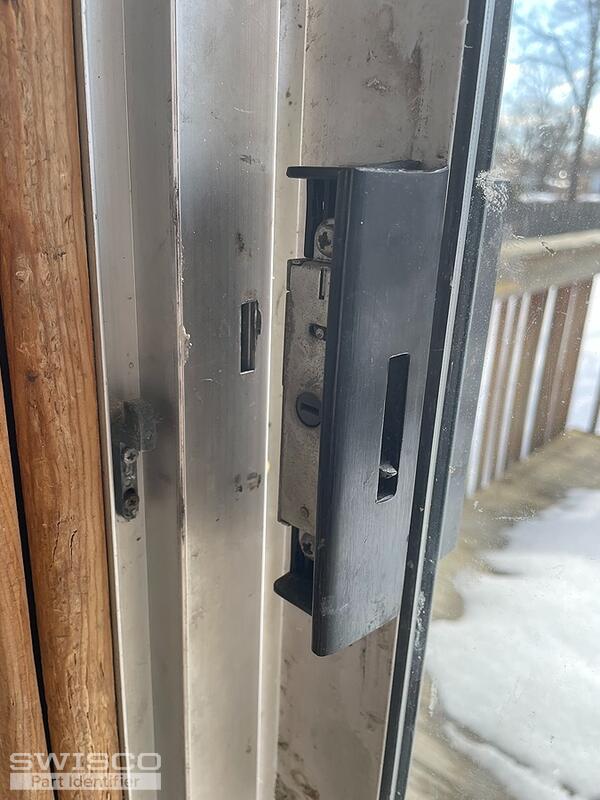

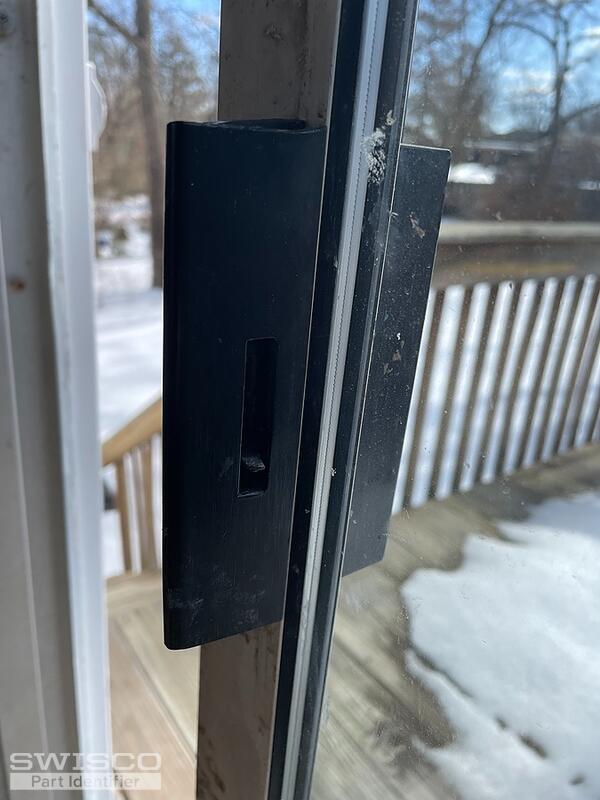

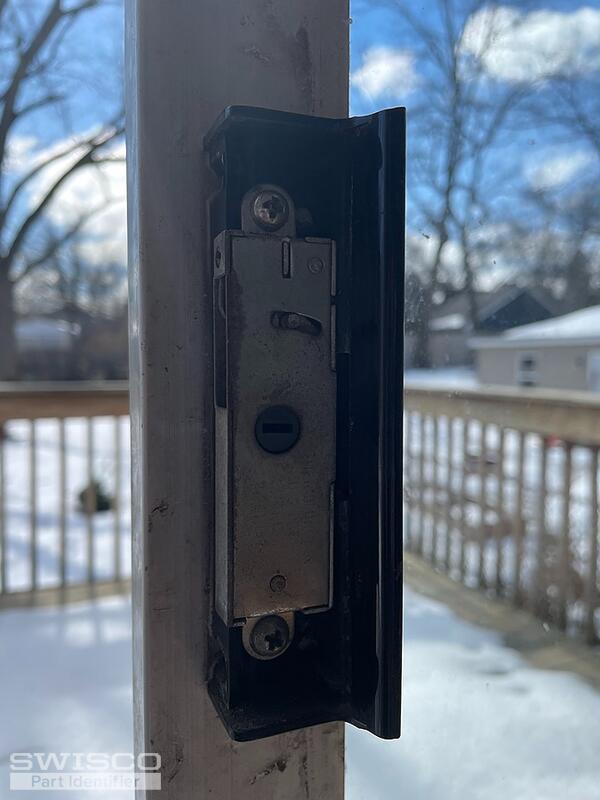

Hi - trying to find a replacement door latch for a 1970s era sliding glass door. The handle is 5 inches tall and the latch portion mounts on top of the inside of the door as opposed to the latch for modern doors, which are on the inside of the door.
Thumbnail of the uploaded file named IMG_0221 (1).jpg
Thumbnail of the uploaded file named IMG_0222 (1).jpg
Thumbnail of the uploaded file named IMG_0223 (1).jpg
Thumbnail of the uploaded file named IMG_0219 (1).jpg
Thumbnail of the uploaded file named IMG_0220 (1).jpg
Profile picture of Bob
Bob from SWISCO responded:
February 14, 2022

While not exactly the same, the 82-225 lock is familiar. This fits into surface mount handle sets like our 82-005, which has a hole spacing of 4-15/16". Look it over and see if you could use this handle set to replace your old one.
A home owner from Glen Ellyn, Illinois says:
February 19, 2022
Is the another piece to install on the outside of the door?
Profile picture of Bob
Bob from SWISCO responded:
February 21, 2022

The 82-005 comes with an outside pull. You also could use a different pull sold separately, like the 82-042 or keyed 82-306, that works with this handle set.
Surface Mount Sliding Door Handle Assembly, 4-15/16"
Surface Mount Sliding Door Handle Assembly, 4-15/16"
82-005
$27.90
Sliding Patio Door Internal lever lock
Sliding Patio Door Internal lever lock
82-225
$11.70
Keyed Exterior Sliding Door Pull
Keyed Exterior Sliding Door Pull
82-306
$29.70
Outside Pull
Outside Pull
82-042
$13.70
