1980 Pella metal clad wood

Home Owner from San Djego

Jul 28, 2024 10:44 am

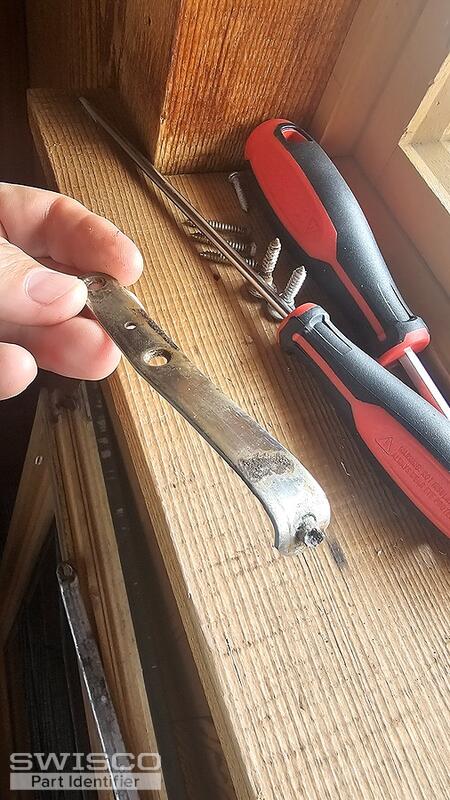

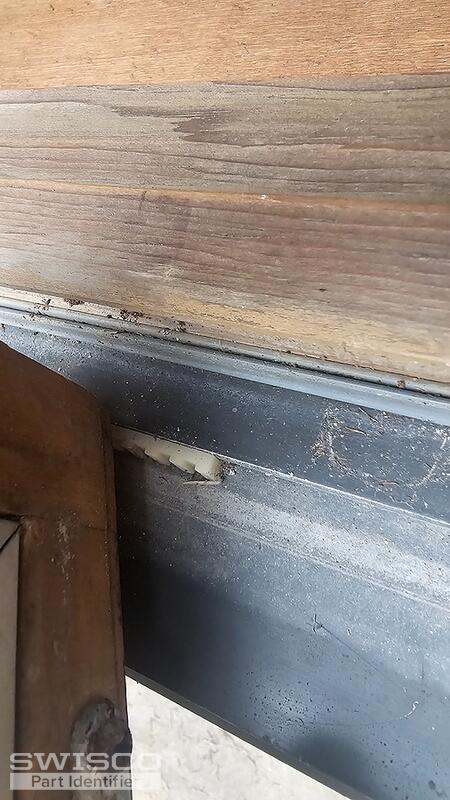

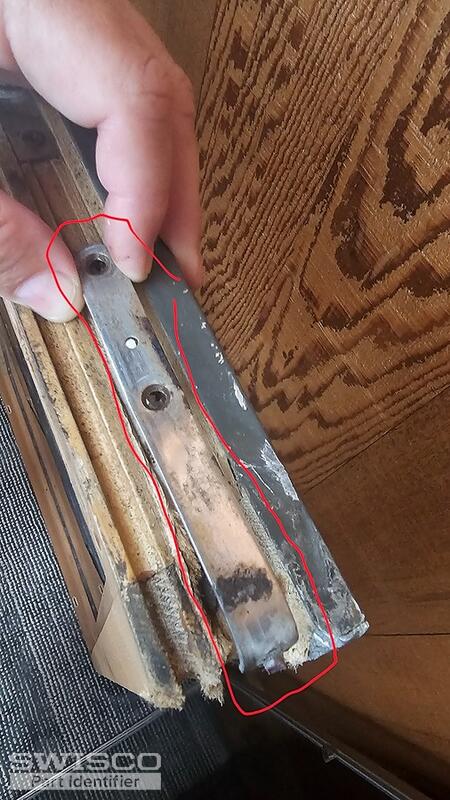

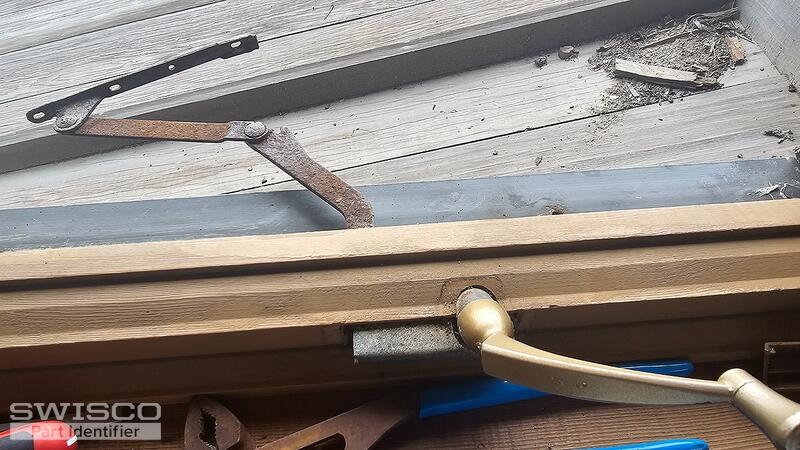

Looking for bottom hinge. Showed part from other window. 2 screws to attach. If set is required, OK.

20240728_073623

20240728_073705

20240728_073636

20240728_073525

20240728_072340

5 user uploaded images

1 Replies

+ Add a Comment

Jasmine

Jasmine from SWISCO

Jul 29, 2024 11:58 am

SWISCO

EXPERT

Thanks for posting! Your Pella window hinge can be replaced with our 39-351 and 39-352 9-5/8" hinge arms, 39-394 and 39-395 10" hinge arms, or our 39-396 and 39-397 12-1/8" hinge arms. To determine which of these is the best replacement for your window, you'll need to take a look over each of their dimensions.

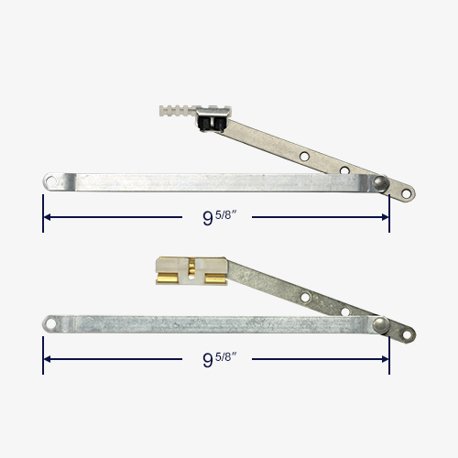

Alternate image for 39-351

Alternate image for 39-351

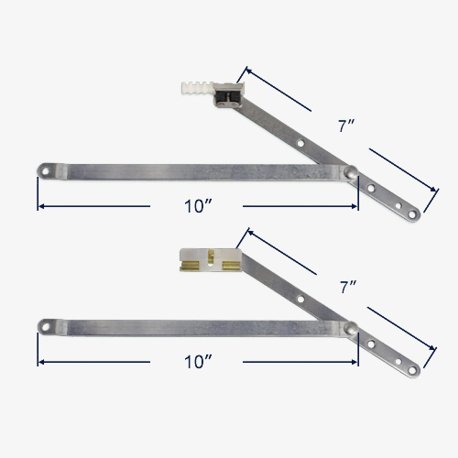

Dimensions for 39-394

Dimensions for 39-394

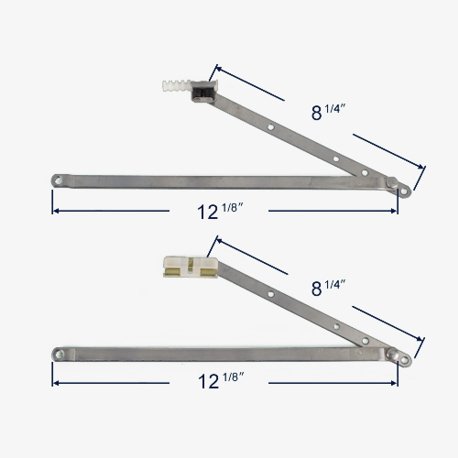

Dimensions for 39-396

Dimensions for 39-396
