1980s aluminium window balance spring parts

A handy person from Bellingham says:
I have a single hung window that doesn't tilt. It is a 1/2" channel. Channel is 28" in length. But besides that I'm having trouble determining which of your channels match mine. Thanks!
Thumbnail of the uploaded file named IMG_1571.JPG
Thumbnail of the uploaded file named IMG_1572.JPG
Thumbnail of the uploaded file named IMG_1573.JPG

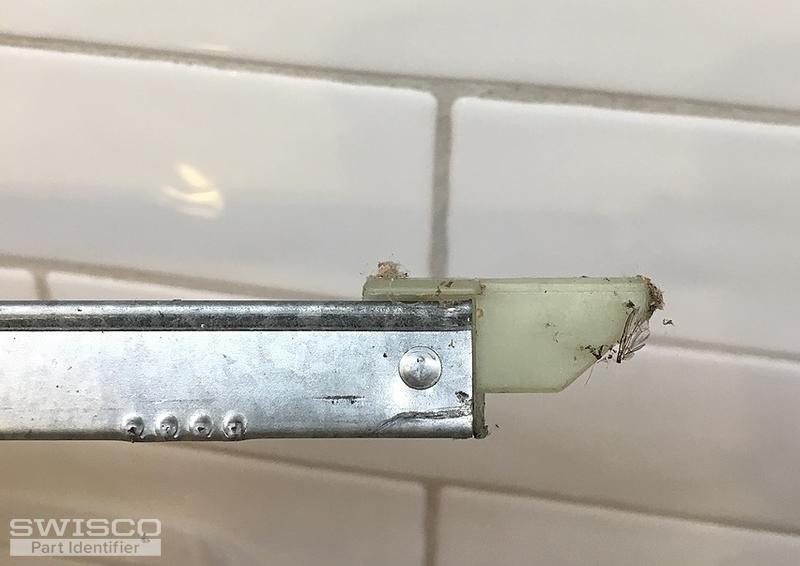

Thumbnail of the uploaded file named IMG_1574.JPG

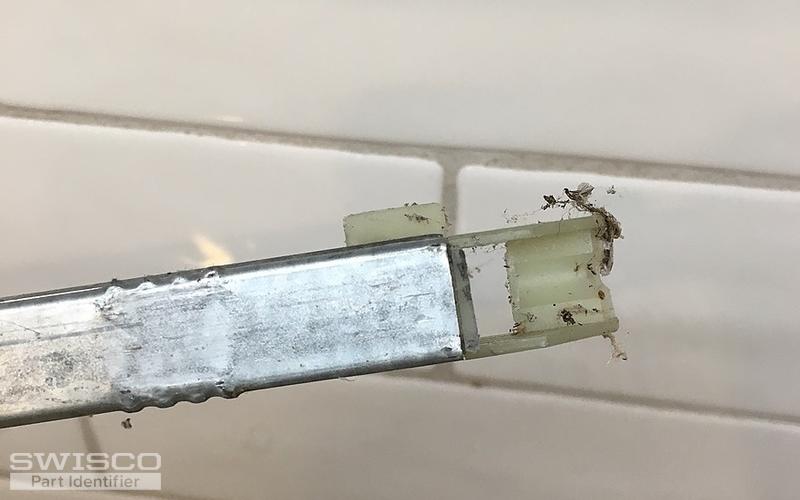

Thumbnail of the uploaded file named IMG_1575.JPG
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. See our S380-28 or S385-28. The only difference between these two balances is the 'depth' of the bottom nylon fitting. Compare both with your old hardware to see what matches best. You will need to select a stamp option. Look for a stamp code on your balance's metal channel. If there is none, weigh your window sash. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the product page.

A handy person from Bellingham says:
Thank you so much! That was super helpful.
Profile picture of Bob
Bob from SWISCO responded:

You got it! Please let us know if you have any other questions, we're more than happy to help as best as we can.
