1995 Windsor Casement Window Operator

Quick Learner from Seven Hills, OH

Aug 29, 2021 8:48 pm

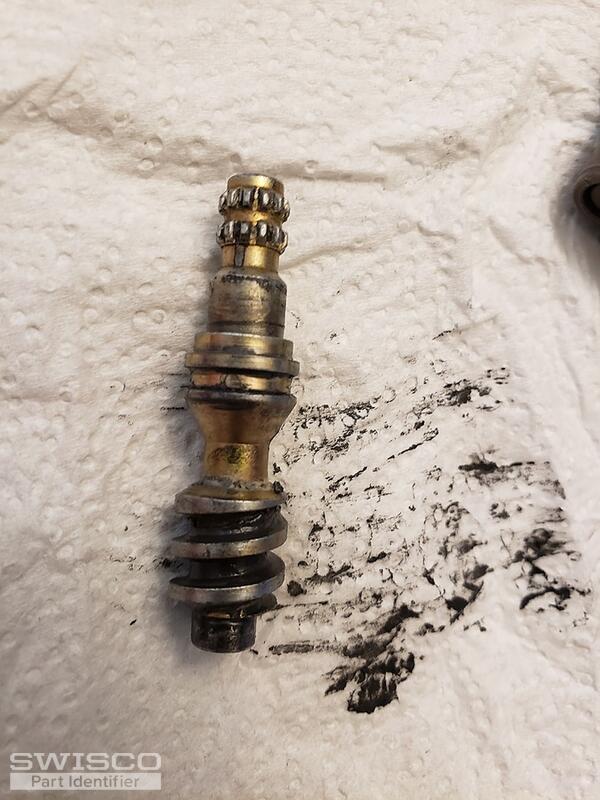

The drive screw is no longer properly retained in the operator mechanism and pushes out when closing the window. I may only need a retainer clop of some sort, but it may be simpler to replace the entire operator. An exploded parts view would be very helpful.

4 user uploaded images

4 Replies

Emily from SWISCO

Sep 2, 2021 11:47 am

Hi there!

Once the gear worm that holds the handle is stripped, unfortunately, the entire operator needs to be replaced. We'd be happy to help but we'd like to see a photo of your operator with the window open so that the arms that move the sash are fully visible.

Thank you!

Quick Learner from Seven Hills, OH

Sep 2, 2021 5:31 pm

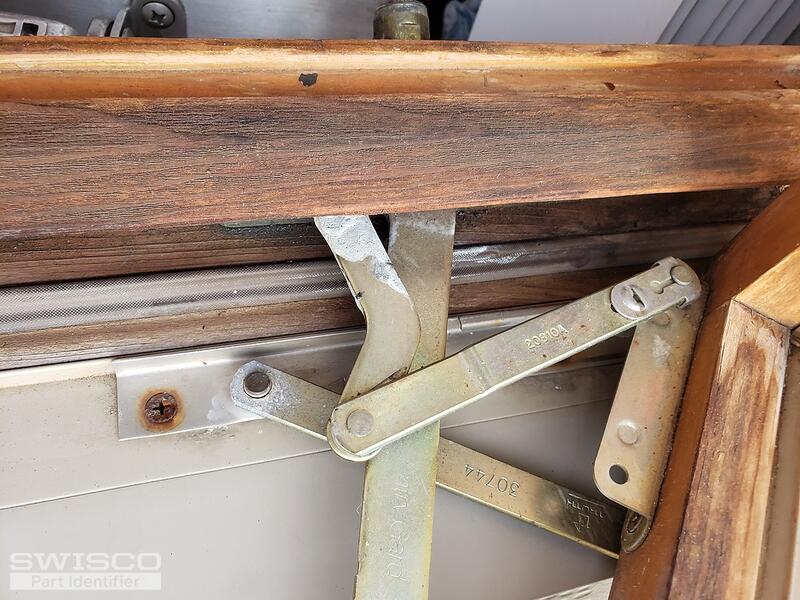

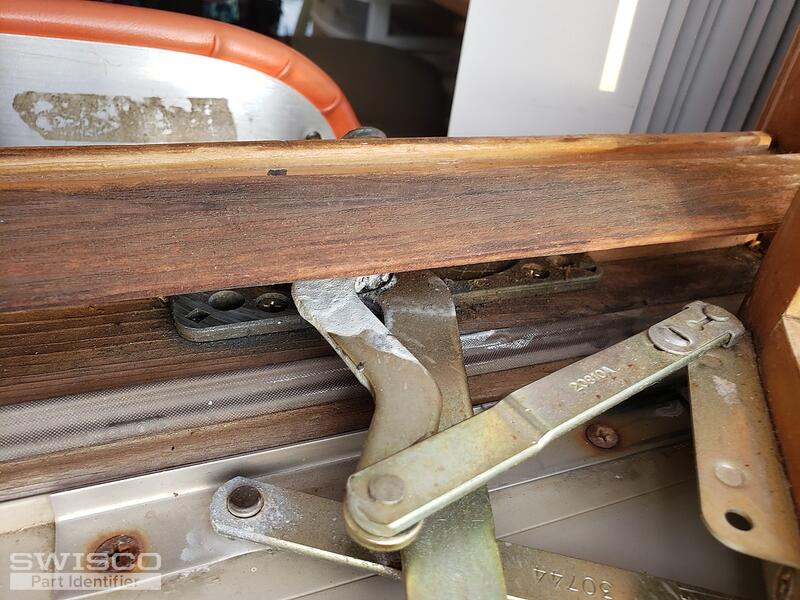

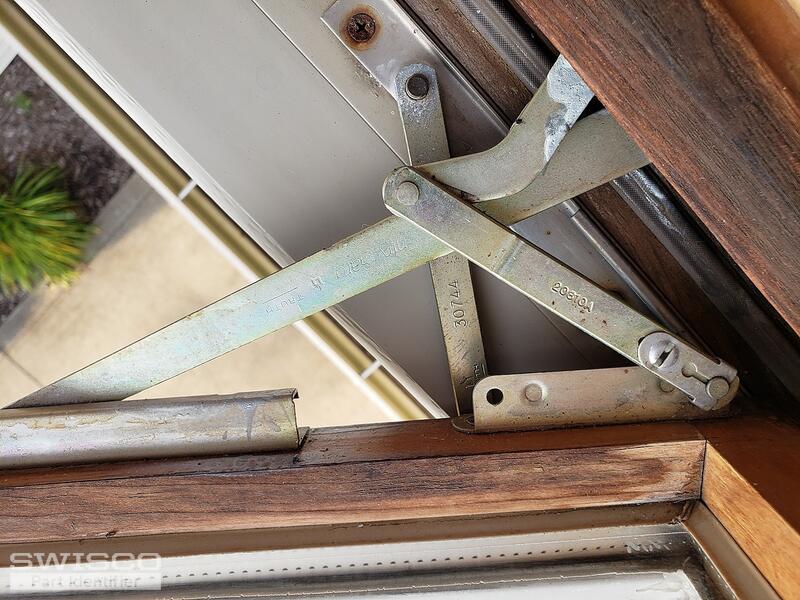

Please see photos of open window.

3 user uploaded images

Emily from SWISCO

Sep 3, 2021 9:55 am

Thanks for the extra pictures! This helps a lot.

Start by taking a look at the following two sets of operators: our 39-031 & 39-032 or 39-155 & 39-156. Carefully look over the dimensions for each set and see which ones match up for what you need.
