Product Code: 39-155

Caradco Window Crank, 9-1/2"

Name: Caradco Window Crank, 9-1/2"
SKU: 39-155
Price: 33.25 USD
Availability: InStock

$33.25

Quantity	Price
1-9	$33.25/ea
10-24	$32.25/ea
25-49	$31.27/ea
50+	$30.35/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

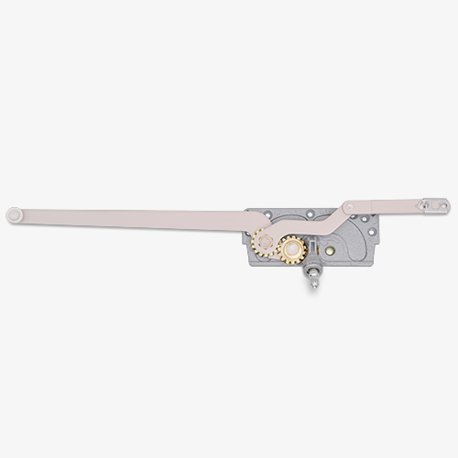

This is a genuine Truth Hardware EntryGard operator. This dual arm crank operator is used to open and close wood, metal, and vinyl casement windows. Often used in windows manufactured by Caradco, among other brands.

See SWISCO product 39-156 for the opposite handed version of the operator.
Will provide a full 90 degree window opening.
11/32" spline; handle sold separately.
Manufactured of high-pressure die-cast zinc for operator base; hardened steel drive worm and gears.
Features dual arm action to push sash open while pulling hinge side of the sash to the open position.
Link arm measures 3-13/16" overall with an upward offset.

Should this operator use the 39-107 or 39-107FK?

I have four entry guard dual arm operators, (39-032) The spline on the operators have all stripped. I will replace them. The current cover matches 39-107. Can I use 39-107FK instead? I would like a folding crank.

The corkscrew gear has come out my operator. Do you have it?

I have a situation the same on two of the windows in the house and I can't seem to locate the part/parts that I may need. on the underside on one of the cranks the numbers found are 14 45054 the other is 16 45054. When I was cranking the windows closed, these parts detatched from the window. Im not ... (cont.)

KK Casement Window Hardware

Also labeled as entry guard truth Can I get just a replacement clip to hold the pinion shaft in? Or do I need to order the whole assembly?

Casement window

Need replacement assembly

The closing mechanism stripped/broke when trying to open window after it was painted. On the handle is number 45054. I don't see any other markings on anything else.
