2 Channel Balance, Sash Guide, Take Out Clips

Home Owner from Erie, CO
May 17, 2023 3:59 pm
Need replacements: 2 channel balances, 2 sash guides, take out clips

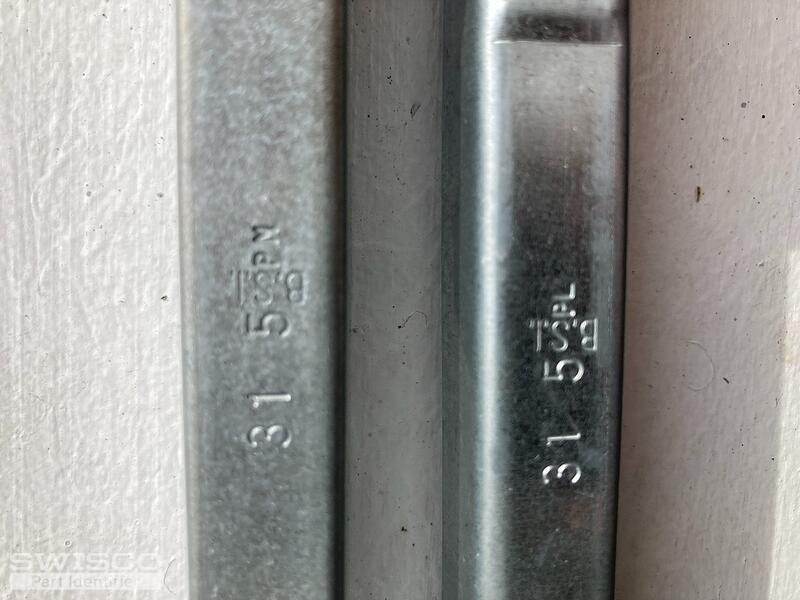

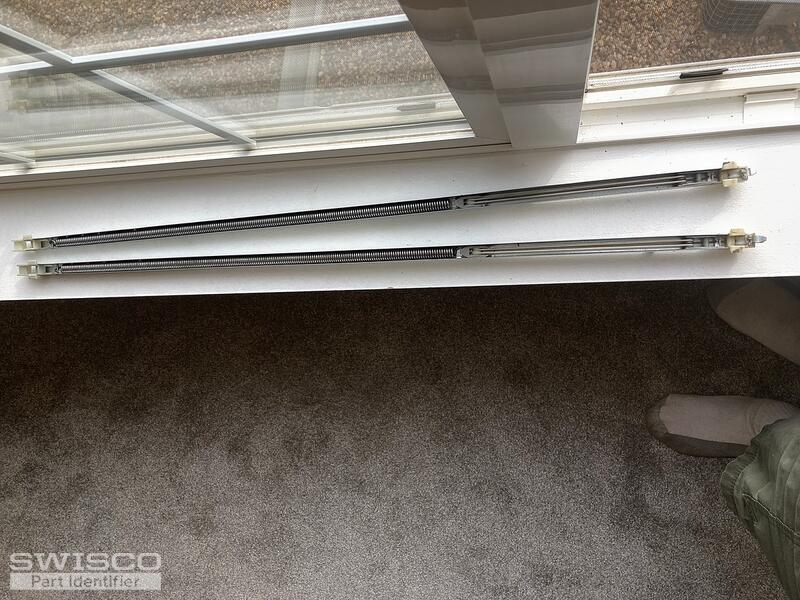

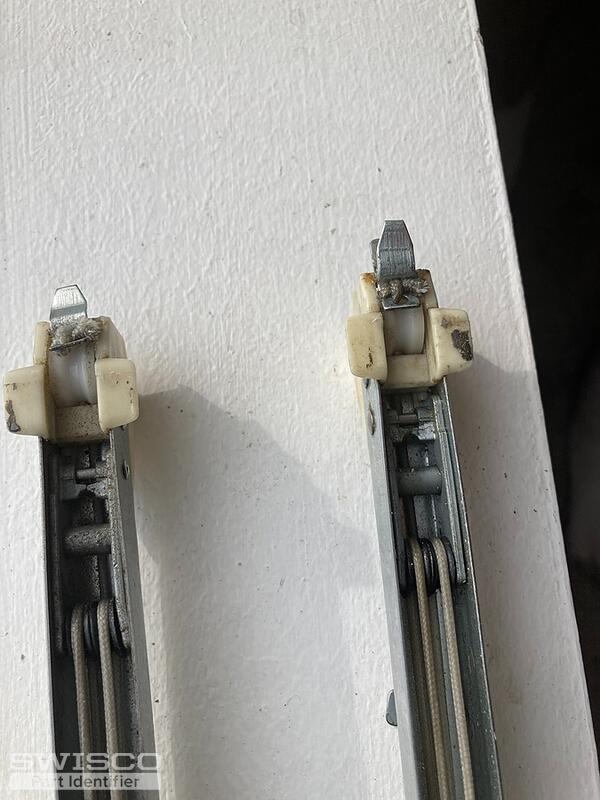

Channel Balance: "31 5 BSI" engraved (see pic "Channel Balance 06") - width 1/2 inch, length (metal only) 31 5/8 inches, Actual Window Weight 30 pounds

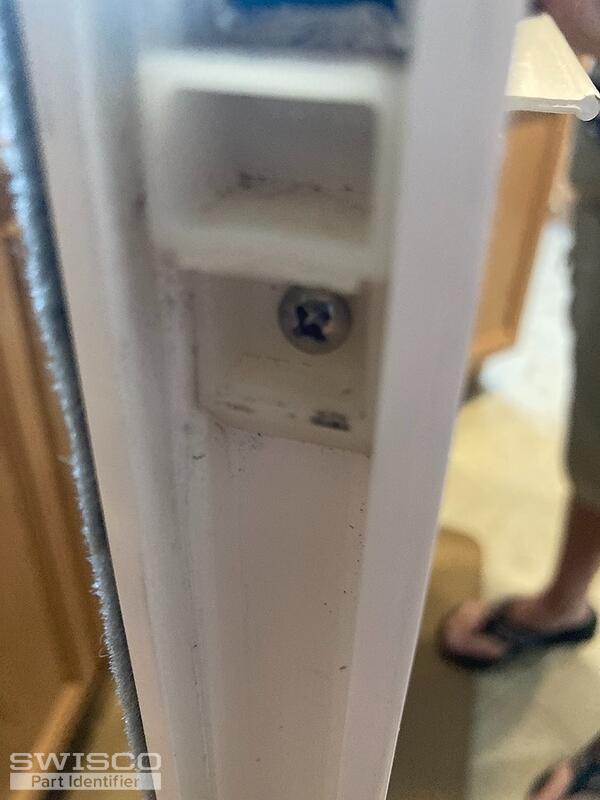

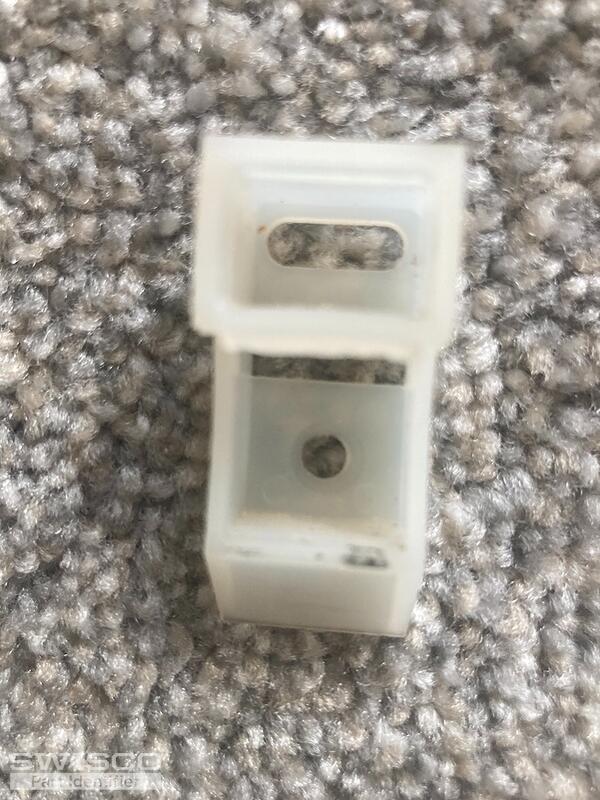

Sash Guide: Width 5/8 inch, Depth 9/16 inch, Length 1 1/2 inches; not larger on top

Take out clips: 1 1/4 inches (standard?)
Chanel Balance 06 Chanel Balance 01 Chanel Balance 02 Sash Guide Intact Sash Guide 001
5 user uploaded images
1 Replies
Jasmine from SWISCO
May 19, 2023 9:35 am

Thanks for writing in! These will need to be a custom/special order balance as they are an Extended Travel balance. I've just sent over a link with quote for the requested balances. You'll be able to use this link to view the quote and to add the balances to your online cart.

The take out clip I believe you are referring to is our 16-002.

We do not carry an exact match for your top sash guide, however, there are a few in our inventory that may be worth considering as a replacement. Take a look at our 18-176 and 18-188 , compare the dimensions from each of these guides to your existing top sash guides to determine if either of these might be a fit.

Alternate image for 18-176
Alternate image for 18-176

Alternate view of 18-176
Alternate view of 18-176

Alternate view of 18-188
Alternate view of 18-188

Alternate view of 18-188
Alternate view of 18-188
