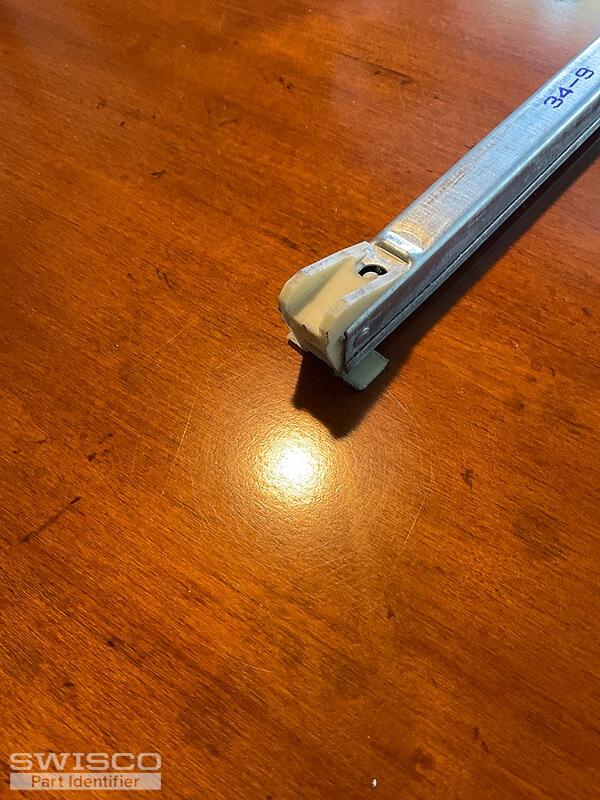

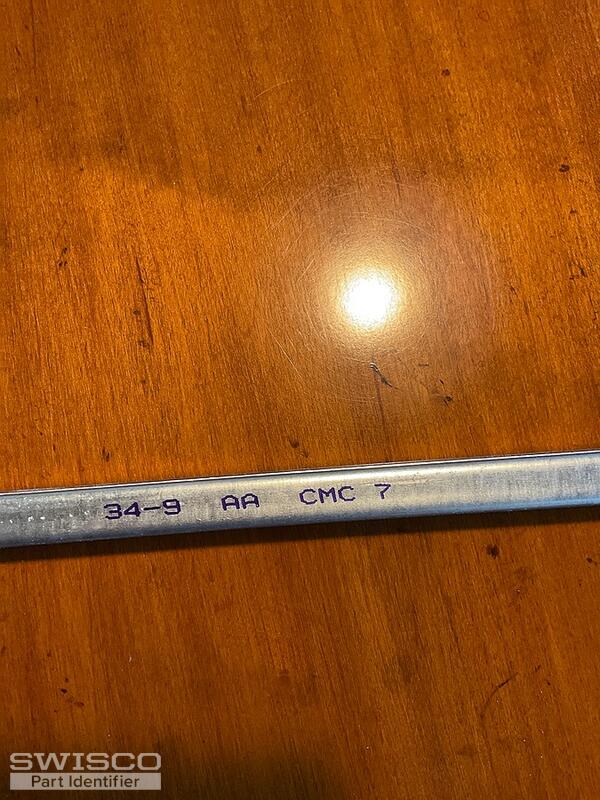

Metal portion of balancer. 35"
Weight of sash. 34.5 lbs
Need 2 new ones. Thanks for your help.
2 New Balances
Home Owner from Naples, Florida
Feb 24, 2023 9:00 am
5 user uploaded images
2 Replies
Casey from SWISCO
Feb 27, 2023 1:03 pm
Hello,
With this combination of attachments, you could have either the S380-35 or S385-35 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 3460 spring strength options to support a sash between 34-39 lbs. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
