2001 Milgard double mortise sliding glass door

Start a new Discussion

Home Owner from Plainfield Illinois

Jul 30, 2025 1:26 pm

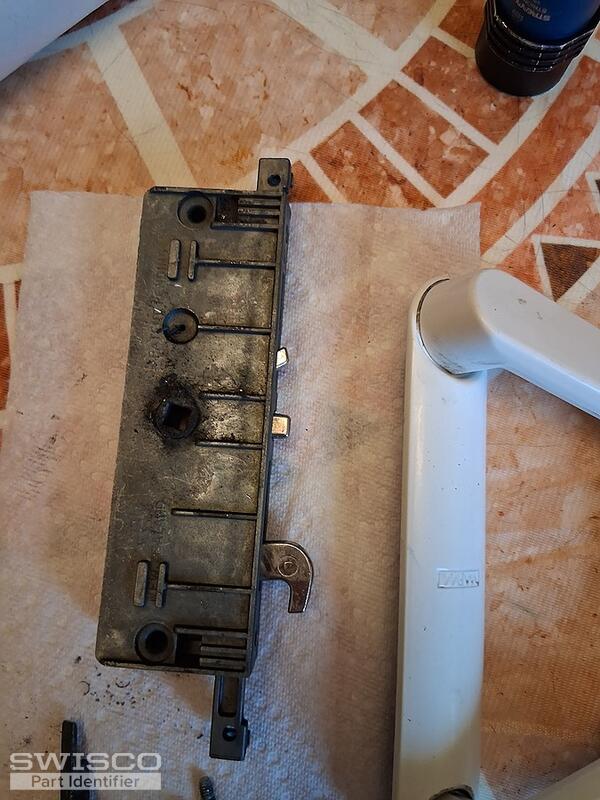

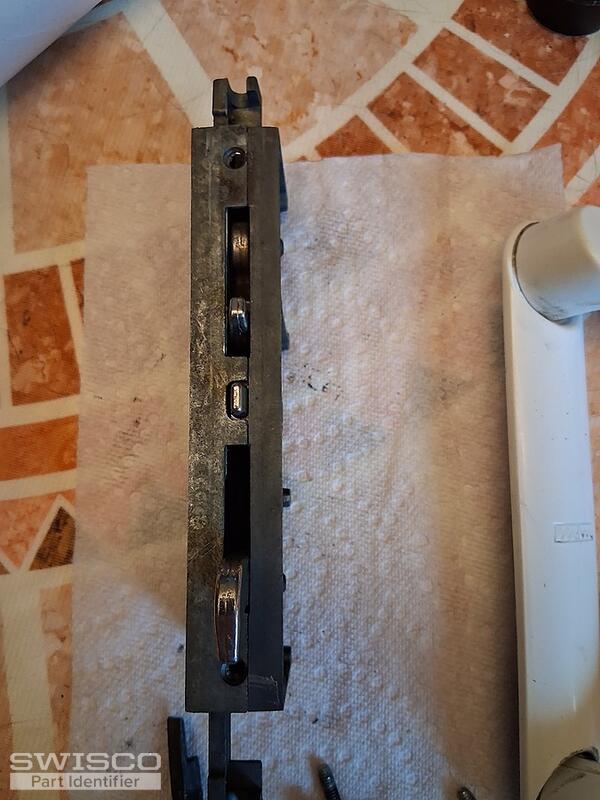

Double mortise lock is 13/16" wide and 5 7/8" long held in door with handle screws
Inner handle mounting holes are 4 15/16"
Mounting holes through door are 4 15/16"

5 user uploaded images

2 Replies

Casey from SWISCO

Aug 4, 2025 2:48 pm

Hello,

Your photos resemble old-style versions of the 82-080 handle set, which uses the 82-268B mortise lock. I'll include the specifications from our product pages below. Take a look and see what you think. Thanks for posting!

Dimensions for 82-080

Dimensions for 82-080

Dimensions for 82-268B

Dimensions for 82-268B
