21" channel balance for single hung window

Start a new Discussion

Home Owner from Scottsdale, AZ

Jan 13, 2023 6:11 pm

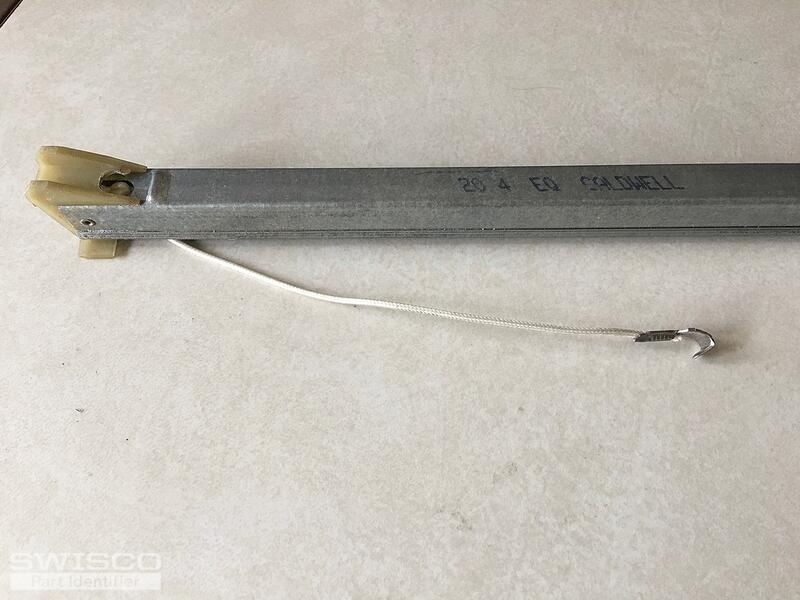

I need to purchase two channel balances and want to make sure I order the right ones. Pictures are attached. Thank you.

Susan

4 user uploaded images

4 Replies

Emily from SWISCO

Jan 17, 2023 11:20 am

Thank you for reaching out to us, Susan. Your balance matches either our S380-21 or S385-21, depending on the depth of the bottom fitting. Measure as shown in the image below to determine the best match. You will also need the 2040 strength option.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Scottsdale, AZ

Jan 19, 2023 4:39 pm

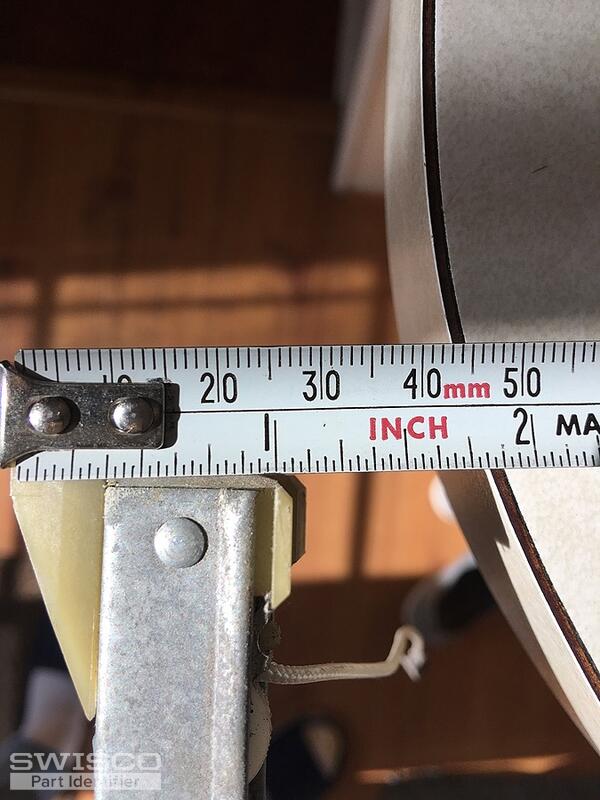

Thank you for your response. Attached is the best picture I could take and I think the dimension you asked about is 1 3/32nds. I was unsure so I went to a hardware store and they measured it and that's what they thought as well. If so, do you have the part in stock (I need two) and may I purchase them directly from you?

1 user uploaded image

Tom from SWISCO

Jan 20, 2023 9:50 am

Great! That would be our S385-21, then. We do have it in stock and you may place an order for it directly on our site at your convenience.
