21D window balancer

Landlord from Minneapolis
May 13, 2024 9:19 am
Looking for a 21D window balancer

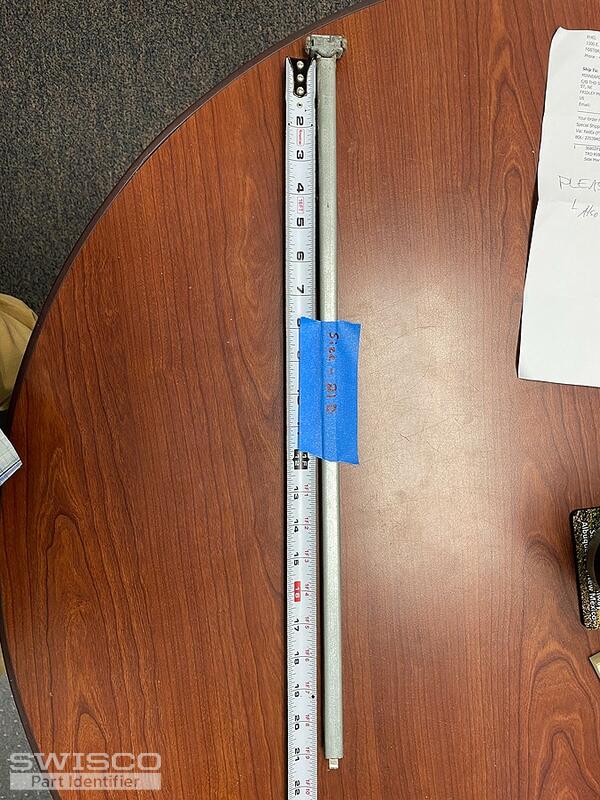

old style t lock shoe broken top clip full balance shot 21D Stamped channel
4 user uploaded images
5 Replies
Emily
Emily from SWISCO
May 14, 2024 10:28 am
SWISCO
EXPERT

Hello there! Thanks for reaching out to us. This looks like an older version of the S795-21 with the 21D stamp option. The shoe that comes with this is the 15-195 which is 1-1/4" wide with a closed cam but I'm not sure if this matches what you have. Can you measure the width of your shoe as shown below? Can you also confirm if your balance uses a hook or a screw to install?

Dimensions for 15-195
Dimensions for 15-195

Please note that it appears your balance was installed backwards. The channel balance "guts" should face the inside of the window track.

Landlord from Minneapolis
May 14, 2024 10:52 am
For the shoe the base is 1 1/4" just like the one in the picture. The other end looks closer to 1/2" than 15/32". Length is 1 1/16" not 1 7/8". The balances uses a hook. More pictures attached.

Thank you.

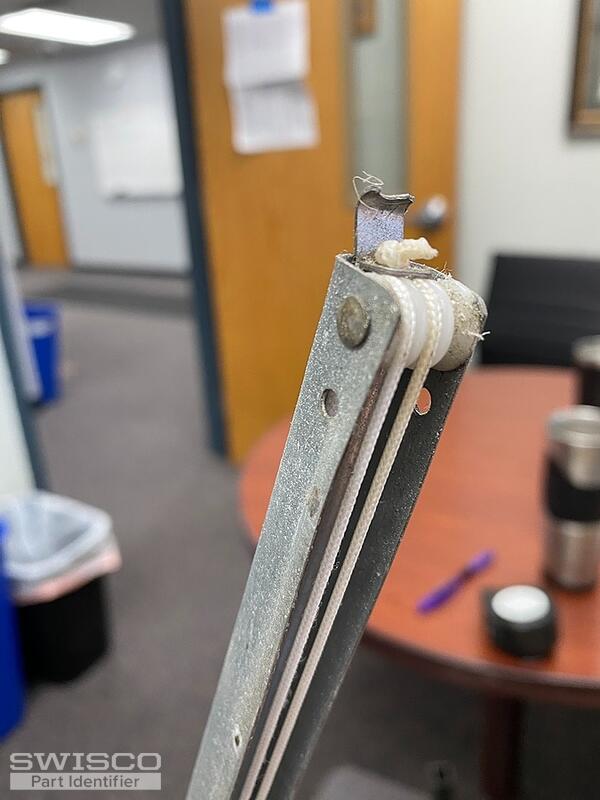

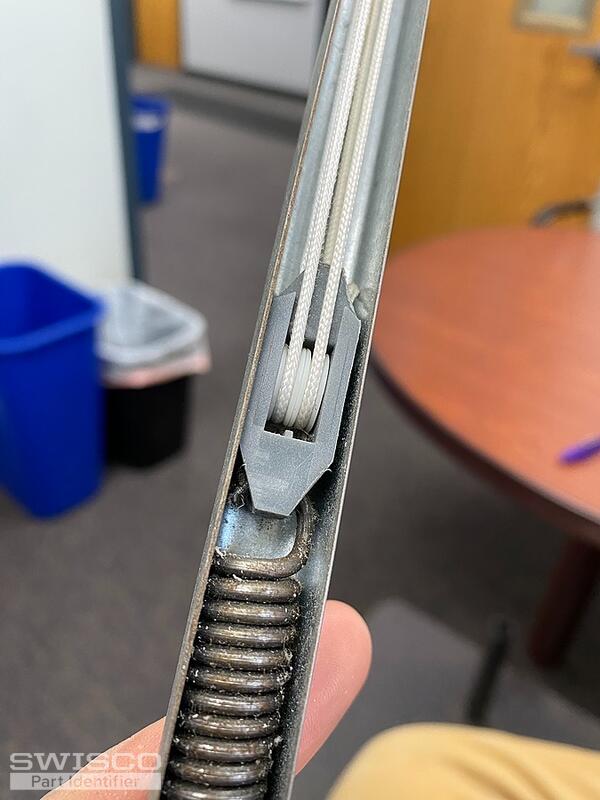

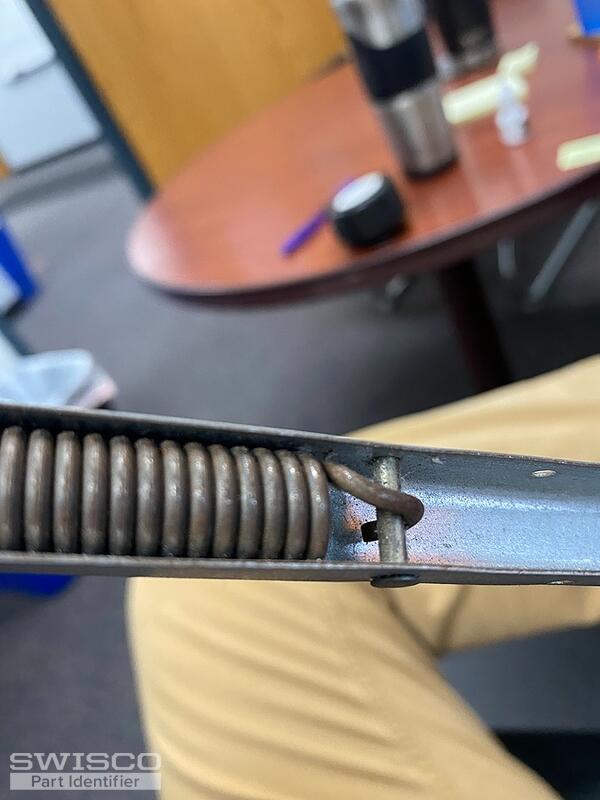

broken top hook clip pulley block spring
3 user uploaded images
Emily
Emily from SWISCO
May 15, 2024 9:47 am
SWISCO
EXPERT

Thank you for confirming! We can supply the S795-21 with the 21D stamp and 15-198 hook via custom order. I'll go ahead and email you a purchase link for (2) balances that you can use to place an order on our website.

I'll be here if you have any questions!

Landlord from Minneapolis
May 15, 2024 9:54 am
Thank you for sending me the quote, can I get 10 of these instead of 2?
Emily
Emily from SWISCO
May 15, 2024 10:08 am
SWISCO
EXPERT

Certainly! I will email you a new quote for (10).
