Hello!

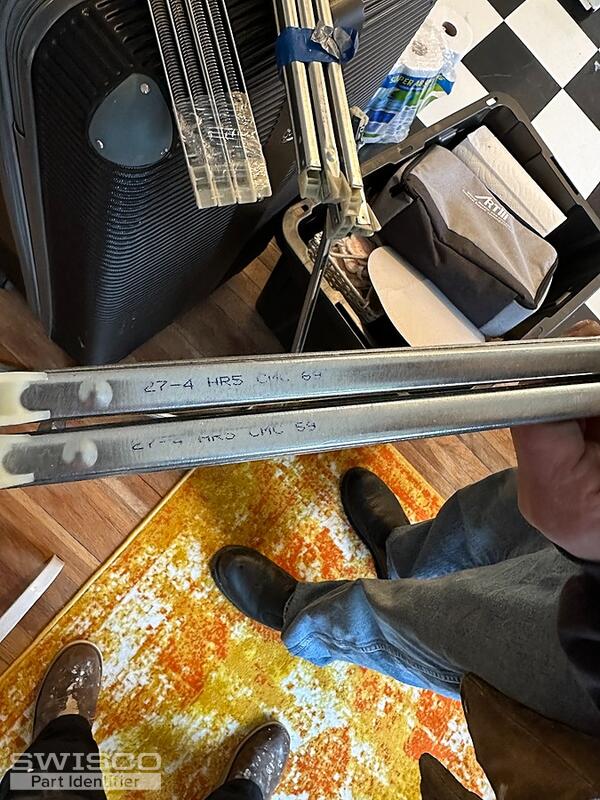

Can you please help me identify these balances based on the stamps? Thank you! I am look for 12 of each balance.

27-4 HR5 CMC 59
27-4 HR5 CMC 69

1 user uploaded image

7 Replies

Emily from SWISCO

Apr 22, 2024 9:44 am

Hey there!

We should be able to help with this. Can you upload clear photos of the top and bottom fittings? We would also like to see a shot of the inside of the metal channel where the innerspring connects to the pulley mechanism.

Professional from Seattle

Apr 23, 2024 12:21 pm

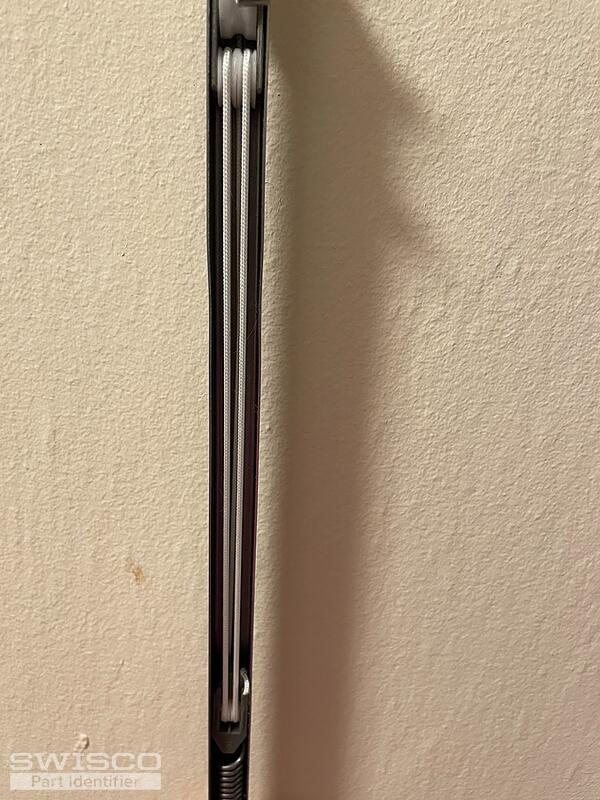

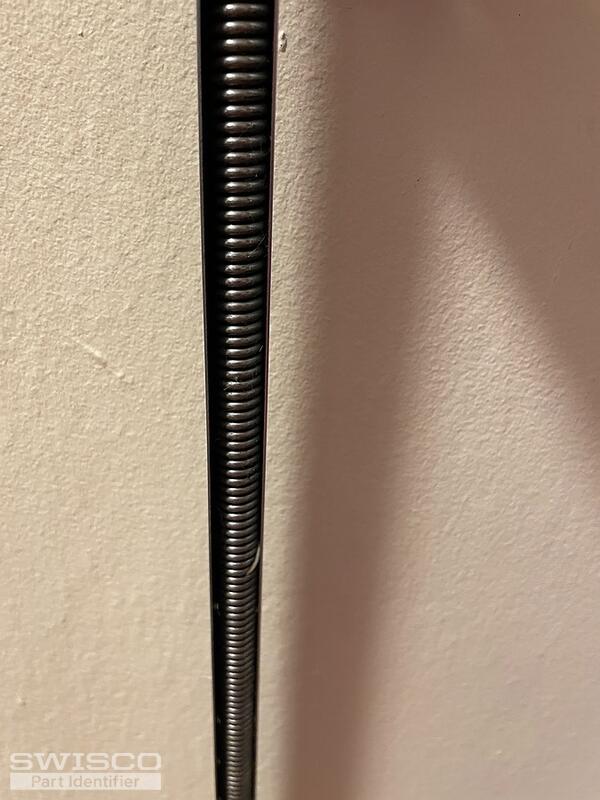

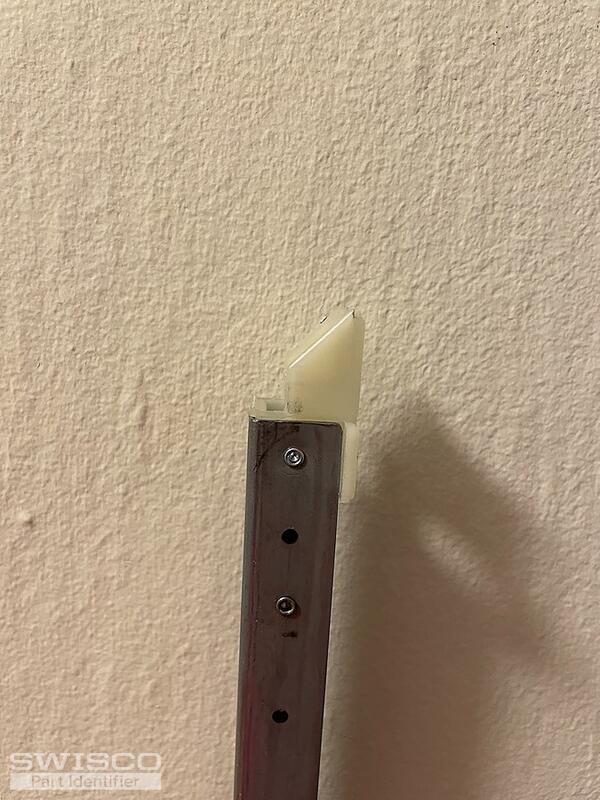

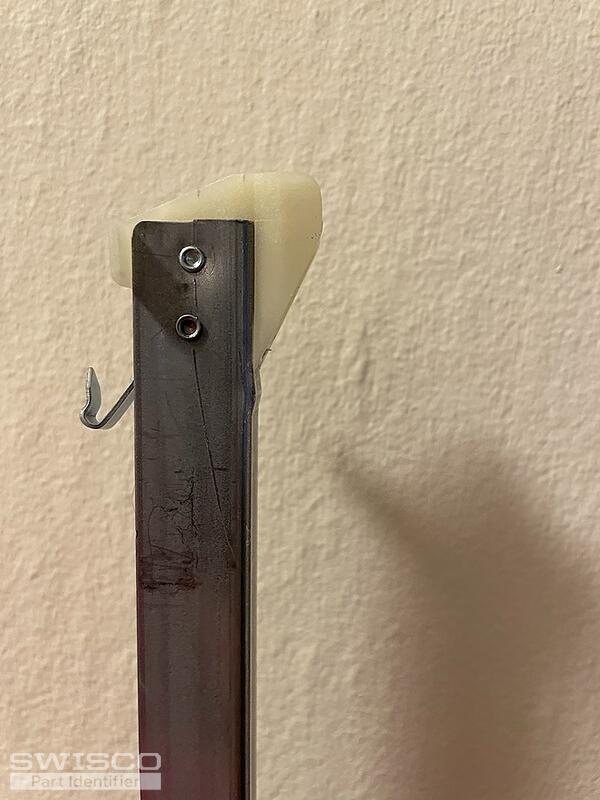

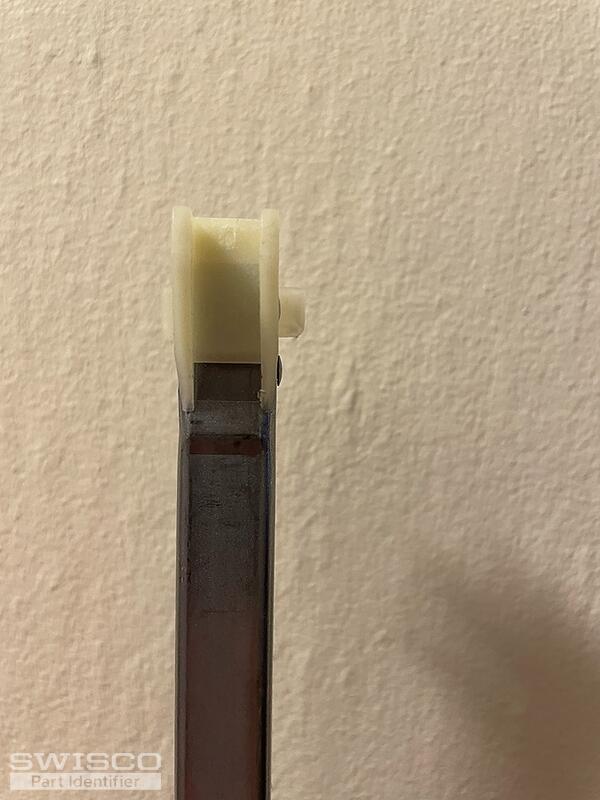

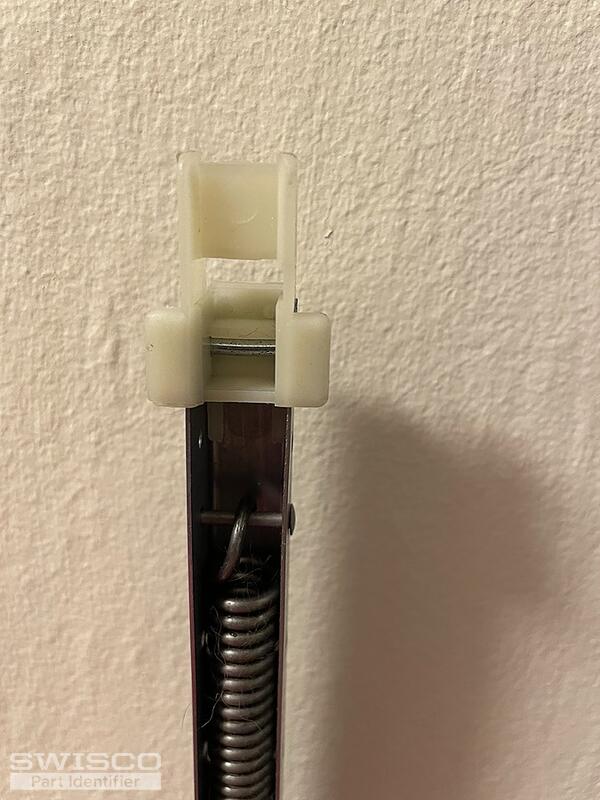

Please see pictures attached. Let me know if you need more information. Thank you!

5 user uploaded images

Professional from Seattle

Apr 23, 2024 12:22 pm

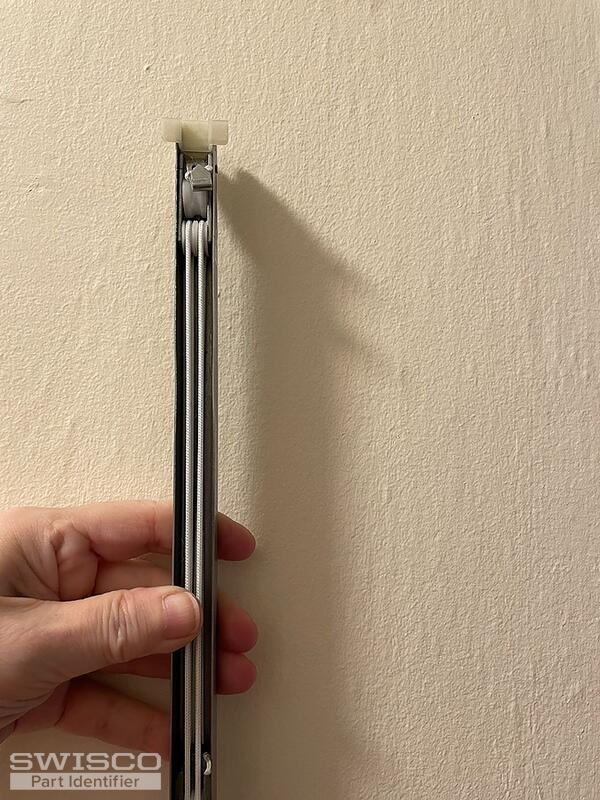

please see more attached thanks!

2 user uploaded images

Emily from SWISCO

Apr 24, 2024 9:11 am

Great, thank you! Based on what I see here, I recommend either the S380-28 or S385-28 channel balances. Measure as shown below to determine the best match. You will also want to select the 2740 stamp option based on your old 27 4 stamp.

Comparison of the S378, S380 and S385 balance shoes.

Professional from Seattle

Apr 24, 2024 12:47 pm

Thank you so much for that. Would you know what the original stamps are referring to with the last number?

27-4 HR5 CMC 59
27-4 HR5 CMC 69

what the 59 and or the 69 is referring to?

Emily from SWISCO

Apr 25, 2024 8:31 am

No problem! Those numbers are only relevant to the manufacturer but the important numbers to focus on are the first three: 27 4. These numbers represent the strength of the spring calibration.
