24TG, double hung tilt window channel balance

A handy person from Northville, MI says:
May 6, 2018

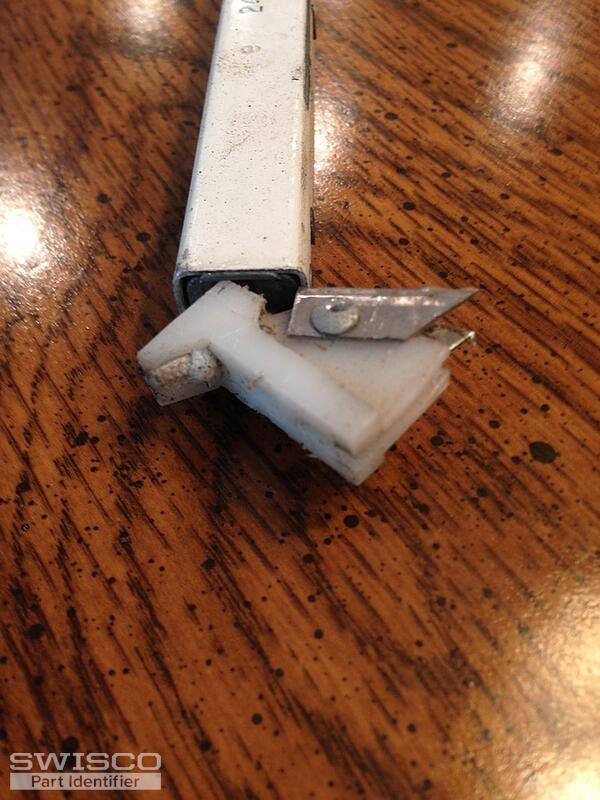

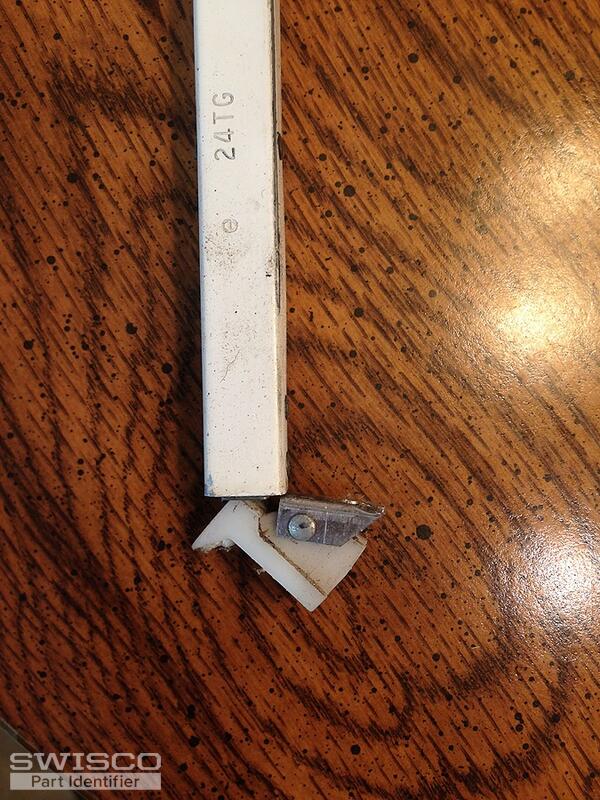

Non branded double hung tilt window channel balance. Only markings are "e 24TG".
Thumbnail of the uploaded file named 023.JPG
Thumbnail of the uploaded file named 024.JPG
Thumbnail of the uploaded file named 027.JPG
Profile picture of Paul
Paul from SWISCO responded:
May 9, 2018

Thanks for posting. I am afraid I do not recognize that white broken piece. Is there any way we can see a photo of the balance complete with no damage?
A handy person from Northville, MI says:
June 26, 2018
Here is a picture of the non-broken side.
Thumbnail of the uploaded file named 119.JPG
Thumbnail of the uploaded file named 120.JPG
Profile picture of Paul
Paul from SWISCO responded:
June 29, 2018

Hello! The length of your metal balance channel should be 25", so use a custom Series 770-25" with our 15-014 knife shoe. The spring weight for (24TG) will be (25C) for a sash weighing between 17-22 lbs. Please review and let us know what you think or if you have any questions.
Balance knife lock Shoe
Balance knife lock Shoe
15-014
$1.09
25" Series 770 Balance
25" Series 770 Balance
S770-25
$12.59
