Balance knife lock Shoe

Product Code: 15-014

Balance knife lock Shoe

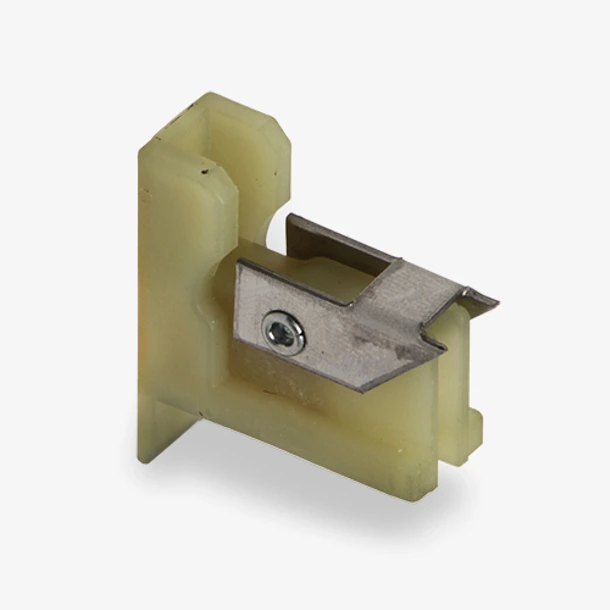

Main product image of the 15-014 Balance knife lock Shoe

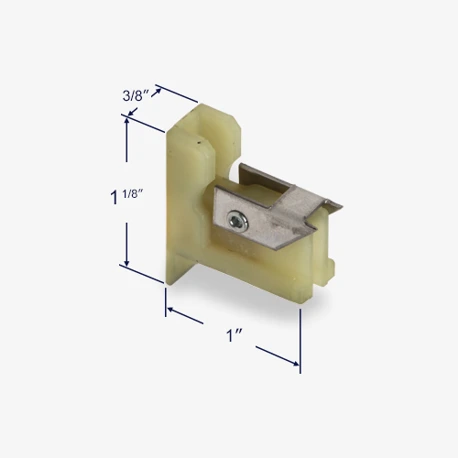

Dimensions for 15-014

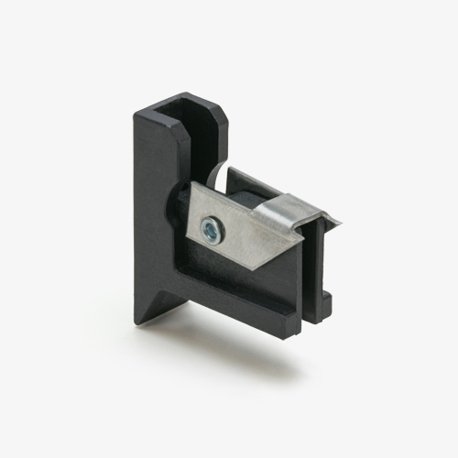

15-014 in the Black color option
How to install a ribbed tilt channel balance with knife lock shoe
$0.98/each
Quantity Price
1-24 $0.98
25-49 $0.91
50-99 $0.74
100-199 $0.66
200+ $0.61
Please Note: Bulk pricing applies only to purchases of the same option
Option:
black black
natural natural
Product Description
Channel balance knife lock shoe used in Series 751 tilt window sash support system. To remove old shoe from balance, place the channel balance in a vice and with a pair of pliers, pull the broken piece about 12" from the balance and lock it with a pair of locking pliers, taking the tension off the old shoe and giving you some slack with the balance string. Either untie the old shoe or cut the knot off to remove the old shoe and install the new shoe. To install the balance into the window, remove sash, screw or hook channel balance on the top of the window jamb. With a pair of pliers, pull down the shoe, about 12", and lock the string with a pair of locking pliers. With the tension off you can install the shoe into the window track. Choose color: natural or black
Customer Questions & Answers
Discussion # Of Replies Last Post Date
K/k windows...can they be fixed?This discussion includes image(s). 4 Jun 26, 2020
How to unlock the 15-014 shoeThis discussion includes image(s).This discussion includes video(s). 2 Jun 26, 2020
Balance Springs Need replacementThis discussion includes image(s). 10 Jun 19, 2020
Need replacement tilt window channel balanceThis discussion includes image(s). 6 Jun 4, 2020
Windows balancer shoeThis discussion includes image(s). 2 Jun 3, 2020
replacement tilt balance This discussion includes image(s). 2 Jun 2, 2020
Pivot pin locking cam for wood double hung window unknown manufacturerThis discussion includes image(s). 4 May 25, 2020
Window channel balance systemThis discussion includes image(s).This discussion includes video(s). 4 May 23, 2020
