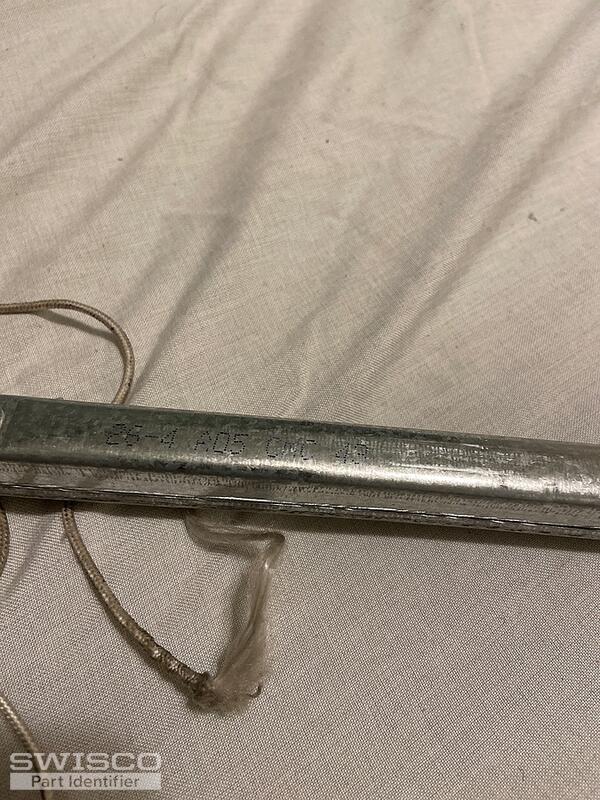

26-4 A05 CMC 43

A home owner from US says:
August 3, 2021
I need 2 parts
Tanks
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:
August 6, 2021

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from US says:
August 12, 2021
Tanks I just place and order,,

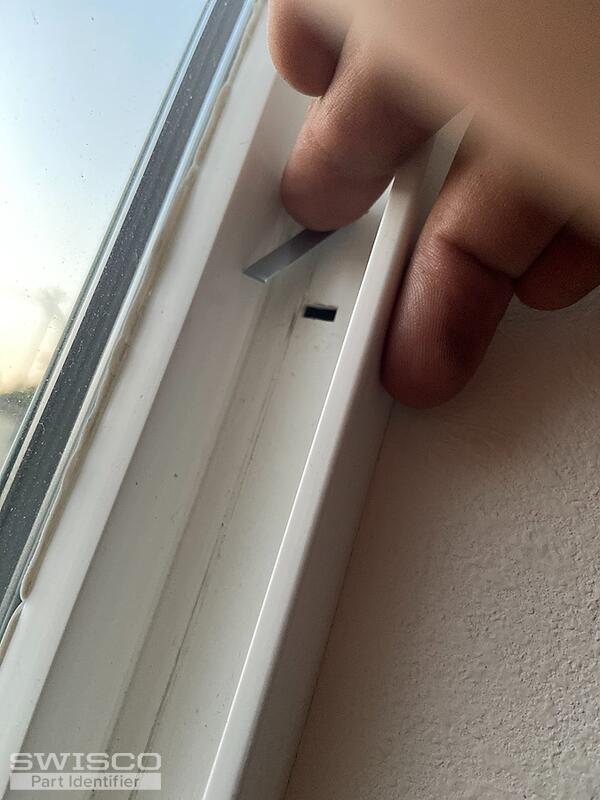

You help me a lot but at the time I put the window back I break and other part ??
Is and small piece. See attached photo
My order # is 1696605 ..
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:
August 13, 2021

It looks like you need a new take out clip. In that case, take a look at our 16-002 and compare our dimensions to yours to see what you think.
