26" Non Tilt Block and Tackle Window Balance 5/8" Stamp 25-3

Handy Person from Montana

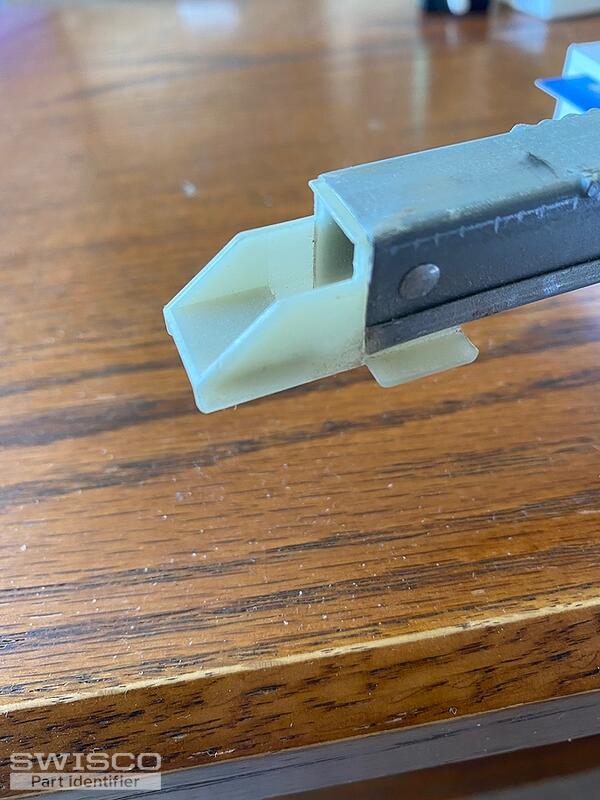

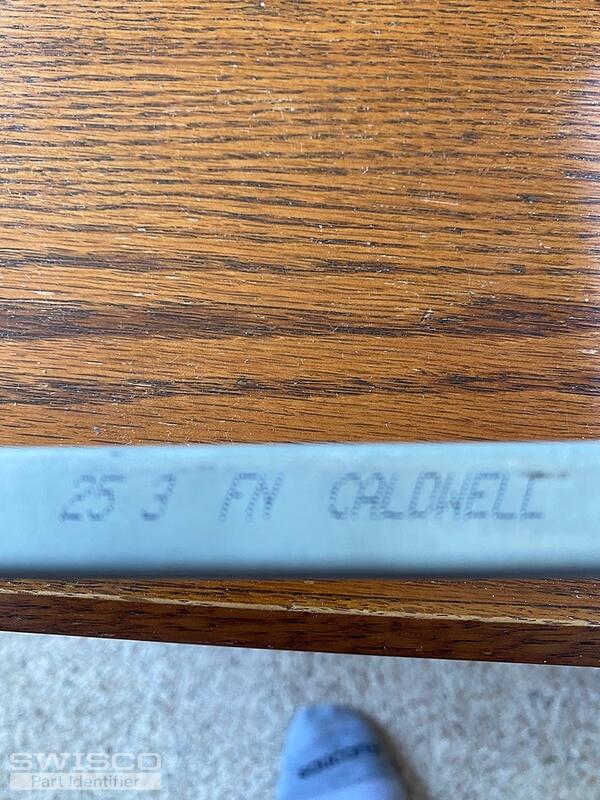

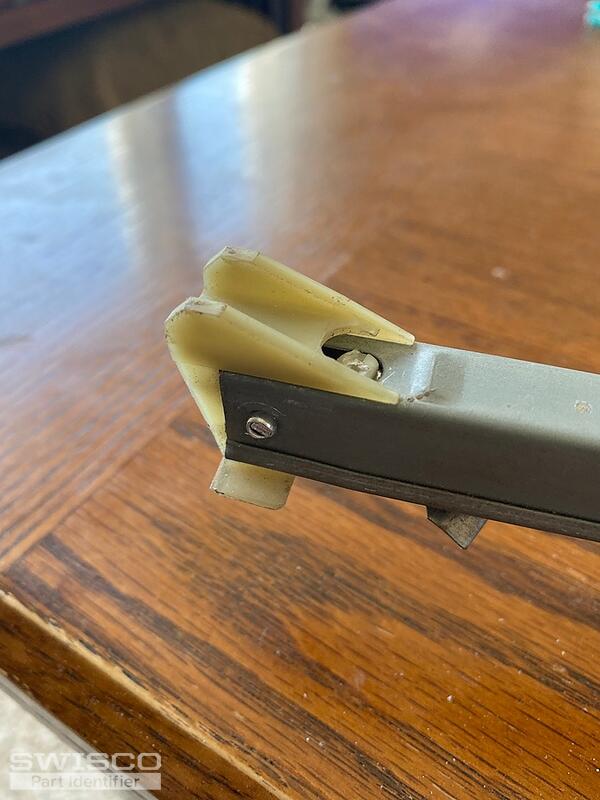

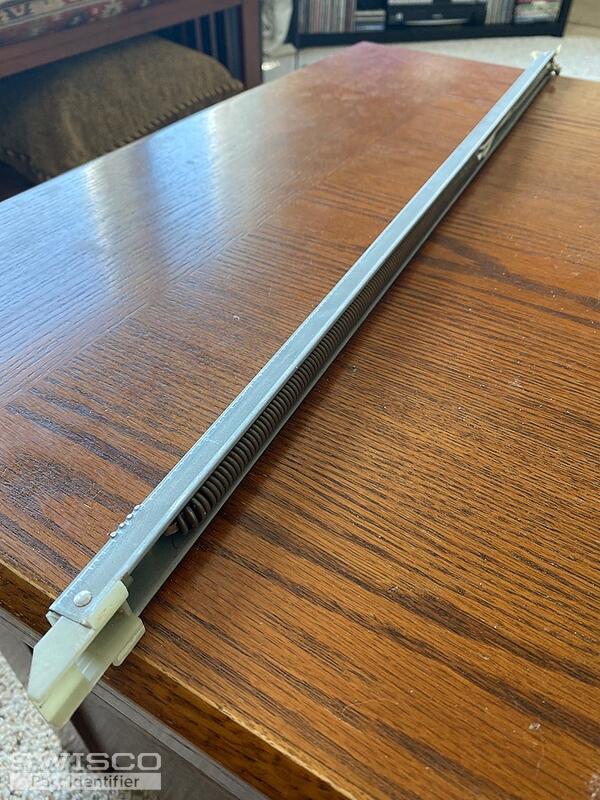

I would like to buy 4 of these! They are 26" Non Tilt Block and Tackle Window Balance 5/8" Stamp 25-3 FN Caldwell
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! It looks like you have either the S380-26 with a 1" shoe or the S385-26 with a 1-3/32" shoe. The metal channel of these balances is 26".

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

You'll need to select the 2530 stamp for a sash weighing 15 to 19lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
