26" Series 380 Channel Balance

Product Code: S380-26

26" Series 380 Channel Balance
$10.23/each
Quantity Price
1-11 $10.23
12-49 $9.21
50-99 $8.70
100-249 $8.18
250+ $7.67
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a Series 380 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 26" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-005 top and 15-005 (1" deep) bottom fittings and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
Stamp Option Sash Weight Range
2510 5 to 9 lbs
2520 9 to 15 lb
2530 15 to 19 lbs
2540 19 to 25 lbs
2550 25 to 28 lbs
2560 28 to 30 lbs
2565 30 to 33 lbs
2570 33 to 36 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Related Videos
Related Item(s)
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Replacement Channel BalanceThis discussion includes image(s). 2 Nov 18, 2022

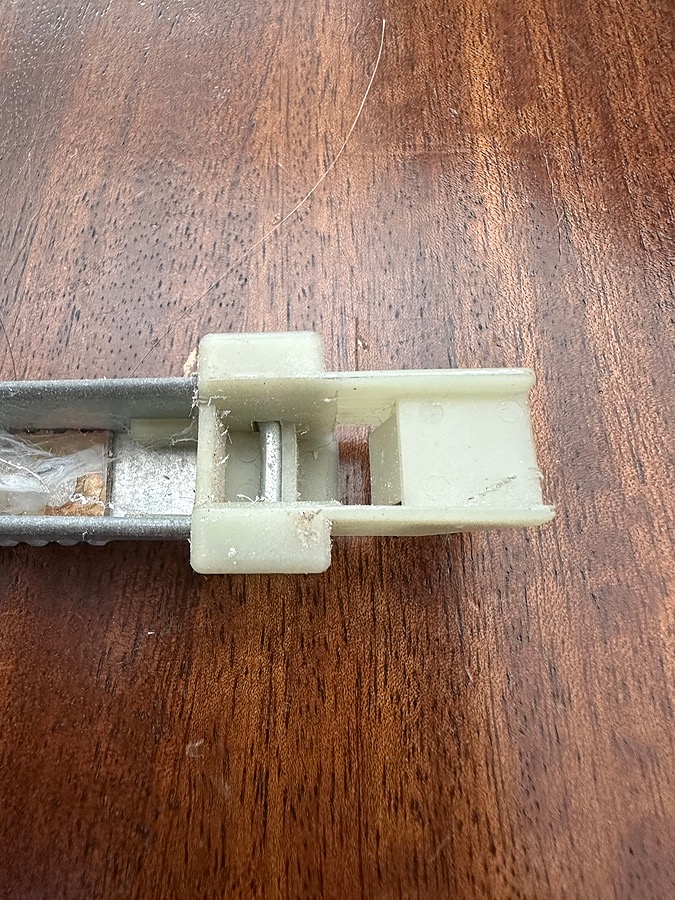

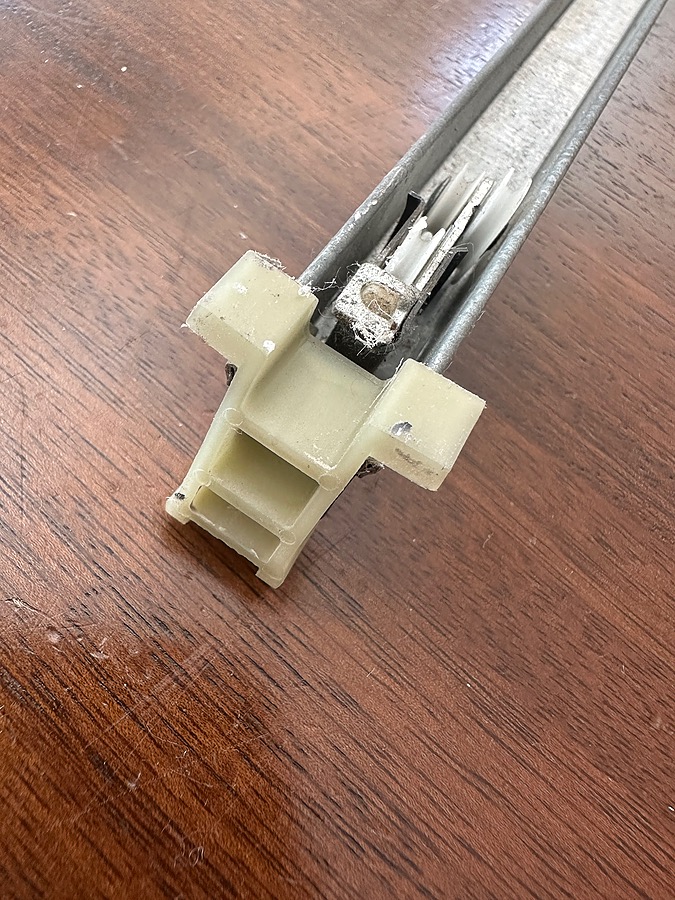

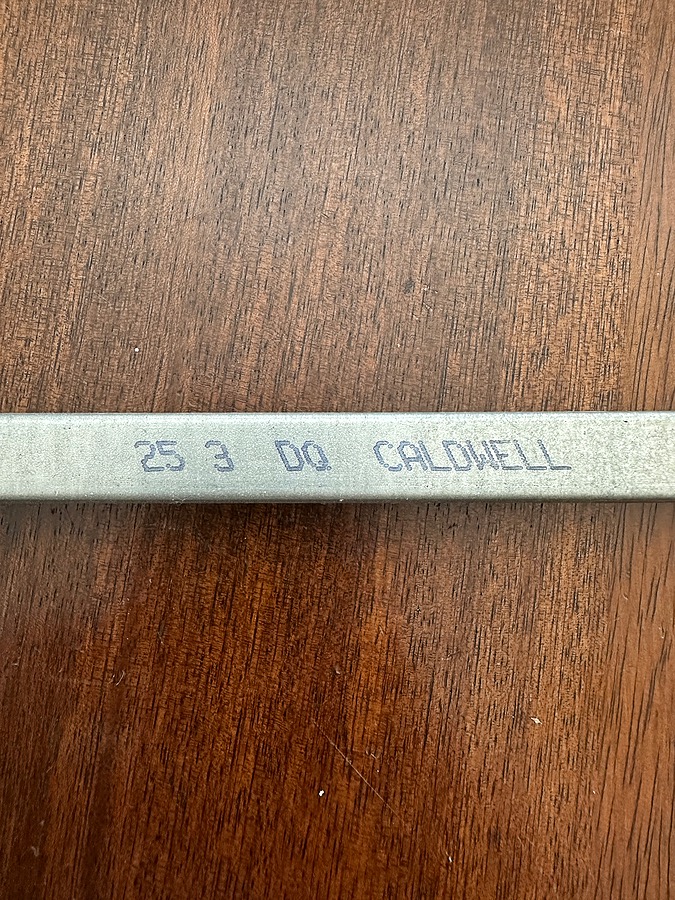

Window balance replacement part 25 4 kQ CaldwellThis discussion includes image(s). 2 Oct 28, 2022
27" Window Channel BalanceThis discussion includes image(s). 8 Oct 21, 2022
Hardware Info StampThis discussion includes image(s). 4 Oct 11, 2022
26" channel block. 25 4 GW CMC 11This discussion includes image(s). 2 Oct 10, 2022
What is the channel balance that I need.This discussion includes image(s). 4 Sep 27, 2022
Window balance needed.This discussion includes image(s). 2 Sep 26, 2022
Window balances and channel piece This discussion includes image(s). 2 Sep 20, 2022
