26" long metal channel window balance

Question

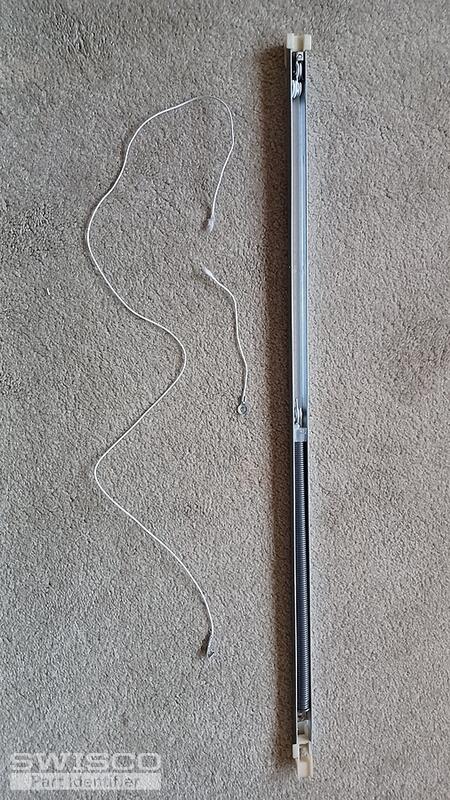

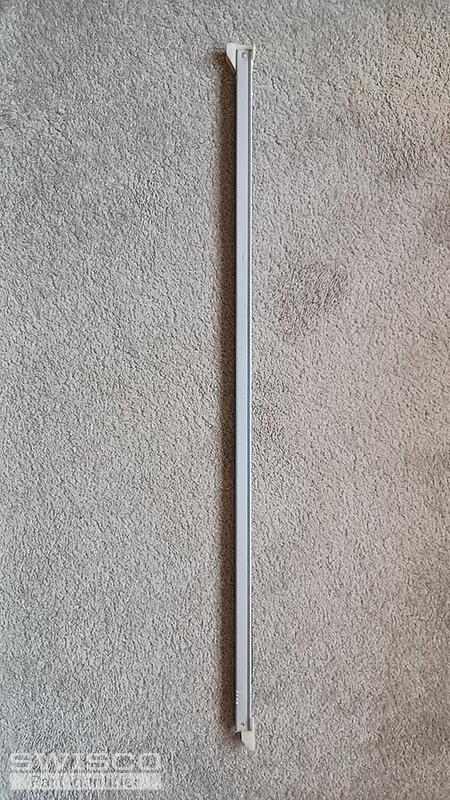

The cord broke on one of my window balancers and I would like to install 2 new ones.  The marking on the channel is: 25 4 HW CMC 11.  The channel is 26" long and 1/2" wide.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2540 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
