26F BSI Channel Balance

A contractor from Michigan says:
February 14, 2019

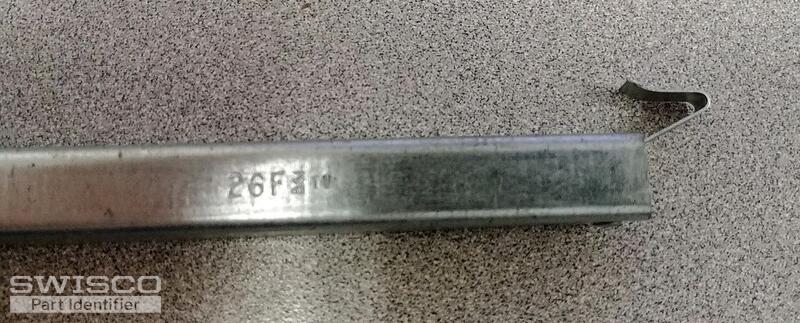

Need 20 channel balances. The metal is 26" long and has a "26F BSI TV" stamp at the clip end. Balance does not have any guide or other mechanism on the ends other than the spring clip attached to the string. The channel is 1/2" square, flat backed except at spring end it is scalloped in. Spring clip is 1/4" wide, opening approx. 1/2",approx 9/16" tall.
Profile picture of Paul
Paul from SWISCO responded:
February 14, 2019

There is a T-Lock shoe attached at the bottom of your balance channel that we can not really see. Your type of balance isn't available and has been replaced with Series 795-26 with a 15-195 (1-1/14" wide) bottom T-Lock shoe. The top of the balance is screwed on, so you will also need the 26-200 screw plug along with the 33-090 screw. The option would be 26F. I also recommend viewing our media guide video on how these are installed.
26" Series 795 Channel Balance
26" Series 795 Channel Balance
S795-26
$13.45
Balance Screw Plug
Balance Screw Plug
26-200
$0.49
#8 x 3/4" Philips Pan Head SS Screw
#8 x 3/4" Philips Pan Head SS Screw
33-090
$0.27
1-1/4" T-Lock Balance Shoe, Closed Cam
1-1/4" T-Lock Balance Shoe, Closed Cam
15-195
$1.92
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
