27-4. BA. CMC 11 Alenco windows

A home owner from Albuquerque, NM says:
June 27, 2022
Looking to replace channel balances. See pics
Metal length is 28 inches
End depth is 1 1/16 inches
Identifier info is 27-4. BA. CMC 11
Thumbnail of the uploaded file named FA687FBF-7E22-450D-B722-56421532A4D1.jpeg
Thumbnail of the uploaded file named 4C95D437-41CA-4016-BD10-22741C819689.jpeg
Thumbnail of the uploaded file named 9D199BC1-8A27-4933-B441-961F7920BA2A.jpeg

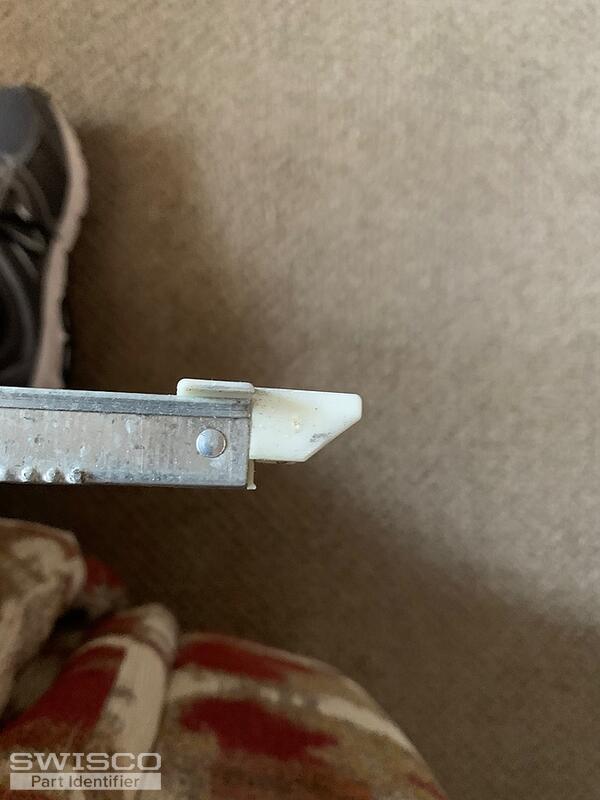

Thumbnail of the uploaded file named F3D5F24C-439B-4685-847B-3F1AB45897BA.jpeg

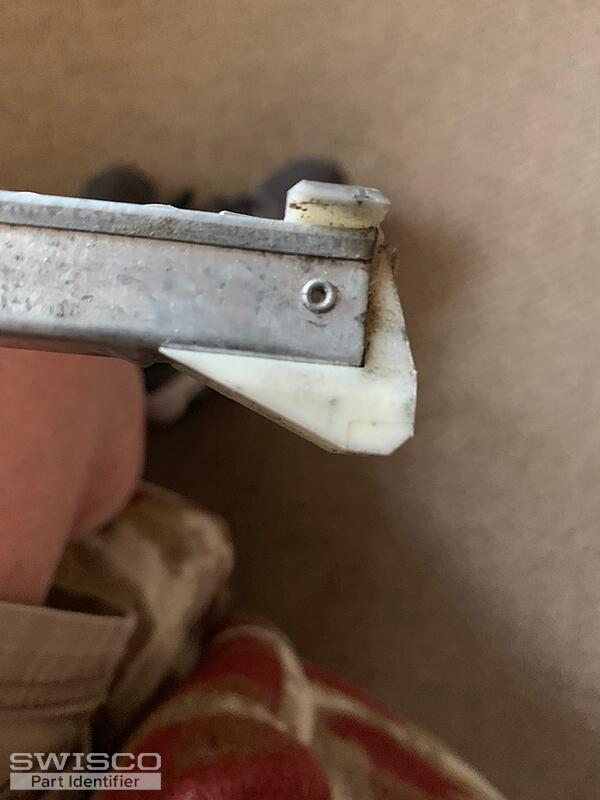

Thumbnail of the uploaded file named 97BFE68C-FBFE-4F87-86AC-781F1F934500.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 29, 2022

Hello!

It appears you have either our S380-28 or S385-28 channel balance. The Series 380 comes attached with a 1" deep shoe, while the Series 385 comes attached with a 1-3/32" shoe. Double check your bottom shoe depth and see which one matches up best. You will also need the 2740 strength option, based on your 27-4 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
28" Series 380 Channel Balance
28" Series 380 Channel Balance
S380-28
$10.97
28" Series 385 Channel Balance
28" Series 385 Channel Balance
S385-28
$10.97
