27-4 ES Caldwell sash balance needs replacing

Question

Hello!

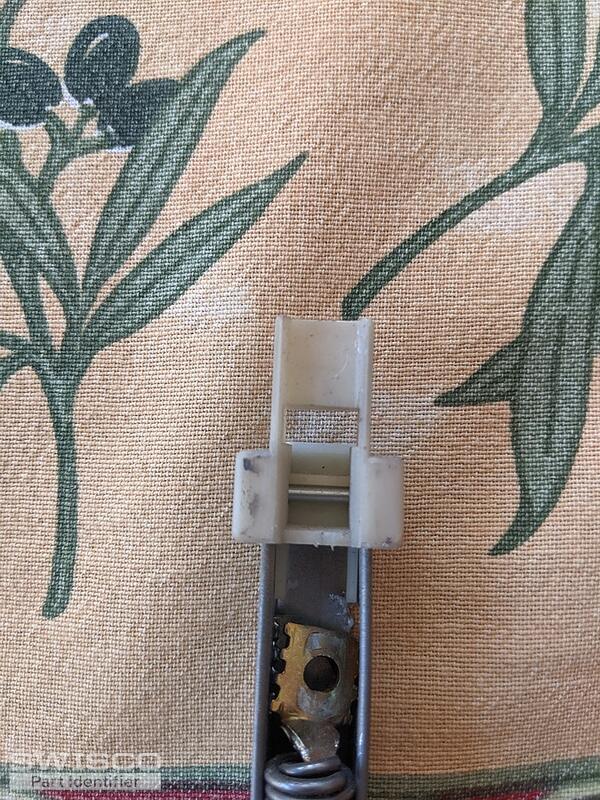

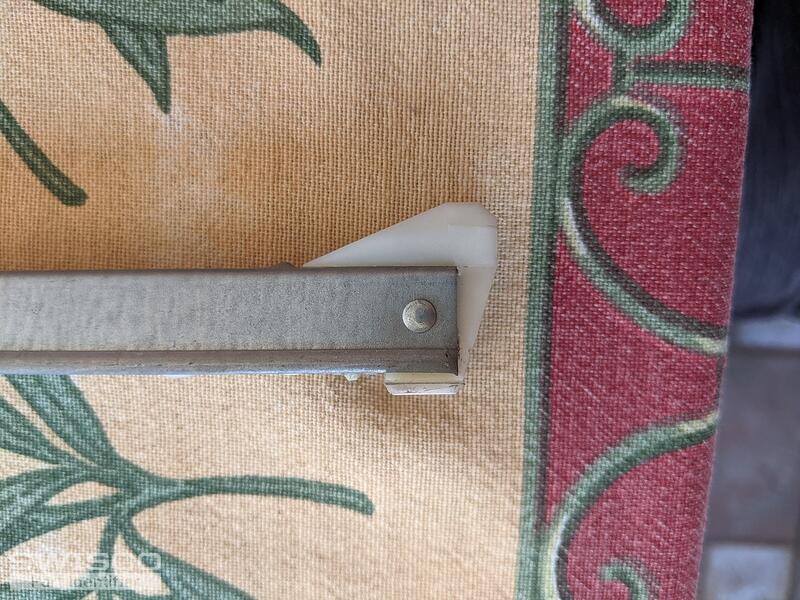

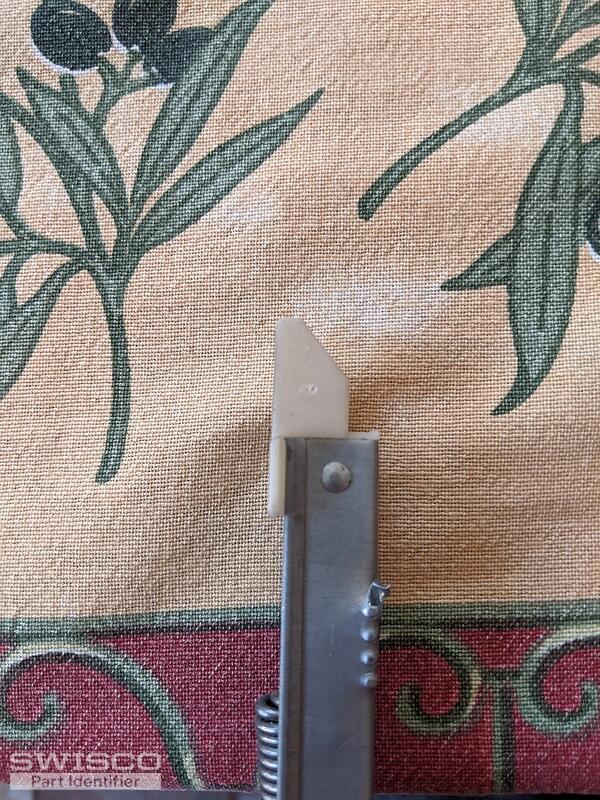

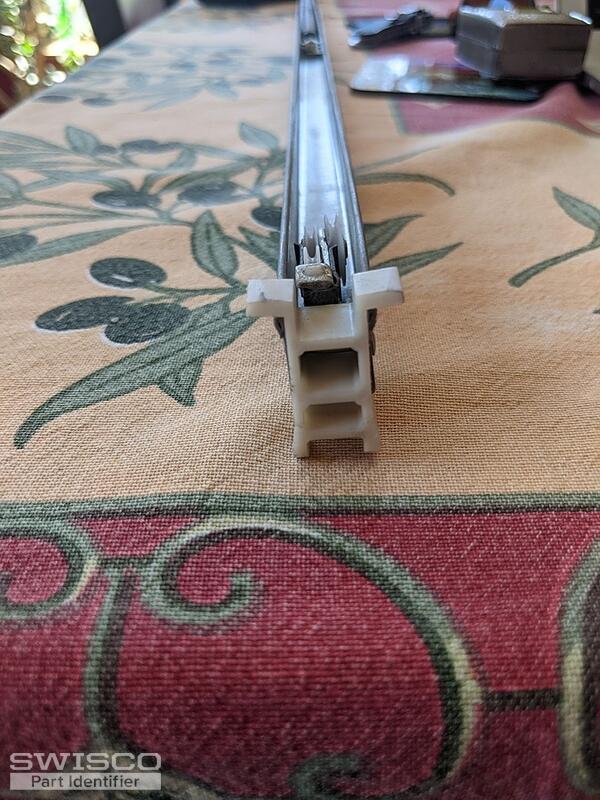

I need to replace the sash balances based on the dimensions below. Please see photos of the nylon footings for reference.

Length: 28"
Width: 1/2"

Thank you!

Emily · Accepted Answer

Hi there!

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2740.

If you have any further questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
