27" Single Hung Channel Balance

Quick Learner from California

Aug 6, 2019 12:05 pm

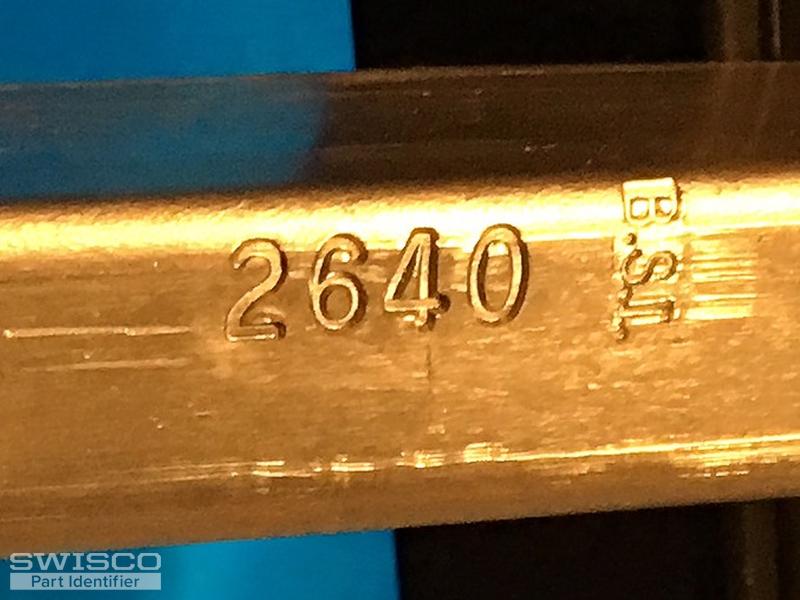

Marked on the side is B.S.I 2640 (shown in uploaded photos). I do not see any brand on these black aluminum single hung windows.
Thank you,
Cliff
P.S. I know my phone rotated the uploaded photos, if you cannot rotate them, let me know.

4 user uploaded images

3 Replies

Quick Learner from California

Aug 7, 2019 1:39 pm

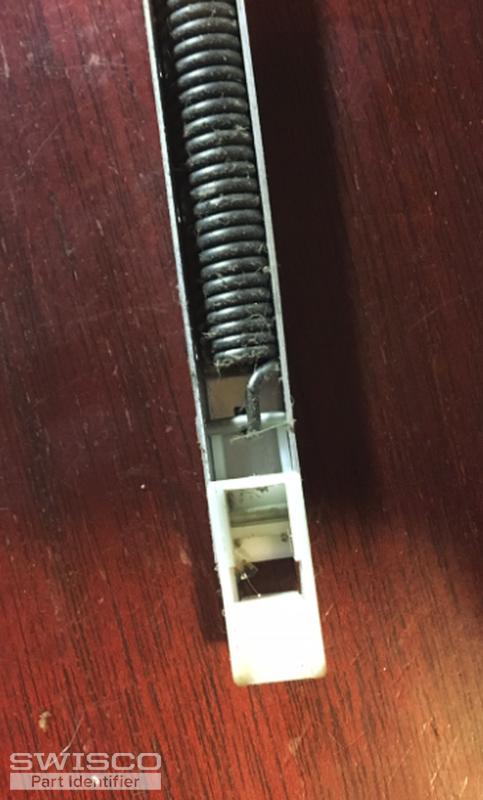

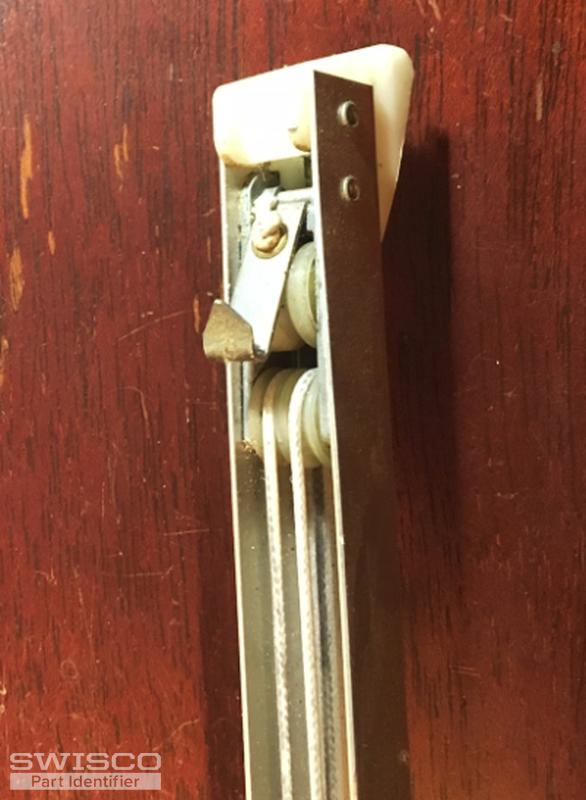

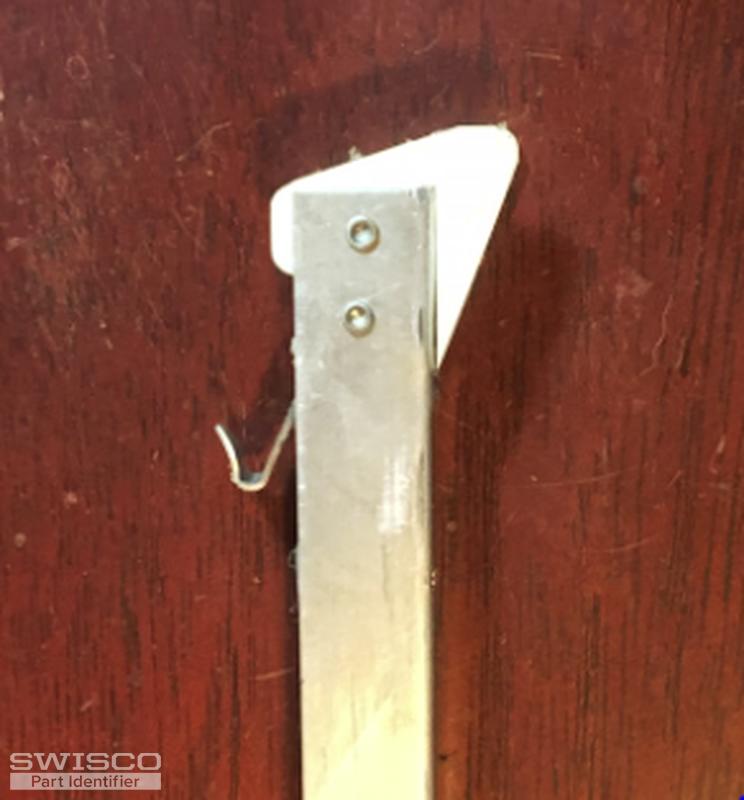

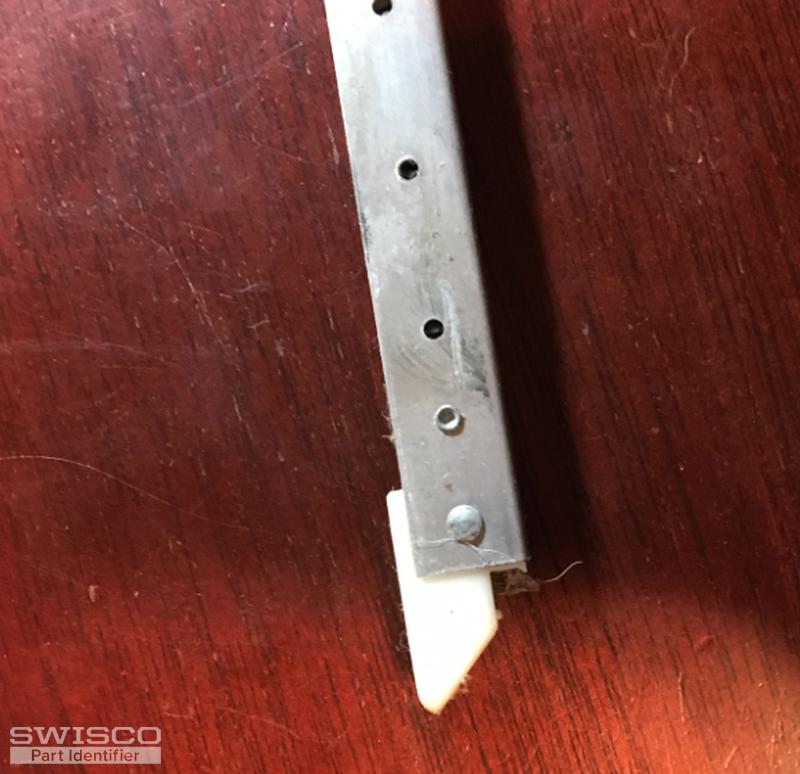

As requested, I have uploaded photos of each end of a complete channel balance for identification of replacements.

4 user uploaded images

Paul from SWISCO

Aug 11, 2019 10:58 am

Your balance looks almost exact to our S351-27 and S390-27. The difference between these two balances lies within the bottom balance shoe. You will need to measure the depth of your bottom balance shoe and compare it to each balance to determine which balance will work. Whichever one chosen will use the 2640 option.
