27" Series 351 Channel Balance

Product Code: S351-27

27" Series 351 Channel Balance

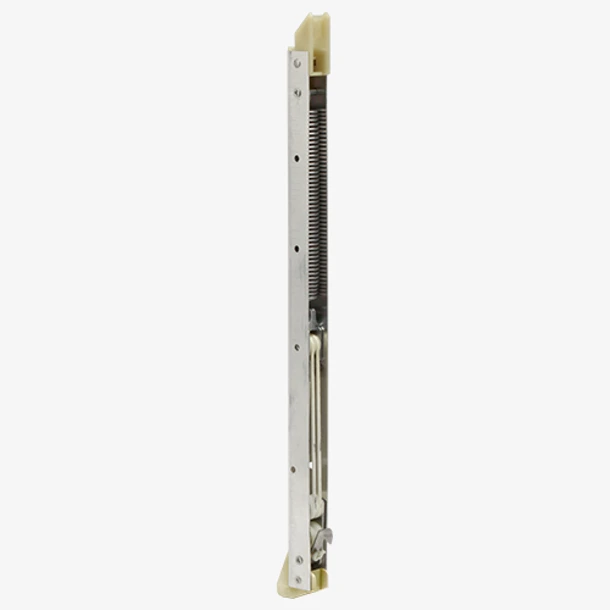

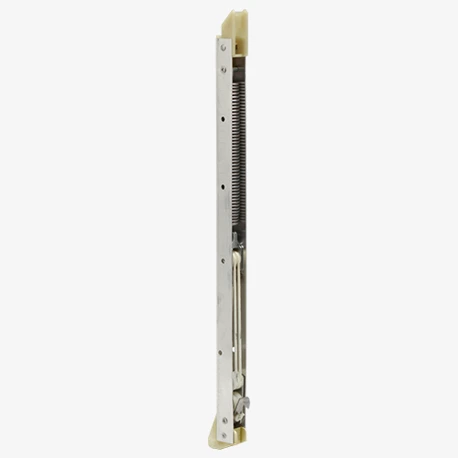

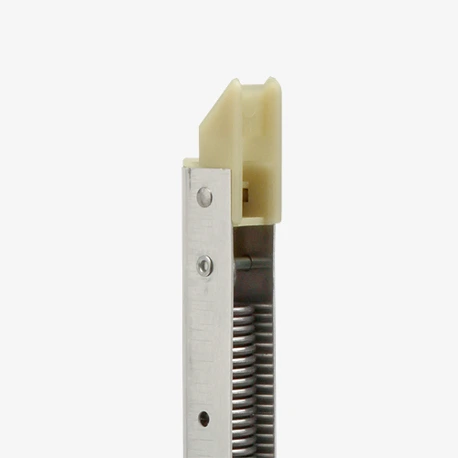

Main product image of the S351-27 27" Series 351 Channel Balance
Measurements of 19-002 top balance shoe.

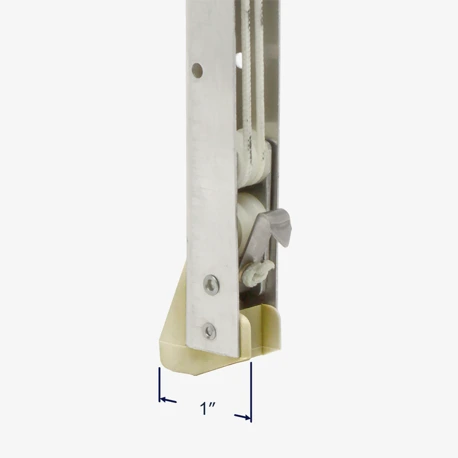

Measurements of 15-002 bottom shoe.
How to Identify Replacement Channel Balances
How to Replace a Non-Tilt Channel Balance
How to Repair a Jammed Window
$10.05/each
Quantity Price
1-11 $10.05
12-49 $9.04
50-99 $8.54
100-249 $8.04
250+ $7.54
Please Note: Bulk pricing applies only to purchases of the same option
Option:
2610
2620
2630
2640
2650
add $0.75
2660
add $1.25
2665
add $2.25
2670
add $3.45
Product Description
This is a Series 351 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

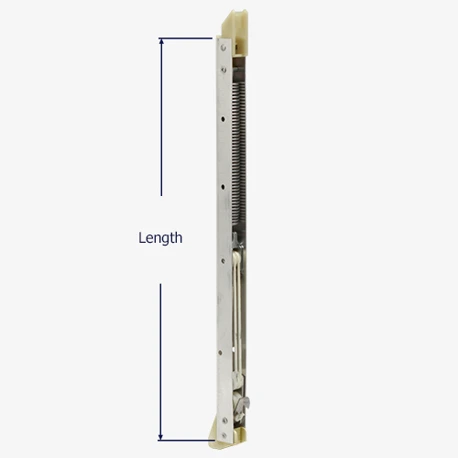

  • This balance has a 27" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-002 top and 15-002 (1" deep) bottom fittings and will be ready to install out of the box.

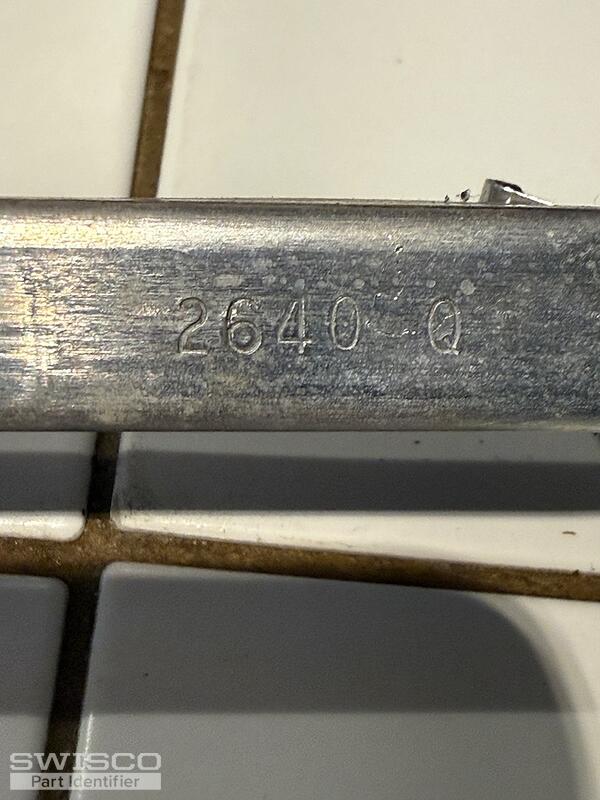

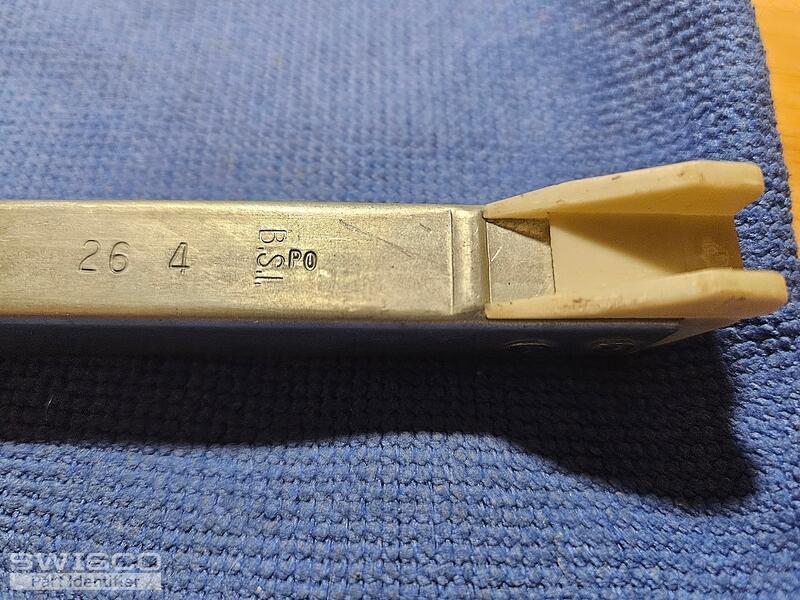

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.

    • Stamp Option Sash Weight Range
    2610 5 to 9 lbs
    2620 9 to 13 lbs
    2630 13 to 19 lbs
    2640 19 to 26 lbs
    2650 26 to 30 lbs
    2660 30 to 33 lbs
    2665 33 to 36 lbs
    2670 36 to 39 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Guides
Customer Questions & Answers
Discussion # Of Replies Last Post Date
1/2 " non-tilt channel balanceThis discussion includes image(s). 3 Oct 4, 2021

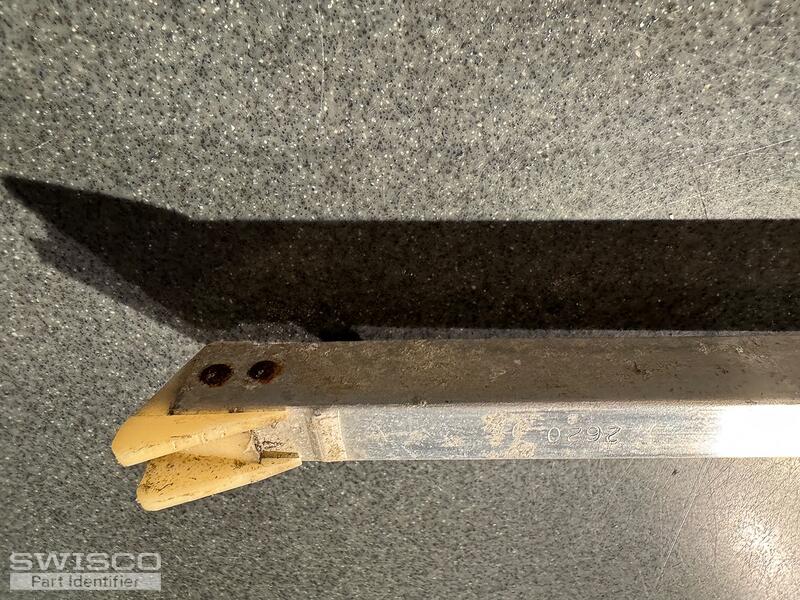

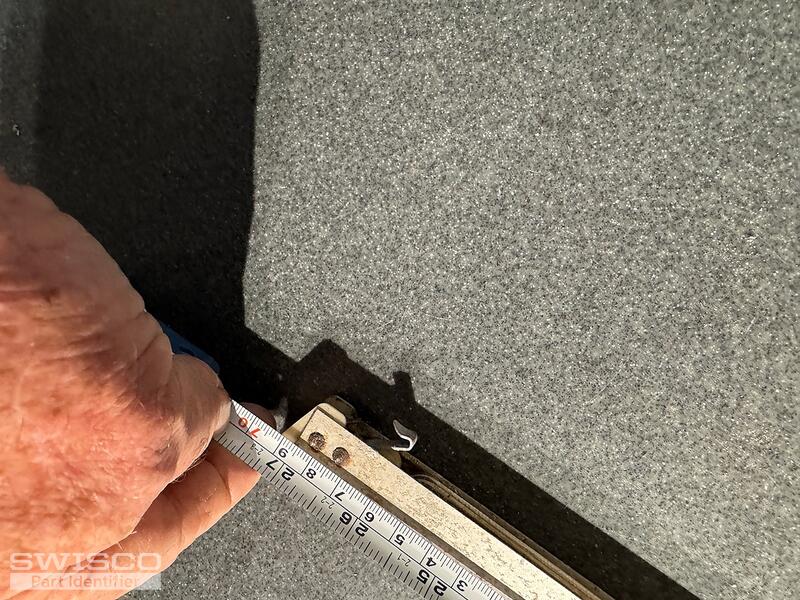

27" x 1/2" Balance, 26 3 JO CaldwellThis discussion includes image(s). 2 Aug 12, 2021

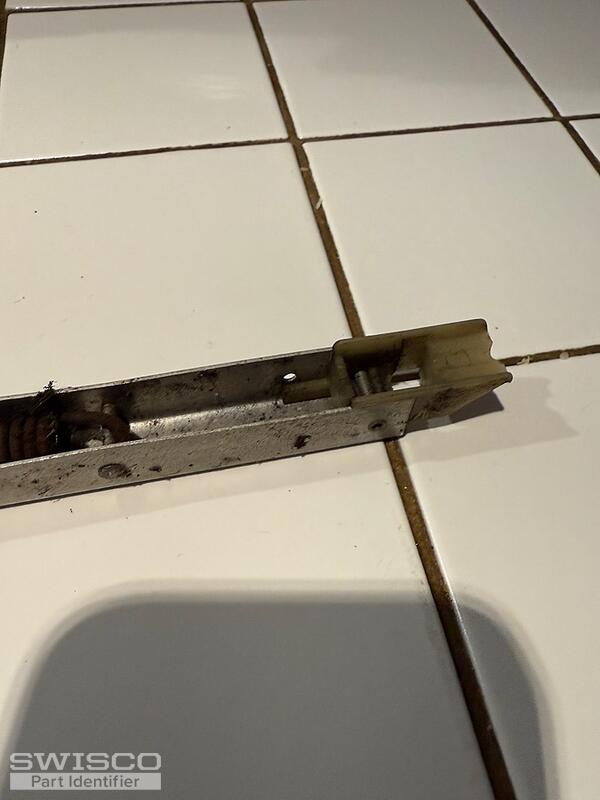

Channel BalanceThis discussion includes image(s). 4 Aug 3, 2021
Block and tackleThis discussion includes image(s). 2 Aug 3, 2021
Searching for 2620 BSI NHThis discussion includes image(s). 2 Jun 12, 2021

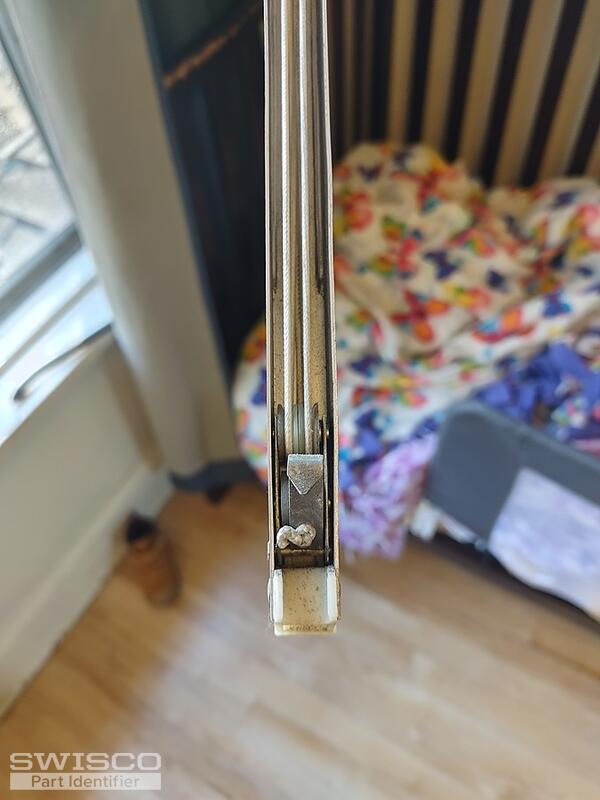

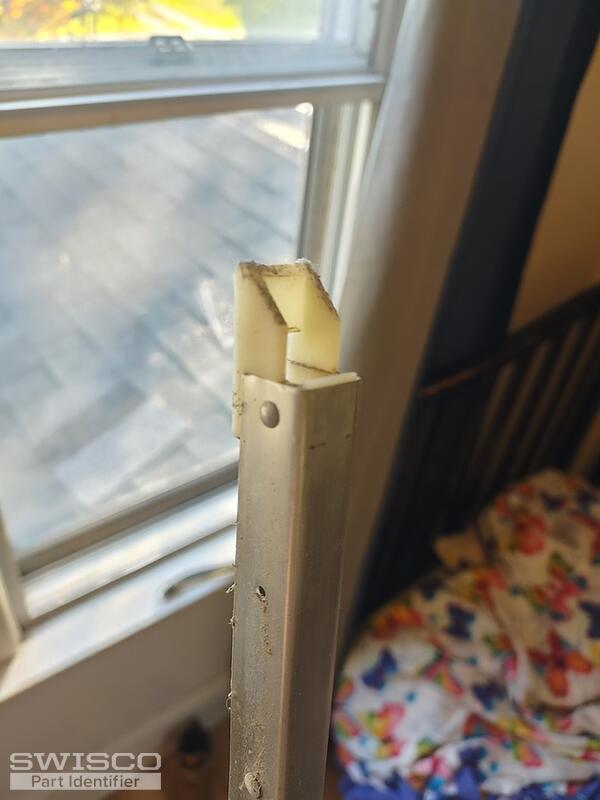

Please confirm this channel balance before I buyThis discussion includes image(s). 4 May 6, 2021

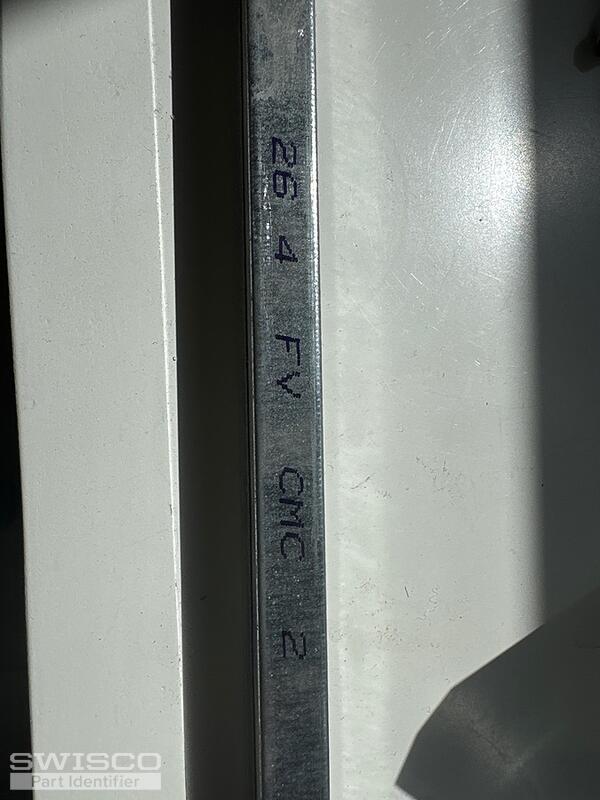

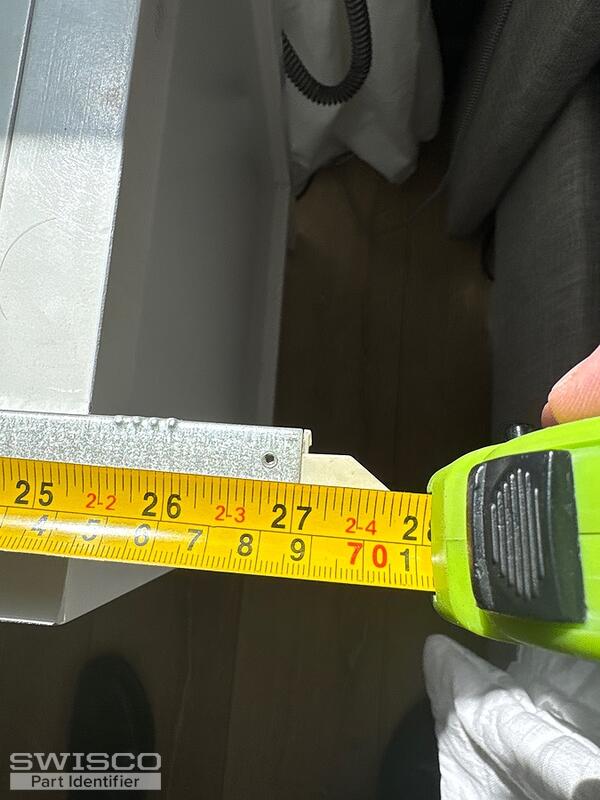

26-4 CMC 12This discussion includes image(s). 2 Apr 21, 2021
